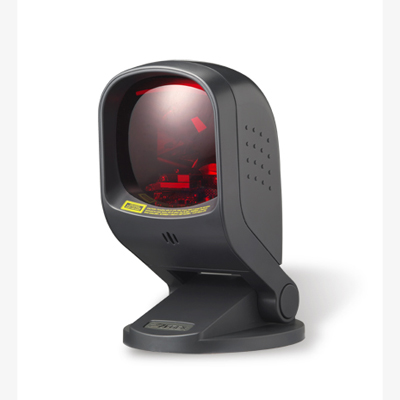

Zebex Z-6170 omni-directional barcode scanner

Overview

The Zebex Z-6170 is an aggressive omni-directional barcode scanner with outstanding scanning ability. Z-6170 features a large LED indicator giving a clear visual reading for ease of scanning. The heavy duty Z-6170 barcode scanner can be counter mounted making it ideal for scanning lots of items at high speed.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Elegant look in attractive black housing
  • Easy fixing plate to secure scanner to counter
  • Large LED gives good read indicato
  • Single-line scan mode switchable by trigger
  • 20-line omni-directional laser beam decoding ability reading up to 1400 scans per second

The Z-6170 barcode scanner has a modern and low profile appearance, it is equipped with an adjustable tone and volume button which works well in either quiet or noisy environments. The Z-6170 has a contoured shape making it possible to use as handheld when required.

Elegant and functional, the Z-6170 leads the trend to the next aesthetical level. Its distinctive white/black color fits perfectly into places like bookstore, boutique and anywhere delicacy is a must. With uniquely designed single-laser scan engine, the scanner has 20-line omnidirectional laser beams reading at 1,400 scans per second, and upgraded CPU for decoding most popular 1D barcodes at an unbeatable performance.

• Single-line trigger button
• Tiltable stand with hinge shaft design
• Advance decoding design for fast and accurate scanning
• Unique plastic suction cup for easy field installation
• Honored by Taiwan Excellence 2010

OPERATIONAL
Light Spource 650 nm visible laser diode (VLD)
Depth of Field 4 mil: 10 – 50 mm, 5 mil: 0 – 90 mm, 7.5 mil: 0 – 170 mm, 10 mil: 0 – 220 mm, 13 mil: 0 – 240 mm, 20 mil: 0 – 300 mm, Note: DOF may vary depending on environment condition and barcode quality.
Scan Lines 20
Scan Pattern 5 directions of scan field
Scan Rate 1, 400 scans per second (omnidirectional); 70 scans per second (single-line)
Print Contrast 30% @ UPC/EAN 100%
Indicator Two-color LED (blue, red)
Programmable Operation Programmable tone & beep time
System Interface Keyboard, RS-232, HID USB, USB Virtual COM, OPOS, JPOS
PHYSICAL CHARACTERISTICS
Dimensions H x W x L 165.1 x 100.0 x 118.0 mm
Weight (g) 400 g (without cable)
Cable Standard 2M straight
POWER
Input Voltage 5 VDC ± 10%
Power Consumption 1.35 watts
Operating Current 270 mA (typical); 350 mA (peak)
REGULATORY
Laser Class CDRH Class IIa; IEC 60825-1: Class 1
EMC CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
ENVIRONMENT & SAFETY
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity 5% to 90% RH (no dewing allowed)
Light Level Up to 4,500 Lux (fluorescence)
Drop Durability Designed to withstand 1M drops
DECODING CAPABILITY
1D Barcode UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded
