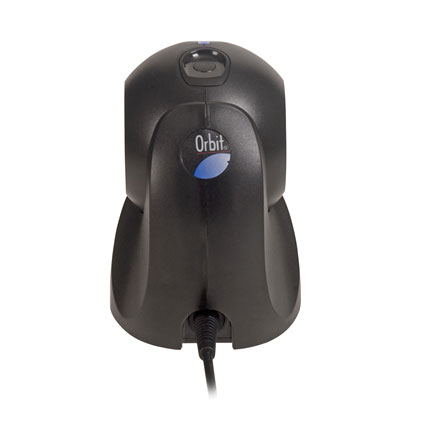

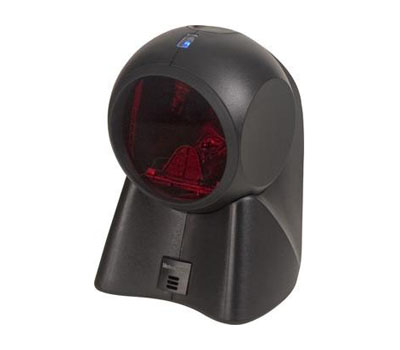

Honeywell MS-7120 Orbit Scanner

Overview

If you’re in need of an affordable, yet aggressive omnidirectional scanning solution that’s aesthetically pleasing to boot, the Honeywell Orbit series is tough to beat. Orbit series scanners maximize your customers’ satisfaction and employees’ efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1,120 scans per second.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 20 Scan Line Omnidirectional Patter
  • USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation
  • Adjustable Scan Head
  • Automatic Scanning Operation

The Orbit series features an award-winning design that’s compact, lightweight and rugged. Its shape enables handheld scanning of large, bulky items. And for added flexibility, the scanning head can be tilted within a 30 degree range to accommodate objects of various sizes and shapes.

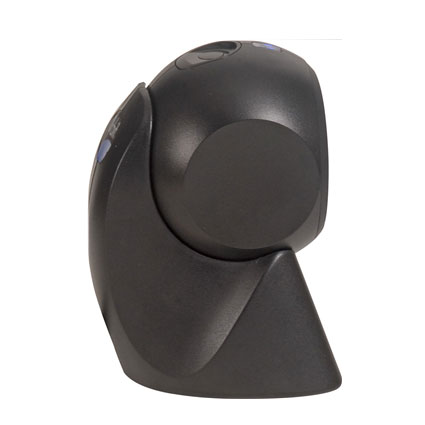

Adjustable Scan Head

Tilt the scanner up to 30 degrees for targeted scanning or larger products.

Aggressive Scan Performance

With a 20 scan line omnidirectional pattern, Orbit scanners provides snappy scanning performance – a nice productivity booster in hand presentation applications.

Sweet Spot Scanning

Engineered “sweet spot” optimizes scan performance and first-pass read rates.

Automatic Scanning Operation

Simply present a barcode to Orbit and the unit scans in a single pass.

Specification
Dimensions (LxWxH) 105 mm x 102 mm x 150 mm (4.1˝ x 4.0˝ x 5.9˝)
Weight 400 g (14.1 oz)
Input Voltage 5 VDC ± 0.25 V Operating Power 900 mW (180 mA @ 5 V)
Standby Power 850 mW (170mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.2 m (4´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Pattern Omnidirectional: 5 fields of 4 parallel lines; button activated single line (7180)
Scan Speed Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second (7180)
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 3 year factory warranty
