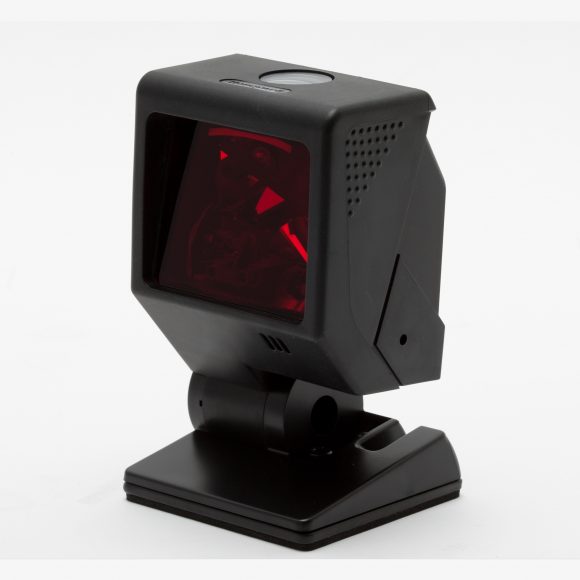

Honeywell QuantumT 3580 Compact Hands-Free Scanner


The Honeywell QuantumT 3580 barcode scanner provides retailers with a great omni-directional scan performance and optional single-line scanning in a convenient size. The small footprint and numerous stand options for the QuantumT 3580 scanner minimize required counter space, increasing available room for merchandise and advertisement displays.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Omni-directional and Single-line mode enabled by a switch
  • 1,650 scans per second
  • Sleep mode with IR wake-up
  • Small footprint
  • Optional stands to customise the height of the scanner
  • Configurable depth of field
  • Extremely compact

Ideal for presentation scanning however, end users can customise the scan pattern and operate the scanner either hands-free or hand-held. The scanners rugged, rubber housing provides the necessary protection against daily operational use.

The Honeywell QuantumT 3580 with an industry-leading 1,650 scans per second provides aggressive, first-pass scanning, reducing the time it takes to scan products, increasing customer satisfaction and employee efficiency. The single-line scanning feature reduces unwanted scans on menu-style codes. Hand-held operation ensures easy scanning of larger, bulkier products that cannot be easily presented to stationary scanners.

The Honeywell QuantumT 3580 scanner can be mounted to a wall or counter top, on top one of four optional stands or free standing for easy handheld use.

Scan Pattern Omnidirectional: 5 fields of 4 parallel lines; Button activated single line
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 3 year factory warranty
Operating Temperature -20°C to 40°C (-4°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5 ft) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Input Voltage 5 VDC ± 0.25 V
Operating Power 1.4 W (275 mA @ 5 V)
Standby Power 1.2 W (230 mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
Dimensions (LxWxH) 66 mm x 67 mm x 108 mm (2.6 in x 2.7 in x 4.3 in)
Weight 170 g (6 oz)
