Overview

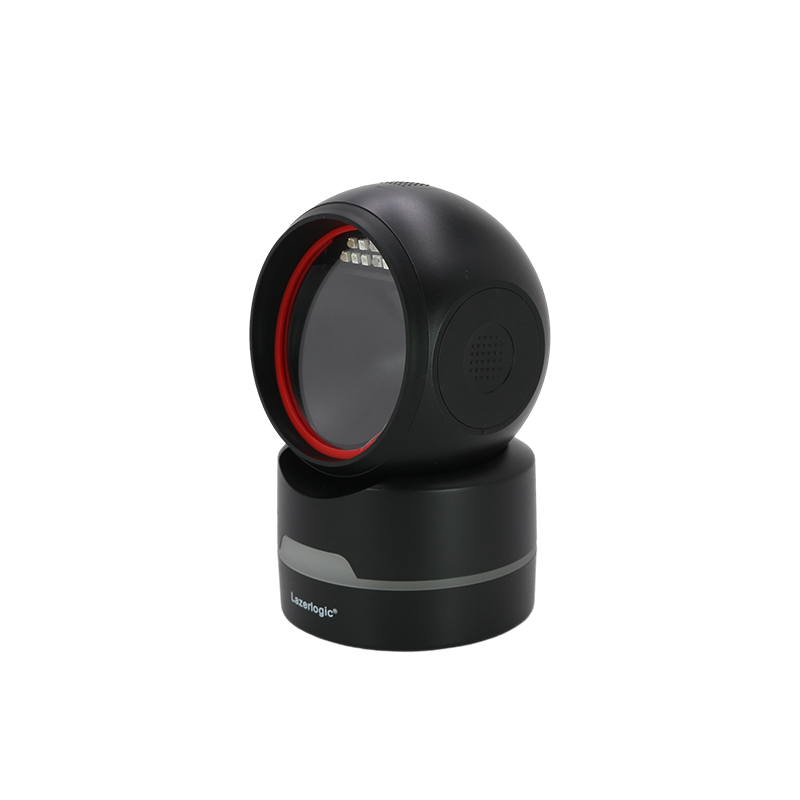

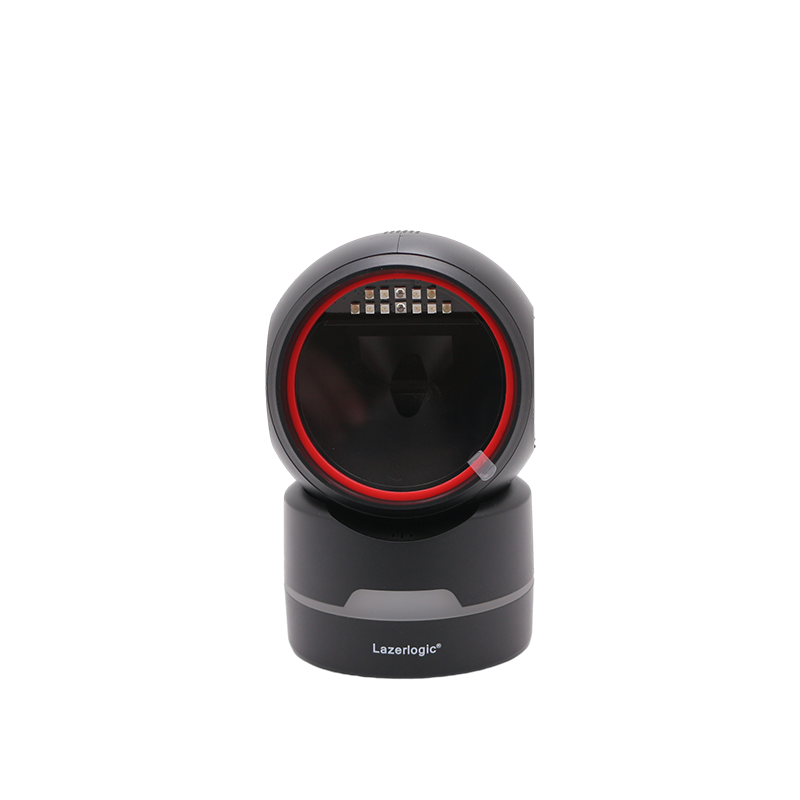

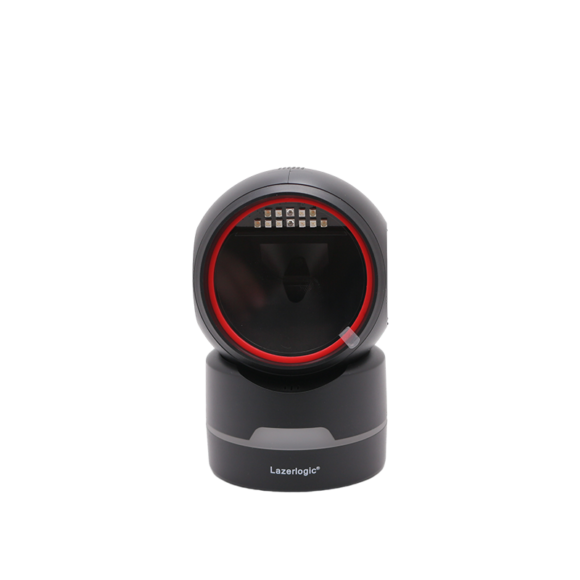

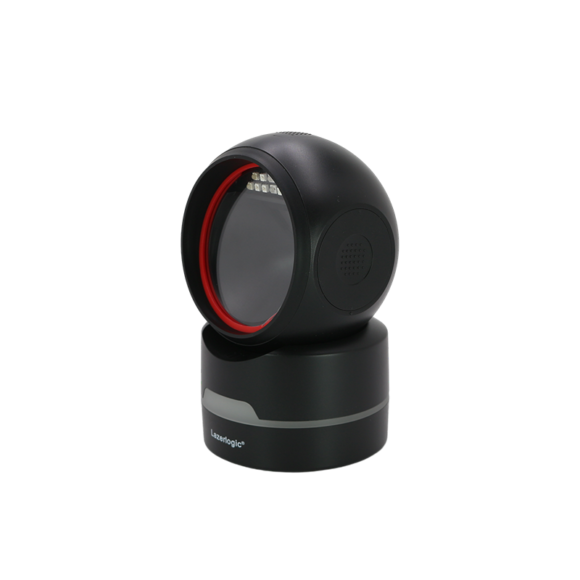

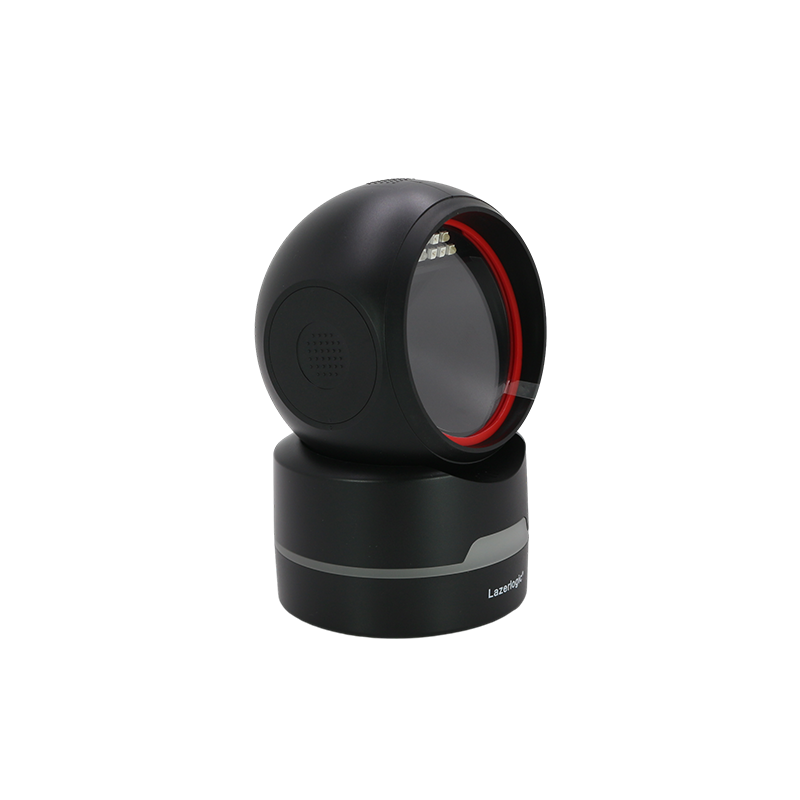

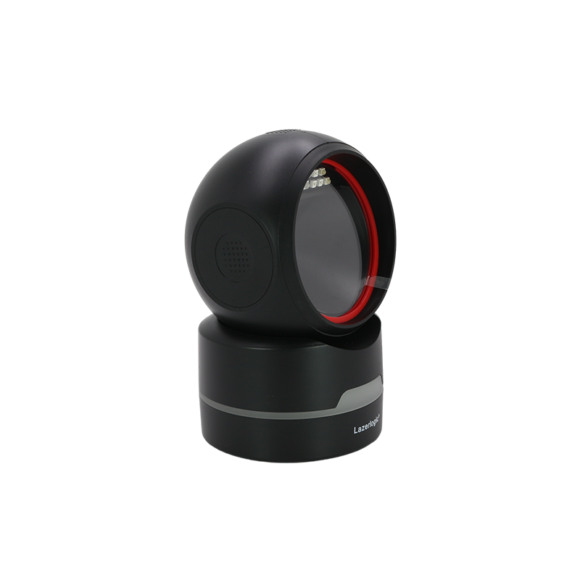

The Lazerlogic LL-8620 2D is a Hands-Free Area-Imaging Scanner, designed to be cost-effective while still maintaining great performance alongside a modern design. With the LL-8620's efficiency in quickly scanning both 1D and 2D barcodes, it makes the perfect scanning solution for any environment.
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account| Performance | |
| Image Sensor | CMOS 640*480 |
| Light Source | Red LED + Infrared LED |
| Scan Angle | Skew±60° Pitch±60° Roll 360° |
| FOV | D=56° H =42° V =33° |
| Resolution | ≥3.9mil |
| Minimum Print Contrast | ≥20% |
| Decode Capacity | |
| 1D | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-8, EAN-13, GS1 DataBar, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Straight 2 of 5 IATA, MSI Plessey |
| 2D | Aztec Code, HANXIN, Maxicode, Codablock F, Data Matrix Code ( DPM), PDF417, Micro PDF417, QR Code, Micro QR Code, DOT Code, Grid Matrix Code |
| Typical Decode Range | |
| Code39 (5mil) | 0mm ~60mm / Barcode Size: 25mm*10mm |
| EAN-13 (13mil) | 0mm ~230mm / Barcode Size: 31mm*17mm |
| QR (15mil) | 0mm ~160mm / Barcode Size: 8mm*8mm |
| Physical | |
| Interface | USB / RS232 |
| Voltage | 5 VDC +/- 5% |
| Current (Typical) | 270mA |
| Current (Max) | 320mA |
| Standby Current | 170mA |
| Power Consumption (Typical) | 1350mW |
| Dimension | 88(W) x 86 (D) x 139(H) mm |
| Colour | Black / White |
| Net Weight (Approx.) | 260g |
| Country Keyboard Layout | Multiple Country Keyboard Layout |
| Indicator | LED, Beeper |
| Environment | |
| Operating Temperature | 0 ℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (Non-Condensing) |
| Drop | withstands multiple 1.2m drops to concrete. |
| IP Rating | IP50 |
| ESD | EN61000-4-2, ±15KV Air Discharge、± 8KV contact Discharge |
| Ambient Light | 0 ~100,000LUX |
| LED Safety | IEC 62471 |
