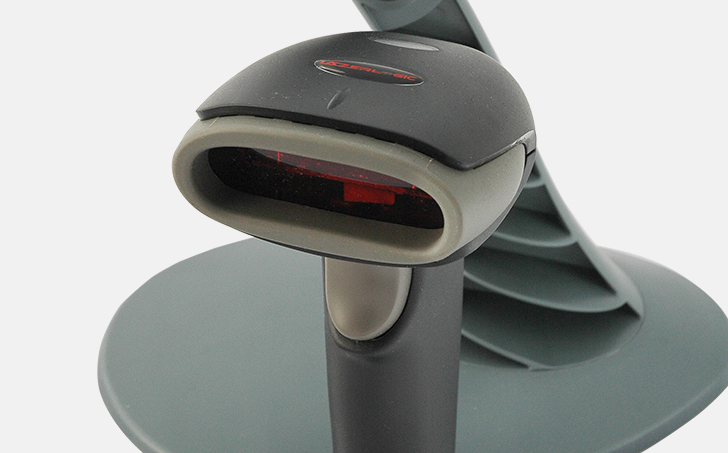

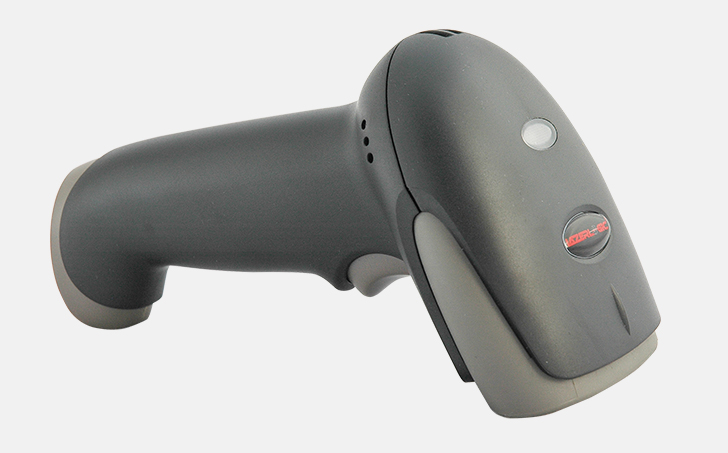

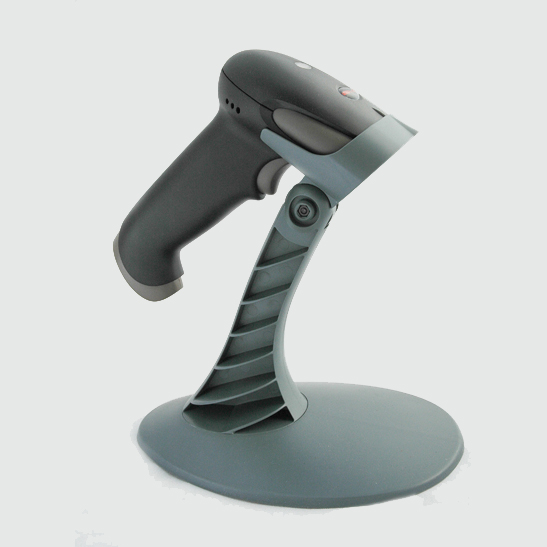

Lazerlogic LL-1020 1D Laser Handheld Barcode Scanner


Lazerlogic’s LL-1000 series of hand–held barcode scanners delivers aggressive high performance single line laser data capture for all 1D Barcode Symbology

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Single line laser
  • Bi-directional scanning
  • Hands Free/Trigger or Continuous read modes
  • USB

Perfectly formed in design the IP54 rated LL-1000 series allows superior data capture ,ease of use and reliability for all applications and environments utilising either trigger/hands-free or continuous read modes.

Performance Characteristics
Scan Pattern Single line laser
Scan Method Bi-directional scanning
Scan Rate 120 scans per second
Resolution PCS 0.9: 0.101mm / 4 mil, Min. PCS value: 0.35
Indicators One LED (blue)
Non-visual Buzzer
System Interfaces RS-232, USB (Ver. 1.1 HID Keyboard), RS485 industrial port
Trigger Mode Manual, continuous read, multi-read, auto-trigger, serial software trigger
Reading Pitch Angle -50 to 0˚, 0 to +50˚ (pitch), -65 to 0˚, 0 to + 65˚ (skew), -35 to 0˚, 0 to +35˚ (tilt)
Curvature R>15mm (EAN8), R>20mm (EAN13)
Dimensions 168x70x95mm (DxWxH)
Weight 120g / 4.24 oz (excluding cable)
Case Black, PC White
Voltage Requirement 5V± 10%
Current Consumption 85mA (typical use), max. 150mA
Operating Temp. 20˚ - 65˚C (-4˚F - 149˚F
Storage Temp. -30˚ - 70˚C (-22˚F - 158˚F)
Humidity 20-85% (operation), 20-90% (storage)
Ambient Light Immunity Fluorescent 3000 lx max, Direct sun 50,000 lx max, Incandescent 3000 lx max
Drop Test 1.5m/5ft drop onto concrete surface
Protection Rate IP 54
