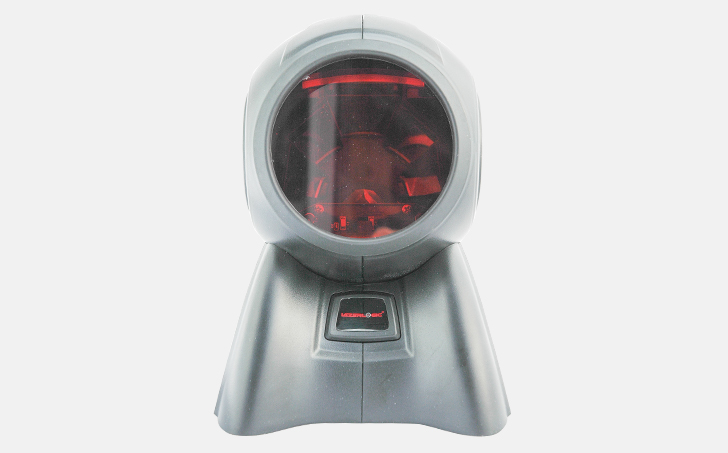

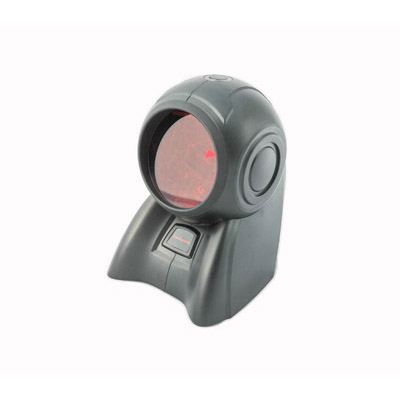

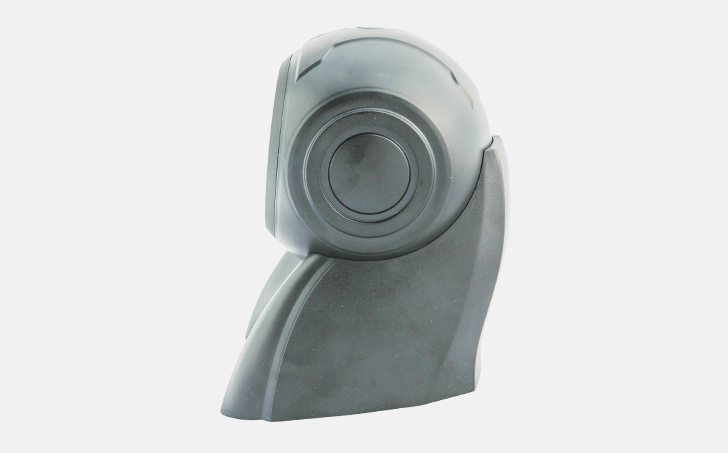

Lazerlogic LL-2828 Omni-directional laser barcode scanner


Compact and rugged the Lazerlogic LL-2828 offers innovative technology and design whist being an affordable solution for convenience retail applications, small supermarkets and all retail environments.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Omni Directional
  • USB
  • 20 line high speed decoding
  • Can withstand 1.2M free fall

Lazerlogic’s LL-2828 introduces the very latest in Omni Directional Barcode Technologies. Utilising new patented dual core decoding design and  technology, The LL-2828 provides market leading performance with an aggressive 1380 Lines per second scan rate ensuring superior first time data capture.

Performance Characteristics
Scan Pattern Omni-directional rastering
Depth of Field 0-206mm (UPC/EAN)
Scan Lines 20 line high speed decoding
Scan Patterns 5 directions of scan field
Scan Rate 1,200 scans per sec. (omnidirectional)
Resolution 5mil, Min. PCS value: 90%
Idenitifiable Contrast 30% UPC/EAN 100%
Indicators Two-color LED (blue, red)
Beeper Operation Programmable tone & volume
System Interfaces Keyboard, RS-232, HID USB
Operating Temp. 0˚ - 40˚C (32˚F - 104˚F)
Storage Temp. -20˚ - 60˚C (-4˚F - 140˚F)
Humidity 5% - 90% (no dewing allowed)
Light Level Up to 4,000 Lux (fluorescence)
Drop Test 1m / 33ft drop onto concrete surface
Voltage Requirement 5V± 10%
Current Consumption 180mA@5V
Laser Class CDRH Class II, IEC 60825-1:Class 2
EMC CE En55022 B, FCC Part 15 Class B, VCCI, BSMI
Dimensions 180x140x102mm (DxWxH)
Weight 385g
Cable Length 2m
