Overview

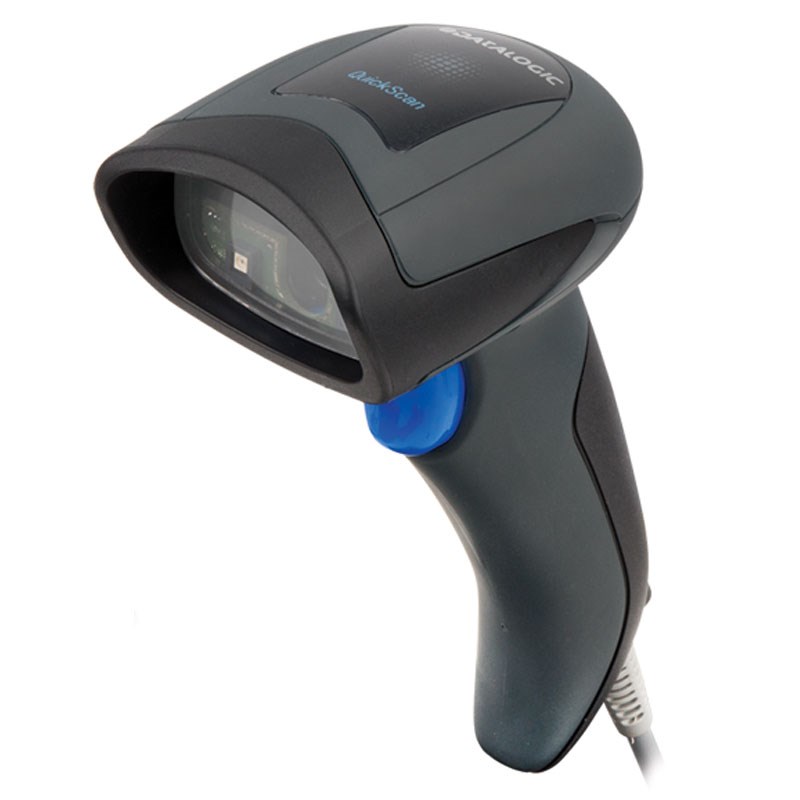

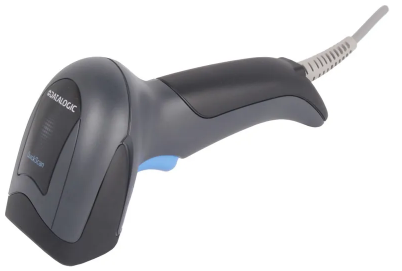

The QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. The QD2400 2D imager also features an elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogics well-known durability.
Download Product SpecificationApply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My accountThe lightweight QuickScan I QD2400 is an ideal option for medium to high volume retail scanning.
Standard Features & Advantages:
| Decoding Capability | |
| 1D / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Codes | Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Postal Codes | Australian Post; British Post; Canadian Post; China Post; Japanese Post; IMB; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| Stacked Codes | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Electrical | |
| Current | Operating (Typical): 400 mA @ 5 VDC Standby/Idle (Typical): 50 mA @ 5 VDC |
| Input Voltage | 4.5 - 14 VDC +/- 10% |
| Environmental | |
| Ambient Light | Up to 86,000 lux |
| Drop Resistance | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| ESD Protection (Air Discharge) | 16 kV |
| Humidity (Non-Condensing) | 0 - 95% |
| Particulate and Water Sealing | IP42 |
| Temperature | Operating: 0 to 50 °C / 32 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces | |
| Interfaces | Keyboard Wedge / OEM (IBM) USB / RS-232 / USB |
| Physical Characteristics | |
| Colours Available | Black, White |
| Dimensions | 16.3 x 9.1 x 4.1 cm |
| Weight | 145 g |
| Reading Performance | |
| Imager Sensor | Wide VGA: 752 x 480 pixels |
| Light Source | Aiming: 2 Blue LED’s; Illumination: Red LED 610 - 650 nm |
| Motion Tolerance | 25 IPS |
| Print Contrast Ratio (Minimum) | 25% |
| Reading Angle | Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 60° |
| Reading Indicators | Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution (Maximum) | 0.102 mm / 4 mils (Linear Codes) |
| Reading Ranges | |
| Typical Depth of Field | Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39: 5 mils: 0.5 to 15.0 cm / 0.2 to 5.9 in EAN/UPCA: 13 mils: 0.5 to 35.0 cm / 0.2 to 13.8 in PDF417: 6.6 mils: 1.0 to 13.0 cm / 0.4 to 5.1 in Data Matrix: 10 mils: 1.0 to 13.0 cm / 0.4 to 5.1 in |
