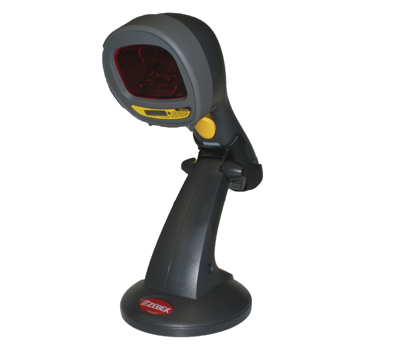

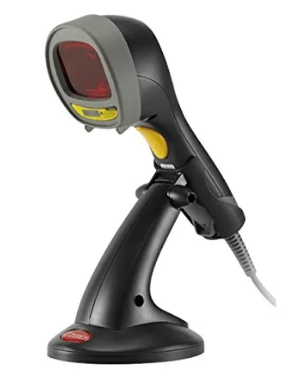

Zebex Z-3060 omni-directional barcode scanner


The Zebex Z-3060 omni-directional barcode scanner can fulfill all kinds of operating needs when scanning small or large bulky items, on the counter or off the counter, and by hand-held or hands-free. The exclusively designed adjustable stand benefits any kind of application.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Change to single-line scan mode switch by button
  • Powerful 20-line scans pattern yields
  • Omni-directional operates 1400 scans per second
  • Single-line operates 74 scans per second
  • Aggressive scanning performance
  • Handheld barcode scanner on an adjustable stand
  • Programmable tone and volume

The exclusively designed adjustable stand benefits any kind of application. The scanner has a built-in high speed decoder and instantly decodes any popular 1D symbology and optional in decoding of RSS group barcodes.

Z-3060 barcode scanner is equipped with multi-interface communication, which supports RS-232, keyboard and USB interface  This scanner is a very ergonomic, rugged design.

With stylish exterior and great flexibility, the Z-3060 is versatile in all applications. Dreamed of having omnidirectional and single-line scanning capabilities in one scanner and yet not compromising the size? The answer is Z-3060, a handheld scanner on an adjustable stand. Whenever scanning small items or large bulky items, on the counter or off the counter, and by handheld or hands-free, the Z-3060 fulfills all kinds of operating needs.

• Support both omnidirectional and single-line scanning
• Aggressive scanning performance
• Proprietary Z-SCAN+ technology
• Honored by red dot design award 2007

Light Source 650 nm visible laser diode (VLD)
Depth of Field 5 mil: 30 – 80 mm, 7.5 mil: 0 – 150 mm, 10 mil: 0 – 180 mm, 13 mil: 0 – 200 mm, 20 mil: 0 – 280 mm. Note: DOF may vary depending on environment condition and barcode quality.
Scan Lines 20
Scan Pattern 5 directions of scan field
Scan Rate 1, 400 scans per second (omnidirectional); 70 scans per second (single-line)
Print Contrast 30% @ UPC/EAN 100%
Indicator Three-color LED (blue, red & white)
Programmable Operation Programmable tone & beep time
System Interface Keyboard, RS-232, HID USB, wand
Dimensions H x W x L 200.3 x 75.2 x 68.4 mm (device only)
Weight (g) 190 g (stand excluded) 460 g (with stand)
Cable Standard 2M straight
Input Voltage 5 VDC ± 10%
Power Consumption 1.0 watts
Operating Current 200 mA typical
Laser Class CDRH Class IIa; IEC 60825 Class 2
EMC CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
Operating Temperature 0 °C to 40 °C (32°F – 104°F)
Storage Temperature -20°C to 60°C (-4°F – 140°F)
Humidity 5% – 95% RH (no dewing allowed)
Light Level Up to 4, 500 Lux (fluorescence)
Drop Durability Designed to withstand 1.5M drops
