Key Features
- 2D Scanner
- Snappy omnidirectional reading
- Intuitive aiming system
- Image capture

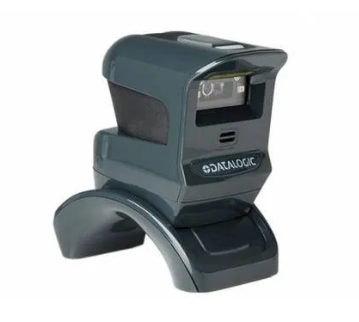

Datalogic Gryphon GPS4400 2D Scanner
Overview
The GPS4400 area imager is a full 2D presentation scanner in a compact and stylish body. This reader’s compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs and computer display screens, the GPS4400 presentation scanner also features high motion tolerance, snappy reading and offers excellent performance on decoding poor or damaged bar codes.
Download Product SpecificationRegister to get started
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account| Decoding Capability | |
| 1D / Linear Codes | Auto discriminates all standard 1D codes |
| 2D Codes | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code |
| Postal Codes | Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post |
| Stacked Codes | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Electrical | |
| Current | Operating (Typical): 175 mA; Max: 200 mA Standby/Idle (Typical): Automatic/Object Sense Modes: 105 mA Trigger/Serial On Line Modes: 55 mA |
| Input Voltage | 5 VDC (+/- 5%) |
| Environmental | |
| Ambient Light | 0 to 100,000 lux |
| Drop Resistance | Withstands repeated drops from 1.2 m / 4 ft onto a concrete surface |
| ESD Protection (Air Discharge) | 16 kV |
| Humidity (Non-Condensing) | 90% |
| Particulate and Water Sealing | IP52 |
| Temperature | Operating: 0 to 50 °C / 32 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces | |
| Interfaces | RS-232; USB: OEM USB; USB COM; USB HID Keyboard |
| Physical Characteristics | |

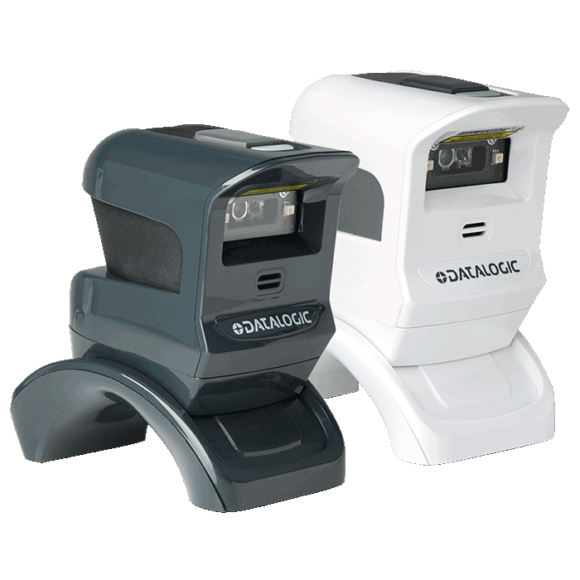

| Colors Available | Black; White |
| Dimensions | With stand: 12.1 x 10.7 x 7.3 cm / 4.8 x 4.2 x 2.9 in Without stand: 7.4 x 9.5 x 6.4 cm / 2.9 x 3.7 x 2.5 in |
| Weight | With stand: 295 g / 10.4 oz Without stand: 178 g / 6.3 oz |
| Reading Performance | |
| Field of View | Horizontal x Vertical: 40° H x 26° V |
| Image Capture | 752 x 480 pixels Graphic Formats: BMP, JPEG, TIFF Greyscale: 256, 16, 2 |
| Light Source | Aiming: 650 nm VLD Illumination: 625 nm LED |
| Print Contrast Ratio (Minimum) | 25% |
| Reading Angle | Pitch: +/- 40°; Roll (Tilt): +/- 180°; Skew (Yaw): +/- 40° |
| Reading Indicators | Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution (Maximum) | 1D / Linear Codes: 0.102 mm / 4 mils Data Matrix: 0.178 mm / 7 mils |
| Reading Ranges | |
| Typical Depth of Field | Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39: 5 mils: 2.6 to 18.8 cm / 1 to 7.4 in Code 39: 10 mils: 0 to 37.9 cm / 0 to 14.9 in Data Matrix: 10 mils: 2.3 to 14.5 cm / 0.9 to 5.7 in Data Matrix: 15 mils: 0 to 23.2 cm / 0 to 9.1 in EAN: 13 mils: 0.8 to 42.2 cm / 0.3 to 16.6 in PDF417: 10 mils: 0 to 22.4 cm / 0 to 8.8 in QR Code: 10 mils: 2.3 to 14.3 cm / 0.9 to 5.6 in |
