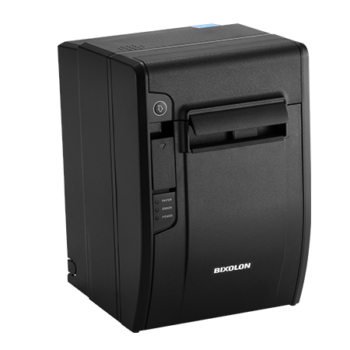

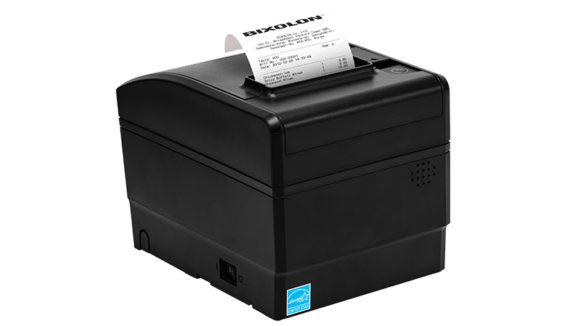

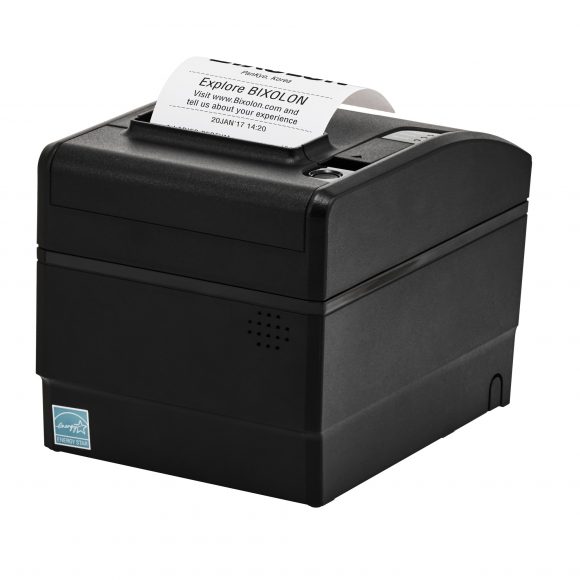

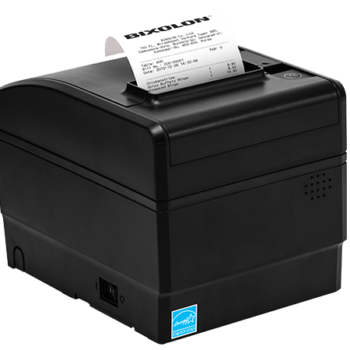

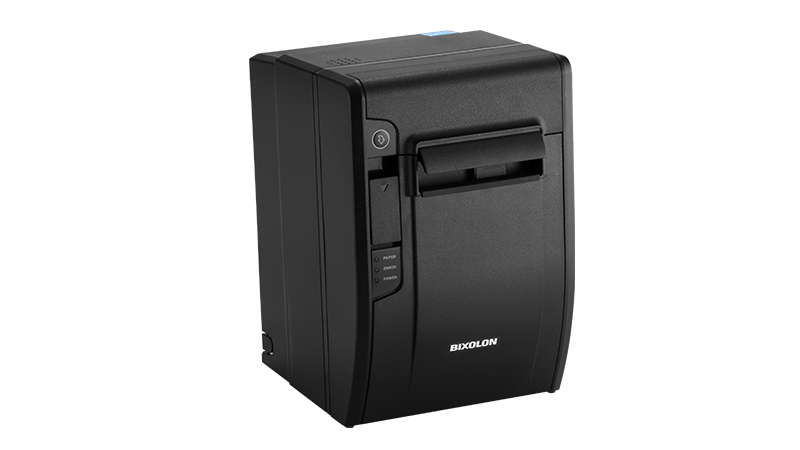

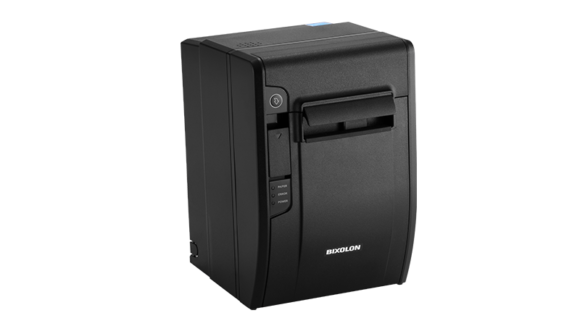

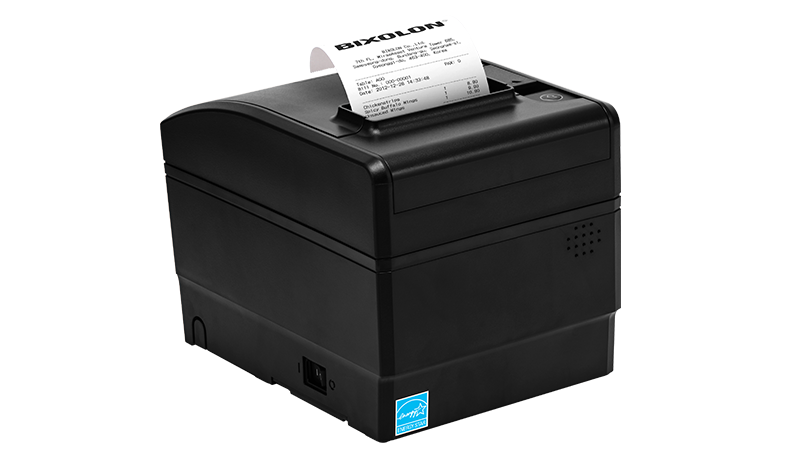

Bixolon SRP-S300 3” direct thermal liner-free label and receipt printer


The Bixolon SRP-S300 3” direct thermal liner-free label and receipt printer, providing high performance printing which is ideal for a number of industries including retail, hospitality, food delivery, logistics, lottery and more. Part of the Bixolon SRP Series. Drivers and utilities can be found here, see more about the Bixolon SRP-S300 in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Printing speed up to 170mm/sec (Liner-Free Label), 300mm/sec (Receipt)
  • 203dpi high resolution text, graphic and 1D/2D barcode printing
  • Four-Type media with options: 80 / 72 / 60 / 48 / 32mm
  • Built-in USB 2.0 Optional I/F card (Serial, Parallel, Ethernet, WLAN and Bluetooth)
  • 2 year warranty

Printing at speeds up to 170mm/sec (liner-free labelling), 300mm/sec for receipts, the SRP-S300 produces 203dpi resolution text, graphics and 1D/2D barcodes.  Supporting five widths of media including 83 / 80 / 62 / 58 / 40mm, the printer’s eco features include back-feeding technology which saves 20% on paper expenses and paper saving mode, while reducing the length of a receipt up to 25%.

Sporting a smart ergonomic design, the SRP-S300 is accompanied with a built in power supply to save on counter space and protect against water damage. Bundled together with a built-in B-Melodist, providing a voice error messages notifying users of the immediate issues to be addressed. The SRP-S300 also supports Easy Tracking™, a unique label plate found on the bottom of the printer providing a simple QR code linking to a technical support micro site.

The SRP-S300 is supplied with built-in USB 2.0 alongside optional I/F card (Serial, Parallel, Ethernet, WLAN and Bluetooth). The SRP-S300 is compatible with market-leading programming languages by an extensive range of drivers and SDKs (Software Development Kits) and supports a 2 year warranty.

Print Method Direct Thermal
Print Speed SRP-S300L: Up to 170 mm SRP-S300R: Up to 300 mm
Print Resolution 203 dpi
Print Width Up to 80 / 72 / 60 / 48 / 32 mm
Sensor Paper End, Paper Near End, Black Mark, Cover Open
Media Type Liner-Free Label, Receipt
Media Width 83 / 80 / 62 / 58 / 40 mm
Media Roll Diameter Up to 103 mm
Media Thickness 0.06 ~ 0.09 mm
Supply Method Easy Paper Loading
Dimensions (WxLxD) 158 x 214 x 154 mm (6.22 x 78.42 x 6.06 inch)
Weight 2.00 kg (4.40 lbs.)
Power Energy Star Certified, External Power, Adaptor 24V/2.5A
Drawer Port 2 Ports (Via y-type adaptor)
Memory 64 Mbit SDRAM, 32 Mbit FlashROM
NV Image Memory 256 Kbytes (Mono)
Receive Buffer 4 Kbytes
User Define Buffer 12 Kbytes
Interface Dual Interface USB V2.0 FS +Serial, Parallel, Ethernet, WLAN*, Bluetooth V4.2FH+ EDR**, or Powered USB * WLAN: 802.11b/g/n ** Bluetooth: Class 1 (100 m), MFi certified
Temperature Operating: 0 ~ 45℃ (32 ~ 113℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH
Thermal Print Head (TPH) SRP-S300L: 75 Km SRP-S300R: 150 Km
Auto Cutter SRP-S300L: 1 Million Cuts SRP-S300R: 3 Million Cuts
Emulation BXL / POS
Driver / Utility Windows Driver, OPOS Driver, JPOS Driver, Linux / Mac CUPS Driver, Virtual COM USB/Ethernet Driver, Utility Program
SDK iOS SDK, Android SDK, Windows SDK
Character Size Font A: 12 × 24 Font B: 9 × 17 Font C: 9 × 24 KOR, CHN, JPN: 24 x 24
Characters Per Line Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24
Character Sets Alphanumeric: 95 Extended Graphics:128 × 33 page International: 32
Graphics Supporting User-Defined Fonts, Graphics, Formats, and Logos
Barcode Symbologies 1D: UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code
