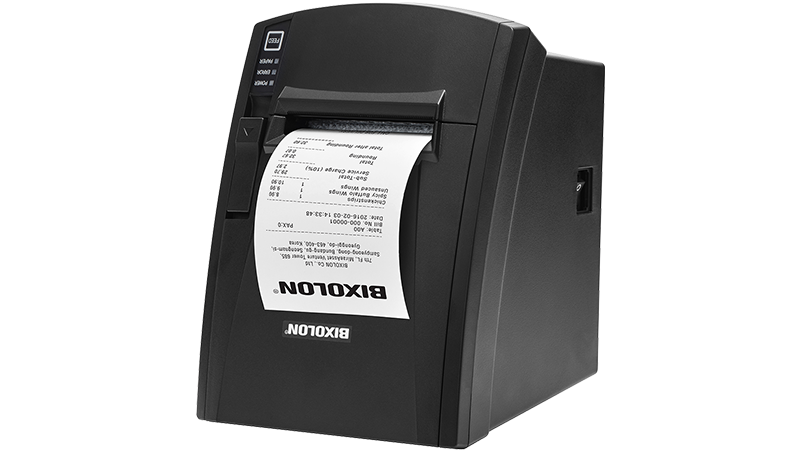

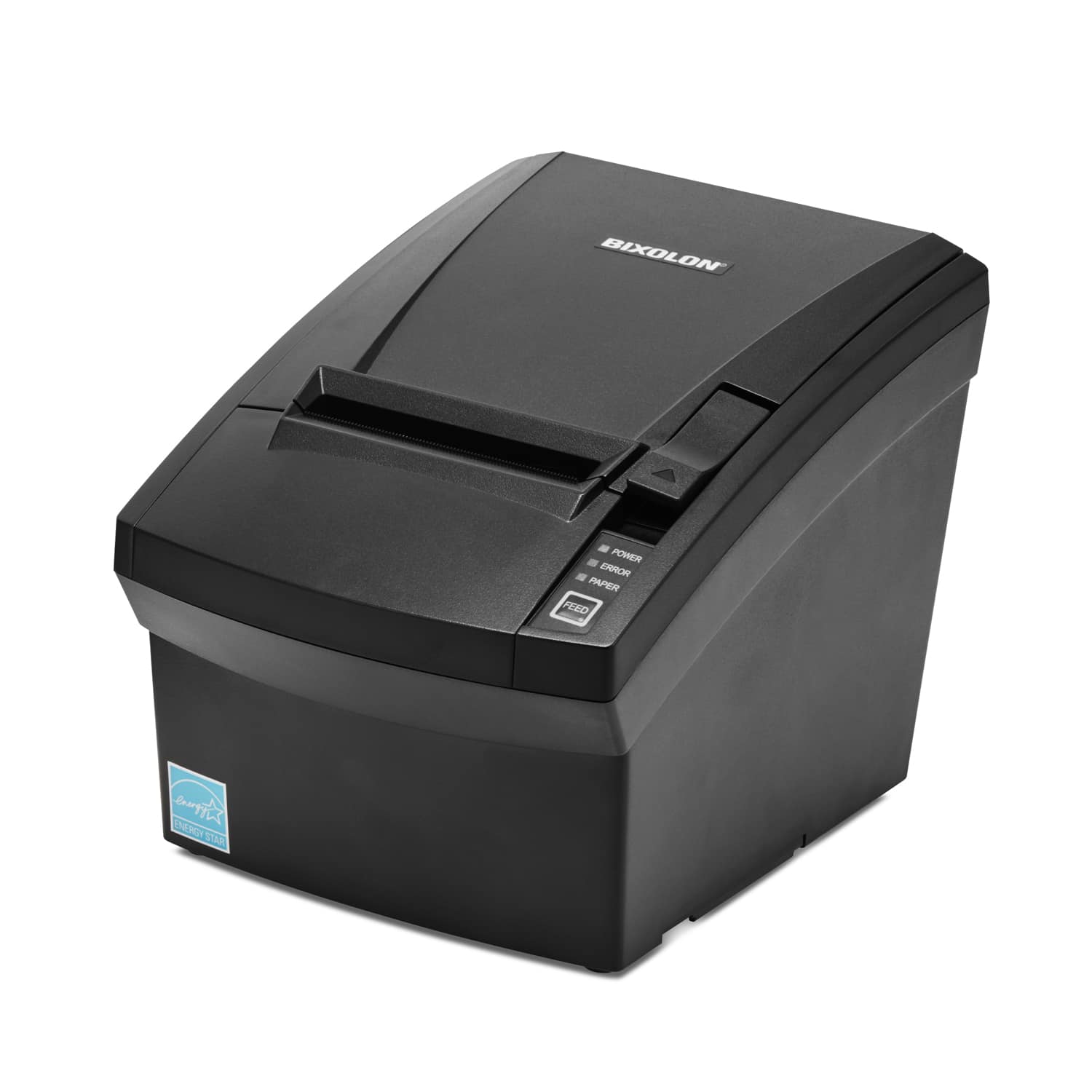

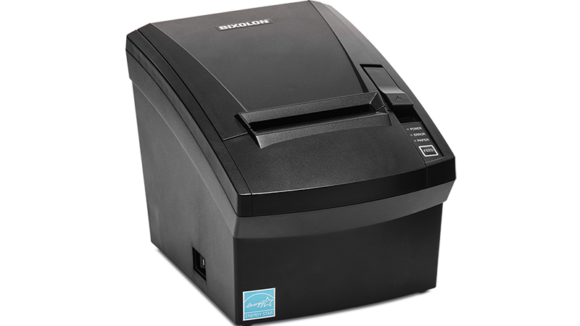

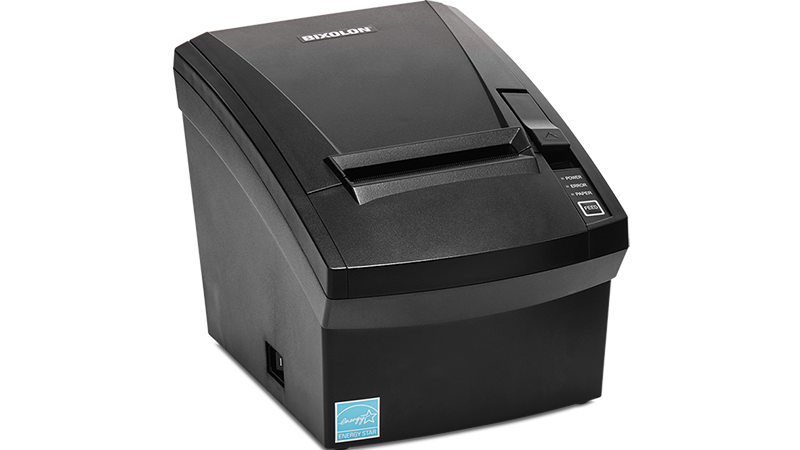

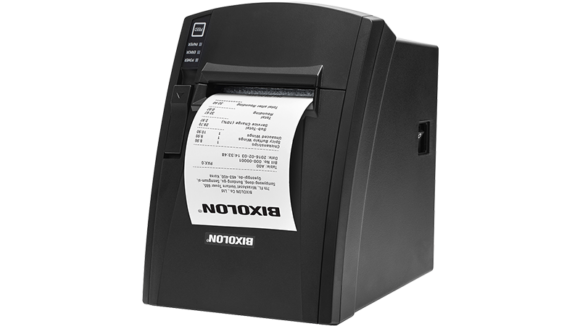

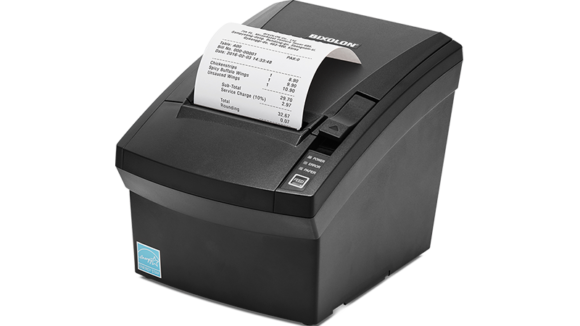

Bixolon SRP-330II 3 Inch Thermal POS Printer

Overview

Bixolon SRP-330II is a 3-inch thermal POS printer. It is a budget level, direct thermal POS printer providing exceptional value compared to other thermal printers in its class. This 3-inch thermal POS printer is part of the Bixolon SRP Series. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

Paper saving mode, reducing the length of a receipt up to 25%
Printing speed up 200 mm/sec
Stand-alone or Space-saving wall-mount
2” or 3” paper choice
Anti-jam guide

Printing at speeds up to 220mm/second with an 180dpi or 203dpi resolution printing high-quality text, graphics and 1D/2D barcodes. The SRP-330II offers easy paper loading with an optional paper guide for auto-switching between 2” or 3” width media.

Complete with an ergonomic design, the SRP-330II provides high print reliability at 150km TPH & a 1.5 million cuts auto cutter. Featuring Easy Tracking™, a unique label plate found on the bottom of the printer providing QR code details of a technical support micro site.

The SRP-330II 3-inch printer is supplied with an All-In-One Plus™ Interface, either a Triple Interface (USB + Ethernet + Serial) or Dual Interface (USB + Ethernet) connectivity. The SRP-330II is also compatible with market-leading programming languages by an extensive range of drivers and SDKs (Software Development Kits).

Print Characteristics
Print Method	Direct Thermal
Print Speed	Up to 220 mm/sec
Print Resolution	SRP-330II: 180 dpiSRP-332II: 203 dpi
Print Width	Up to 72 mm
Sensor	Paper End, Cover Open

Media Characteristics
Media Type	Receipt
Media Width	80 mm Optional 58 mm
Media Roll Diameter	Up to 80 mm
Media Thickness	0.05 ~ 0.08mm
Supply Method	Easy Paper Loading

Physical Characteristics
Dimensions(WxDxH)	145 x 198 x 146 mm (5.72 x 7.79 x 5.74 inch)
Weight	1.37 kg (3.02 lbs.)
Electrical	EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz
Drawer Port	2 ports (Via y-type adaptor)

Performance Characteristics
NV Image Memory	768 Kbytes (Mono)
Receive Buffer	4 Kbytes
User Define Buffer	12 Kbytes
Interface	USB V2.0 FS + Ethernet + Serial② USB V2.0 FS + Serial ③ USB V2.0 FS + Parallel ④ USB V2.0 FS + SD

Environment Characteristics
Temperature	Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity	Operating: 10 ~ 80% RHStorage 10 ~ 90% RH

Reliability
Thermal Print Head (TPH)	150 km
Auto Cutter	1.5 Million Cuts
*** Specified Paper	TF50KS-E (Paper thickness: 65μm) : Nippon Paper industries Co., Ltd. - PD 150R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd - PD 160R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd. - P350 (Paper thickness: 62μm) : Kansaki Specialty Paper, Inc. (USA)"

Software
Emulation	BXL / POS
Driver/Utility	Windows DriverOPOS/JPOS DriverLinux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility Program
SDK/Plugin	Android/iOS/Windows SDKLinux SDKXamarin SDKChrome SDKCordova Plugin
Application	mPrint App (iOS)

Fonts/Graphics/Symbologies
Character Size	Font A: 12×24 Font B: 9×17 Font C: 9×24KOR, CHN, JPN: 24x24
Characters Per Line	SRP-330II: - Font A: 42 Font B, C: 56 KOR, CHN, JPN: 21SRP-332II: - Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24
Character Sets	Alphanumeric: 95Extended Graphics: 128×33 pageInternational: 32
Graphics	Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies	1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code

Accessories
Standard	2 inch Partition (58 mm), USB A-B Cable 1.8m
Optional	External buzzer, B-Melodist
