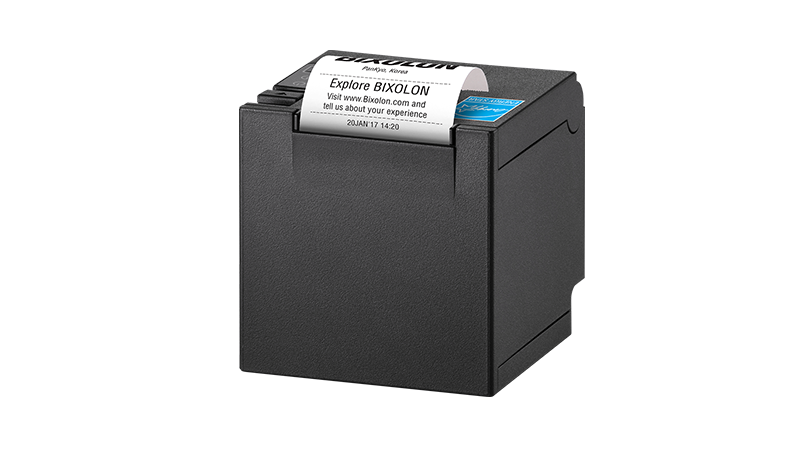

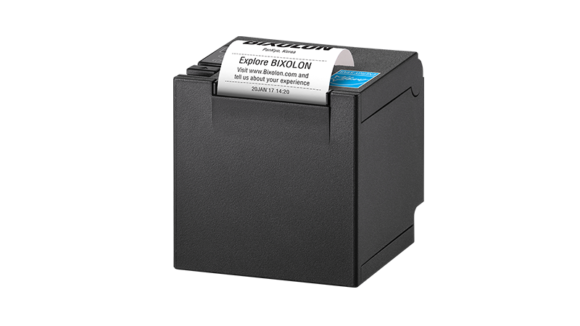

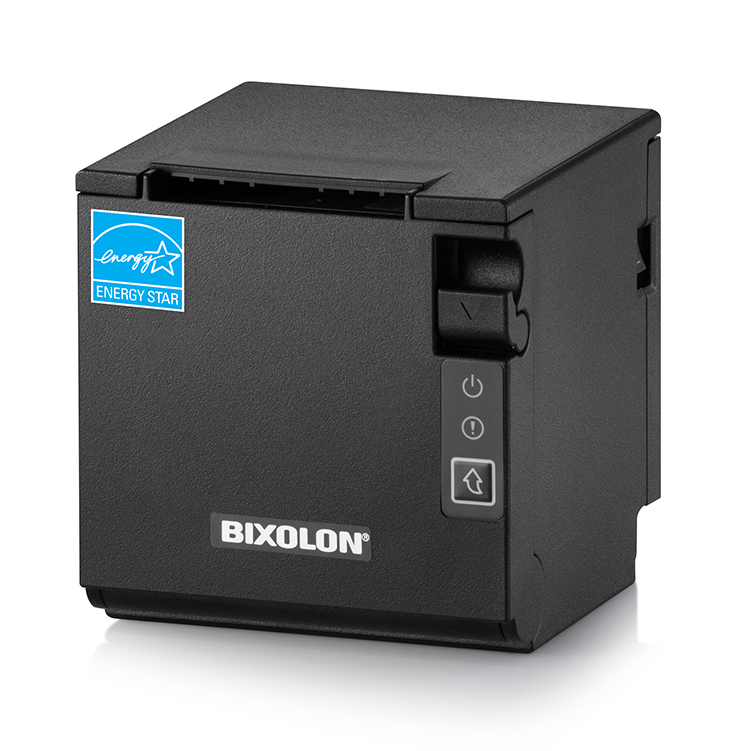

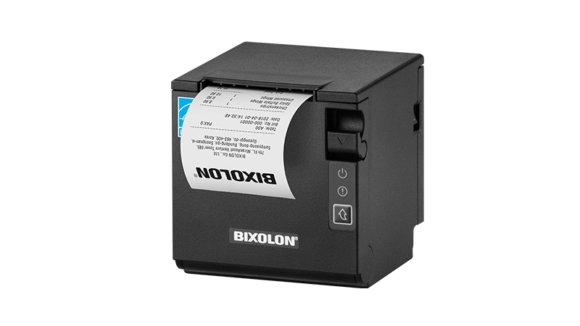

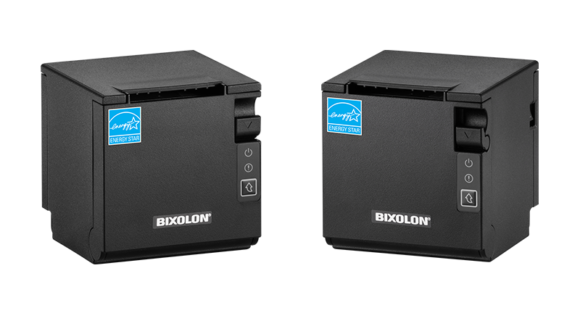

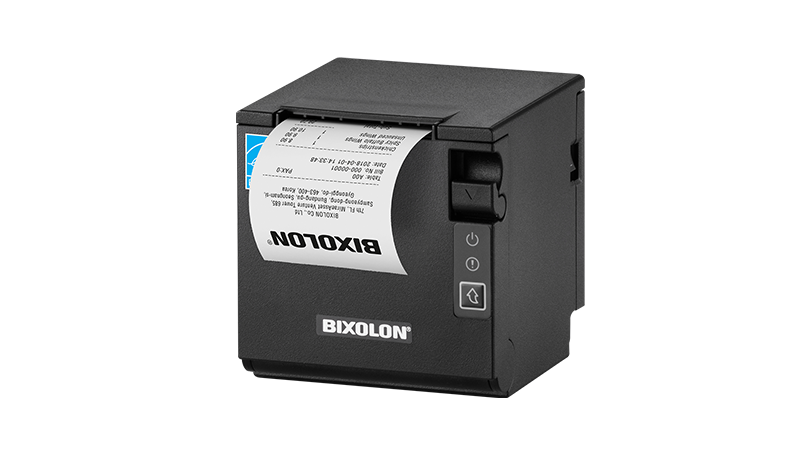

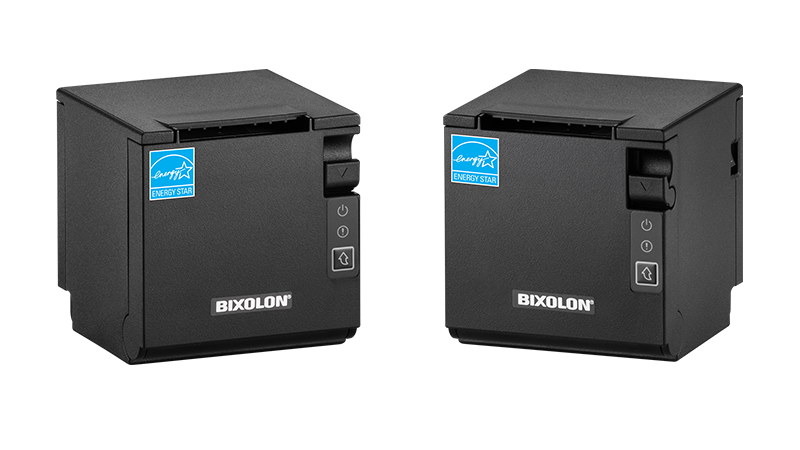

Bixolon SRP-Q200 2” (58mm) Ultra Compact, Direct Thermal Cube Printer

Overview

The Bixolon SRP-Q200 thermal printer offers a compact space saving design with excellent print speeds up to 250mm/sec at 203dpi print resolution which is ideal for couponing or ticketing applications that require dense data usage.  This compact design also integrates an Auto Cutter and specialized Anti-Jam technology, its simple design, easy maintenance and efficient power. Drivers and utilities can be found here, see more about the Bixolon SRP-Q200 in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 2” (58mm) Direct Thermal, receipt and ticket printer
  • Two paper path options available (top and/or front exit)
  • Fast print speed up to 250mm/sec
  • 203dpi print resolution

Available with a USB V2.0 FS + Serial interface as standard with optional Ethernet, Ethernet + Dual-band WLAN (5GHz and 2.4GHz) or Ethernet + Bluetooth LE. The SRP-Q200 is compatible with market-leading programming languages including BXL POS, alongside all major operating systems including Android™, iOS™ and Windows®. It is accompanied with a comprehensive suite of firmware & software, including Simple Network Management Protocol (MIB file) and SoftAP & Smart Connection™ for easy WiFi setup; and BIXOLON mPrint App for simple printing directly from your chosen web browser, plus more.

Available as a number of interface options:

Standard: USB V2.0 FS + Serial
Optional:
1. Ethernet
2. Ethernet + WLAN¹
3. Ethernet +Bluetooth²

————————————————

*WLAN¹:  802.11a/b/g/n(2.4G+5G)
*Bluetooth²: V4.2 Classic / LE, Class 1, MFi certified

Specification
Print Method Direct Thermal
Print Speed Up to 250 mm/sec
Print Resolution 203 dpi
Print Width Up to 54mm
Sensor Paper End, Cover Open
Media Type Receipt
Media Width 58.0 mm
Media Roll Diameter Up to 60 mm
Media Thickness 0.05~0.08mm
Supply Method Easy Paper Loading
Dimensions (WxDxH) 103 x 104 x 109 mm (4.03 x 4.10 x 4.24 inch)
Weight 0.61 kg(1.34 Ibs.)
Electrical EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz
Drawer Port 2 ports (Via y-type adaptor)
NV Image Memory 768 Kbytes (mono)
Receive Buffer 4 Kbytes
User Define Buffer 12 Kbytes
Interface Standard: ① USB V2.0 FS + Serial ② USB V2.0 FS + Ethernet Optional: ① USB V2.0 FS + Ethernet + WLAN¹ ② USB V2.0 FS + Ethernet + Bluetooth² WLAN¹: 802.11a/b/g/n(2.4G+5G) Bluetooth² : V4.2 Classic / LE, MFi certified
Temperature Operating: 0~40℃ (32~104℉) Storage: -20~60℃ (-4~140℉)
Humidity Operating: 10 ~ 80% RH Storage 10 ~ 90% RH
Thermal Print Head (TPH) 100 km
Specified Paper - TF50KS-E (Paper Thickness: 65μm) : Nippon Paper Industries Co., Ltd. - PD 160R (Paper Thickness: 75μm) : New Oji Paper Mfg. Co., Ltd. - P350 (Paper Thickness: 62μm) : Kansaki Specialty Paper, Inc. (USA) - Hansol Thermo 65 (Paper Thickness: 65μm) : Hansol Paper Co., Ltd (Korea)
Emulation BXL / POS
Driver/Utility • Windows Driver • OPOS/JPOS Driver • Linux/Mac CUPS Driver • Virtual COM USB/Ethernet Driver • Utility Program
SDK/Plugin • Android/iOS/Windows SDK • Linux SDK • Xamarin SDK • Chrome SDK • Cordova Plugin
Application • mPrint App(iOS)
Character Size "Font A: 12×24 Font B: 9×17 Font C: 9×24 KOR, CHN, JPN: 24x24"
Characters Per Line Font A: 36, Font B, C: 48 KOR, CHN, JPN: 18
Character Sets Alphanumeric: 95 Extended Graphics:128×35 page International: 32
Graphics Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code
Optional External buzzer, B-Melodist USB A-B Cable 1.8m, Serial Cable(9pin-9pin)
