Bixolon SRP-Q300 Series is a 3” ultra-compact receipt and ticket printer

Overview

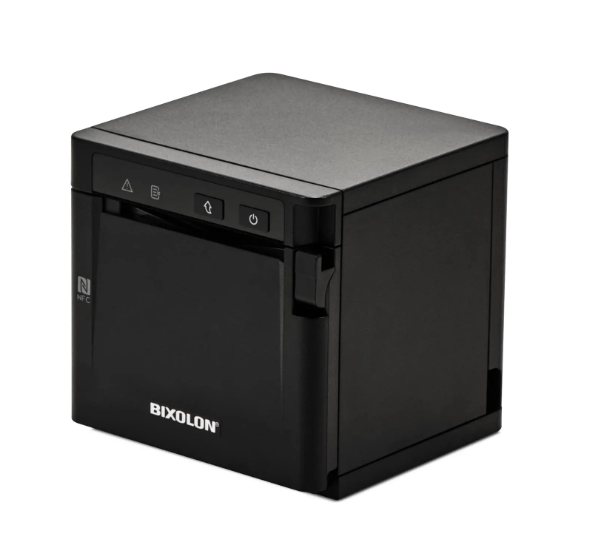

The multi-functional Bixolon SRP-Q300 Series is a 3” (80mm) Direct Thermal ultra-compact receipt and ticket printer with flexible mPOS configuration capabilities. Sporting front-exit printing, the SRP-Q300 compact ticket printer is designed to free up counter space and compliment the latest mPOS systems. This cost-effective ticket printer prints at speeds up to 220mm/sec with a print resolution 180dpi or 203dpi (SRP-Q302 model) to provide high quality texts, graphics, barcodes and QR codes. Part of the Bixolon SRP Series. Drivers and utilities can be found here, see more about the Bixolon SRP-Q300 in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 3” (80mm) Direct Thermal, receipt and ticket printer
  • Print resolution SRP-Q300: 180dpi, SRP-Q302: 203dpi
  • Fast print speed up to 220mm/sec
  • 2 year warranty as standard
  • flexible mPOS configuration capabilities

Providing flexible printing from Android™, iOS™ and Window® mobile devices alongside supporting Auto Bluetooth and WLAN connection via NFC for Android Smart Devices. Ideal for initial printer setup and configuration with Android smart devices running on Android OS V3.1 or higher. Enabling user convenience throughout the printer setup, the BIXOLON Q300 Utility Android Utility Software application on the Google Store provides exclusive setup compatibility with the SRP-Q300.

The SRP-Q300H with BIXOLON’s intelligent B-gate connectivity hub can seamlessly connect to the host tablet device (via Bluetooth communication) while supporting 1 charging port and up to 4 USB peripherals (scanner, cash drawer, customer display, RFID reader, scales, etc.). The SRP-Q300H can print receipt or online orders through a native, web and loud-based mPOS application with B-gate SDK’s (Software Development Kits). Paired with BIXOLON’s mini LCD customer Display (BCD-3000) and a robust steel tablet stand safely securing a 10inch tablet using a locking mechanism and 170° forward-tilting feature to build a complete mPOS solution.

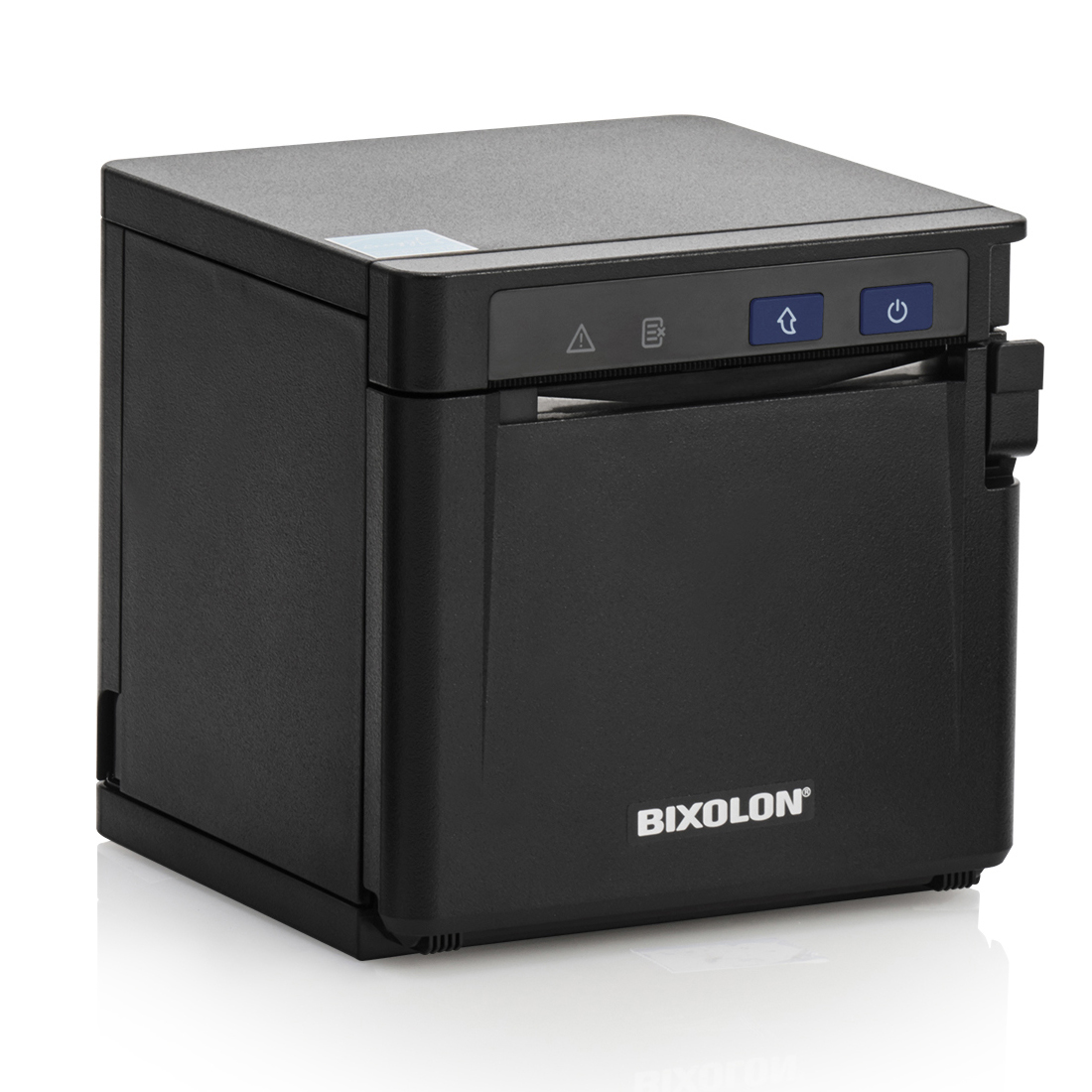

The economic SRP-QE300 is an entry-level printer with USB and Ethernet connectivity. Producing print speeds up to 200mm/sec with a print resolution of 180dpi to produce high quality texts, graphics, barcodes and QR codes. The SRP-QE300 is ideal solution for a range of receipt and ticket applications.

The SRP-Q300B stand-alone cube printer operates with a 24V Li-ion, 2,750mAh built-in rechargeable battery. Sporting a 4 hour battery charge time, the battery printer can support continuous printing of up to 10 rolls of 80mm diameter paper (total 600m), with a 52 hour stand-by time once fully charged. Ideal for a wire-free tablet applications, the SRP-Q300B combines quality and capability for a variety of applications from food trucks to pop-up store speciality branding.

Available in different interface models including,
Standard: USB V2.0 FS + Ethernet,
Optional:
1. USB V2.0 FS + Ethernet + WLAN
2. USB V2.0 FS + Ethernet + Bluetooth V4.2 Classic / LE &
SRP-Q300H: SRP-Q300 + B-gate for Q300 (4 USB Host ports (V2.0 HS) + 1 Device port (V2.HS) + 1 USB only Charging Port + Ethernet + Bluetooth V4.2 (Classic / LE) / WLAN)
SRP-QE300: USB V2.0 FS + Ethernet
SRP-Q300B: USB V2.0 FS + Ethernet
Optional:
USB V2.0 FS + Ethernet + Bluetooth
USB V2.0 FS + Ethernet + WiFi

Specification
Print Method Direct Thermal (Top / Front Exit)
Print Speed SRP-E300 : Up to 200mm/sec SRP-Q300,Q300H, Q300B : Up to 220 mm/sec
Print Resolution SRP-QE300, Q300, Q300H: 180dpi SRP-QE302, Q302, Q302H: 203dpi
Print Width Up to 72mm
Sensor Paper End, Cover Open
Media Type Receipt
Media Width 80 mm
Media Roll Diameter Up to 80 mm
Media Thickness 0.062 ~ 0.075 mm
Supply Method Easy Paper Loading
Dimensions (W x L x D) SRP-Q300, QE300: 128 x 125 x 125 mm (5.03 x 4.92 x 4.92 inch) SRP-Q300H: 128 x 125 x 160.2 mm (5.03 x 4.92 x 6.30 inch)
Weight SRP-QE300: 1.13 kg (2.49 Ibs.) SRP-Q300: 1.23 kg (2.71 lbs.) SRP-Q300H: 1.38kg (3.04lbs)
Power EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz
Drawer Port 2 ports (via y-type adaptor)
Interface SRP-QE300: USB V2.0 FS + Ethernet ● SRP-Q300 Standard: USB V2.0 FS + Ethernet + 1 USB only Charing port Optional: ① Standard + WLAN* ② Standard + Bluetooth V4.2 (Classic / LE)** * WLAN: 802.11a/b/g/n(2.4G+5G) ** Bluetooth: Class 1, MFi certified ● SRP-Q300H 4 USB Host ports(V2.0 HS) + 1 Device port (V2.0 HS) + 1 USB only Charging port + Ethernet + Bluetooth V4.2 (Classic / LE)** / WLAN*** *** WLAN: 802.11a/ac/b/g/n(2.4G+5G) USB dongle type(Optional)
Temperature Operating: 0 ~ 40℃ (32 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH
Thermal Print Head (TPH 150 km
Auto Cutter 1.5 Million Cuts
Emulation BXL / POS
Driver / Utility Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver, Virtual COM USB/Ethernet Driver, Utility Program
SDK iOS SDK, Android SDK, Windows SDK, Linux SDK
Character Size Font A: 12 x 24 Font B: 9 x 17 Font C: 9 x 24 KOR, CHN, JPN: 24 x 24
Characters Per Line SRP-QE300, Q300, Q300H : Font A: 42 Font B, C: 56, KOR, CHN, JPN: 21 SRP-QE302, Q302, Q302H: Font A: 48 Font B, C: 64, KOR, CHN, JPN: 24
Character Sets Alphanumeric: 95 Extended Graphics:128 x 35 page International: 32 Unicode : UTF-8, UTF-16, UTF-32 (SRP-QE300 is not available)
Graphics Supporting user-defined fonts, graphics, formats, and logos
Barcode Symbologies 1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, GS1-128, GS1 DataBar Stacked / Omnidirectional / Truncated / Limited / Expanded, PDF417, QR code
Accessories Optional MSR/SCR Module, Tablet stand (RTS-Q300), Mini LCD Display (BCD-3000)
