Overview

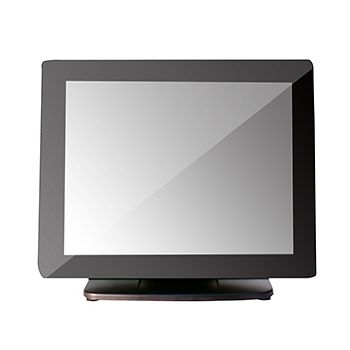

Powered by Intel processor Elkhart Lake, the XT-3815-G2 features a 15" bezel-free true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, the XT-3815-G2 looks right at home at any elegantly decorated store. And more than just good looks, the XT-3815-G2 also offers ample performance and flexibility to satisfy the most demanding of daily POS operations.
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account
Sleek Look
|

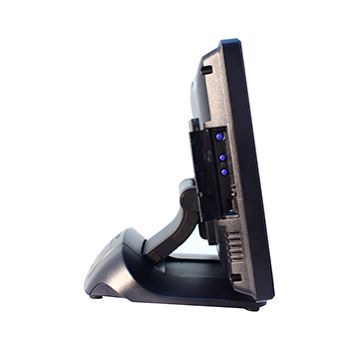

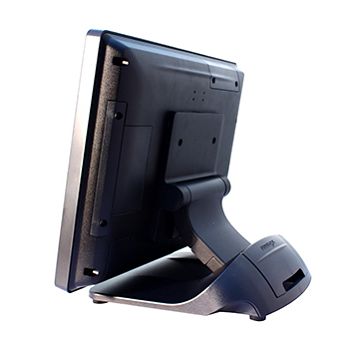

Multi-Position Folding Base
|
Performance
|
Fanless Design
|
GEN8E Base
|
| Specification | XT-3815-G2 |
| Processor | Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache |
| System Memory | DDR4 SO-DIMM x 2, max. 32GB |
| Storage Device | M.2 connector [supporting AHCI mode] x 2 |
| Power Supply | 12V/60W |
| TPM Support | Yes, TPM 2.0 |
| OS Support | Windows 10 IoT 64 bit |
| Display & Touch | XT-3815 |
| LCD | 15" TFT LCD |
| Resolution | 1024 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | XT-3815 |
| Serial Port | 6, DB9 x 3 + RJ50 x 1 + 2 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM 4 (all converter cables are optional) |
| Parallel Port | 1, via optional conversion cable through service window |
| Standard USB Port | 7, USB 3.0 x 3 + USB 2.0 x 4 |
| PoweredUSB Port | Optional 24V x 1 + 12V x 3 via GEN8E base |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | VGA x 1, 12V support for Posiflex monitors |
| CR Port | 1, control 2 CR via optional Y-cable |
| PS/2 Port | 1, via optional conversion cable through service window |
| UPS Port | Yes, battery optional |
| Audio | Internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| Physical Dimension | XT-3815 |
| Dimension (W x D x H in mm) | 372 x 252.7 x 320 |
| Weight (N. W. in kg) | 6 |
| Environmental | XT-3815 |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Built-in Options | XT-3815 |
| WiFi | M.2 WiFi/BT module |
