Key Features
- 15.0" TFT LCD
- Display Interface - VGA
- For XT Series
The LM-3015E is a 15″ LCD 2nd monitor bezel-free display with resolution up to 1024 x 768 for all XT Series POS terminals.

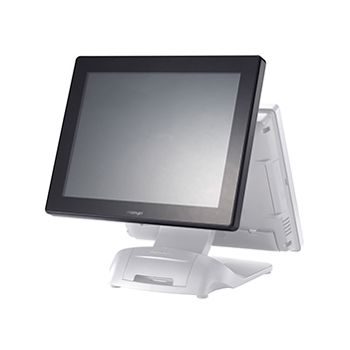

Posiflex LM-3015E 15" rear display for XT series
Overview
The LM-3015E is a 15" LCD 2nd monitor bezel-free display. Supporting resolution up to 1024 x 768 for all XT Series POS terminals.
Register to get started
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account| Specification | |
| LCD | 15.0" TFT LCD |
| Resolution | Up to 1024 x 768 |
| Active Area | 304.128 (H) x 228.096 (V) |
| Pixel Pitch | 0.297 (H) x 0.297 (V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Angle | 80/80/80/80 degree (U/D/L/R) |
| Contrast Ratio | 600 : 1 |
| Response Time | 3 ms (Raising)/5 ms (Falling) |
| Brightness | 250cd/m2 |
| Display Interface | VGA |
| Power Supply | 12V from Posiflex terminal VGA port |
| System Supported | All XT Series (excl. XT-2614Q) |
