Key Features
- 2D Scanner
- For Posiflex 15"/17" XT Series, PS Series

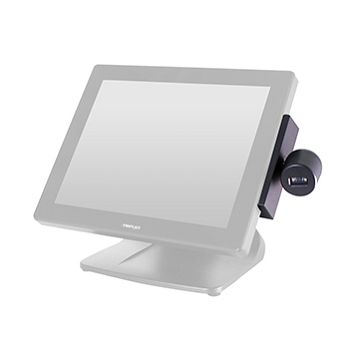

Posiflex SA-715Z Scanner Attachment
Overview
Posiflex SA-715Z rotatable 2D Scanner Attachment for 15"/17" XT Series, PS Series POS Terminals.
Register to get started
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account| Specification | |
| Scanner Rotatable Angle | 30° frontward/105° backward (along z-axis); 25° sideward (along y-axis) |
| Light Source | White LED x2 |
| Resolution | 752 (H) x 480 (V) pixels |
| Depth of field | 40~120mm (15 mils QR code) |
| Scan Method | CMOS arrays sensor |
| Scan Angle | Horizontal - 41°, Vertical - 26° |
| Scan Rate | Up to 60 fps |
| 1D Barcode Support | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBNISSN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| 2D Barcode Support | Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417 |
| Postal Code Support | Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code |
| System Supported | 15"/17" XT Series & PS Series |
