Key Features
- 9.7" TFT LCD
- Bezel-free PCAP touch
- Interface - USB
- Touchscreen
- For XT Series
The TM-3010E is a 9.7″ LCD 2nd monitor bezel-free display with PCAP touch, supporting up to 1024 x 768 resolution for all XT Series & KS-7412 POS terminals.

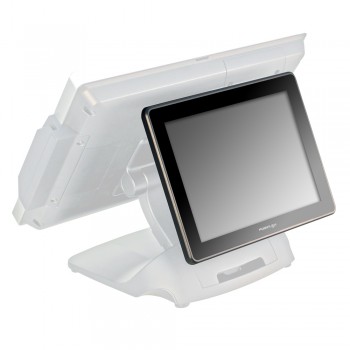

Posiflex TM-3010E 10" Touch Display for XT Series
Overview
The TM-3010E is a 9.7" LCD 2nd monitor bezel-free display with PCAP touch. Supporting up to 1024 x 768 resolution for all XT Series POS terminals.
Register to get started
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account| Specification | |
| LCD | 9.7" TFT LCD |
| Resolution | Up to 1024 x 768 |
| Active Area | 196.61 (H) x 147.46 (V) |
| Pixel Pitch | 0.192 (H) x 0.192 (V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Angle | 60/70/70/70 degree (U/D/L/R) |
| Contrast Ratio | 500 : 1 |
| Response Time | 20 ms (Raising + Falling) |
| Brightness | 350 cd/m2 |
| Touch Type | Bezel-free PCAP touch |
| Interface | USB |
| Display Interface | VGA |
| Power Supply | 12V from Posiflex terminal VGA port |
| System Supported | All XT Series (excl. XT-2614Q) & 12" KS Series |
