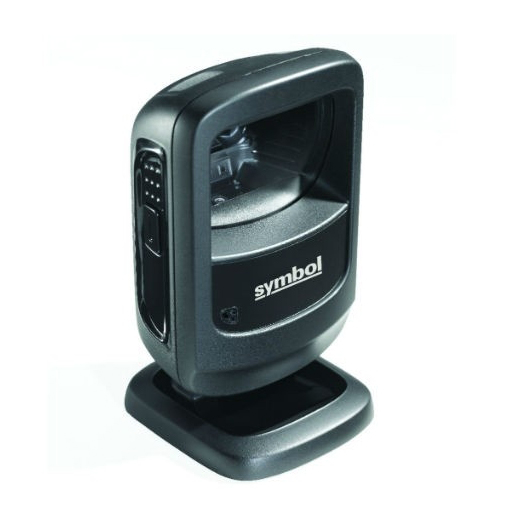

Zebra DS9208 Hands-free barcode scanner

Overview

The Zebra DS9208 sports a new sleek contemporary design that is at home in either environment. And with the most compact footprint in this class, the DS9208 can fit in the most space constrained areas

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Scans 1D, 2D and PDF417 bar codes on paper, mobile phones and computer displays
  • Small Footprint
  • Sleek Design
  • Handheld and hands-free modes

Whether you need to scan printed barcodes on paper labels or mobile barcodes on the screen of a mobile phone, with the DS9208, you’ll be ready. You get the versatility to scan any 1D or 2D barcode — from the printed labels in retail that identify product and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. And the DS9208 provides all the features you need to keep your workers productive: industry-leading scanning speed and true point-and-shoot scanning simplicity.

BOOST CUSTOMER SERVICE, LOYALTY WITH MOBILE BARCODES
Convenience is driving your customers to store boarding passes, event tickets, mobile gift and loyalty cards as well as mobile coupons on their cell phones, where they are always available and easy to find — unlike their physical counterparts. With the DS9208, you are ready to complete the mobile bar code transaction chain.

‘GO ANYWHERE’ DESIGN WITH TINY FOOTPRINT
Maybe your retail store has a trendy décor. Or maybe your counter space is extremely limited. The DS9208 sports a new sleek contemporary design that is at home in either environment. And with the most compact footprint in this class, the DS9208 can fit in the most space constrained areas — from the POS in a boutique to the ticket window at a train station.

SMART INVESTMENT WITH LOW TOTAL COST OF OWNERSHIP
The DS9208 not only helps you make money, it helps you save money. The device is so intuitive that training — and training-related costs — are virtually eliminated. Right out of the box, the DS9208 can read the most common 1D and 2D bar codes on a wide variety of surfaces — from paper labels to cell phone displays

PHYSICAL CHARACTERISTICS
Dimensions 5.512 in. H x 3.232 in. W x 3.150 in. D / 14.0 cm H x 8.21 cm W x 8.0 cm D
Weight 9.5 oz./269 g
Voltage and Current Idle: 5 ± 10% VDC @ 150ma average Scanning: 5 ± 10% VDC @ 230ma average
Colour Midnight Black
SYMBOLOGY DECODE CAPABILITY
1D UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic,Code 32 (Italian Pharmacode), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded,Expanded Stacked)
PDF417 (and variants) PDF417 (Standard, Macro), MicroPDF417(Standard, Macro), Composite Codes (CC-A,CC-B, CC-C)
2D TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)
Postal U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB, Canadian Post (Postbar)
Nominal Working Range Code 39 – 5 mil: 0 – 4.5 in. (0 – 11.4 cm) UPC/EAN – 10 mil (80%): 0 – 8.5 in. (0 – 21.6 cm) UPC/EAN – 13 mil (100%): 0 – 10.5 in. (0 – 26.7 cm) PDF417 – 6.6 mil: 0 – 3.8 in. (0 – 9.6 cm) Datamatrix – 10 mil: 0 – 4.7 in. (0 – 11.9 cm)
Minimum Resolution Code 39 – 4 mil UPC – 7.8 mil (60%) PDF417 – 5 mil Datamatrix – 7.5 mil QR Code – 7.5 mil
USER ENVIRONMENT
Operating Temp. 32° F to 104° F / 0° to 40° C
Drop Specs Withstands multiple 5 ft./1.5 m drops to concrete
Humidity 5% to 85% RH (non-condensing)
Ambient Light Immunity Immune to natural and artificial ambient light (i.e. sunlight, incandescent, fluorescent,mercury vapor, sodium vapor)
PERFORMANCE CHARACTERISTICS
Light Source Aiming pattern: single dot, 625nm LED Illumination: 630nm LEDs
Imager Field of View 46° Horizontal x 29.5° Vertical
Roll 360°
Pitch ± 65°
Yaw ± 60°
Print Contrast 25% minimum reflective difference
Swipe Speed (Vertical Read Rate) Up to 90 in./2.3 m per second
IMAGING CHARACTERISTICS
Graphics Format Support Images can be exported as Bitmap, JPEG or TIFF
Image Transfer Speed USB 2.0: Up to 12 Megabits/second RS-232: Up to 115 kb/second
Image Transfer Time Typical USB application is ~0.2 seconds with a compressed JPEG of 100kb
Image Quality 120 PPI on a 4 x 6 in./10.2 x 15.2 cm document @ 4.7 in./11.9 cm
INTERFACES
Interfaces Supported USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge
REGULATORY
Electrical Safety UL6950-1, CSA C22.2 No. 60950-1:2nd ed., EN60950-1: 2nd ed. + A11: 2009 IEC60950-1: 2nd ed.
LED Safety IEC / EN 60825-1: 2001 Class 1M LED, EN 62471: 2008 IEC 62471: 2006
EMI/RFI FCC CFR47 Part 15 Class B: 2007, ICES-003 Issue 4 :2004 Class B, EN 55022: 2006 + A1: 2007, EN 55024: 1998 +A1: 2001 + A2: 2003 AS/NZS CISPR22:2006, VCCI:2007
Environmental Compliant with RoHS Directive 2002/95/EC
WARRANTY
Subject to the terms of Zebra’s hardware warranty statement, the DS9208 is warranted against defects in workmanship and materials for a period of 3 years from the date of shipment. For the complete Zebra hardware product warranty statement, go to: www.zebra.com/warranty
