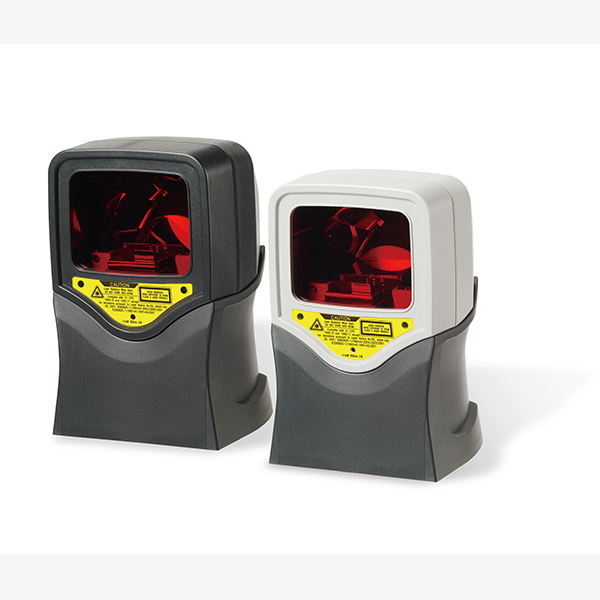

Zebex Z-6010 barcode scanner

Overview

The Z-6010 barcode scanner is ideal for environments where space is at a premium with its small footprint the Z-6010 fits in the smallest counter space.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Support both omnidirectional and single-line scanning
  • Supplied with stand
  • Compact hands-free barcode scanner
  • Adjustable tone and volume
  • proven to withstand a 1.5M drop

The Z-6010 barcode scanner is ideal for environments where space is at a premium with its small footprint the Z-6010 fits in the smallest counter space.

The Z-6010 is a compact hands-free omnidirectional laser scanner, and becomes a single-line laser scanner by pressing down a button. It is designed to suit both requirements for omnidirectional and single-line scanning. With the reserved mounting holes at the back of the scanner body, the Z-6010 transforms to a scanning module to allow integration into your desirable hardware application. It also has an optional cradle with two joints which creates a three-dimensional adjustment capability by turning so that you can enjoy the benefit of a real best fit.

The Z-6010 is designed to withstand harsh environments and has proven to withstand a 1.5M drop.

• Support both omnidirectional and single-line scanning
• Aggressive scanning performance
• Optional 3D turning cradle
• Proprietary Z-SCAN+ technology
• Flexible communications

OPERATIONAL
Light Source 650 nm visible laser diode (VLD)
Depth of Field 5 mil: 30 – 90 mm, 7.5 mil: 30 – 170 mm, 10 mil: 0 – 180 mm, 13 mil: 0 – 210 mm, 20 mil: 0 – 280 mm,
Scan Pattern 5 directions of scan field
Scan Rate 1,400 scans per second (omnidirectional); 70 scans per second (single-line)
Scan Line 20
Print Contrast 30% @ UPC/EAN 100%
Indicator Two-color LED (blue & red)
Beeper Operation Programmable tone & volume
PHYSICAL
Dimension 110.9 × 65.8 × 70.0 mm (on fixed stand); 122.2~253.0 × 120.3~163.3 × 74.0 mm (on optional cradle)
Weight 200 g (on stand); 350 g (on optional cradle)
Cable Keyboard, RS-232, HID USB, USB Virtual COM, wand
POWER
Input Voltage 5 VDC ±10%
Power Consumption 1.0 watts
Operating Current 200 mA typical
REGULATORY
Laser Class CDRH Class IIa; IEC 60825 Class 2
EMC CE & FCC DOC compliance, VCCI, BSMI
ENVIRONMENTAL
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity 5% – 95% RH (no dewing allowed)
Light Level Up to 4,500 Lux (fluorescence)
Drop Durability Designed to withstand 1.5M drops
DECODING CAPABILITY
1D Barcode UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded
