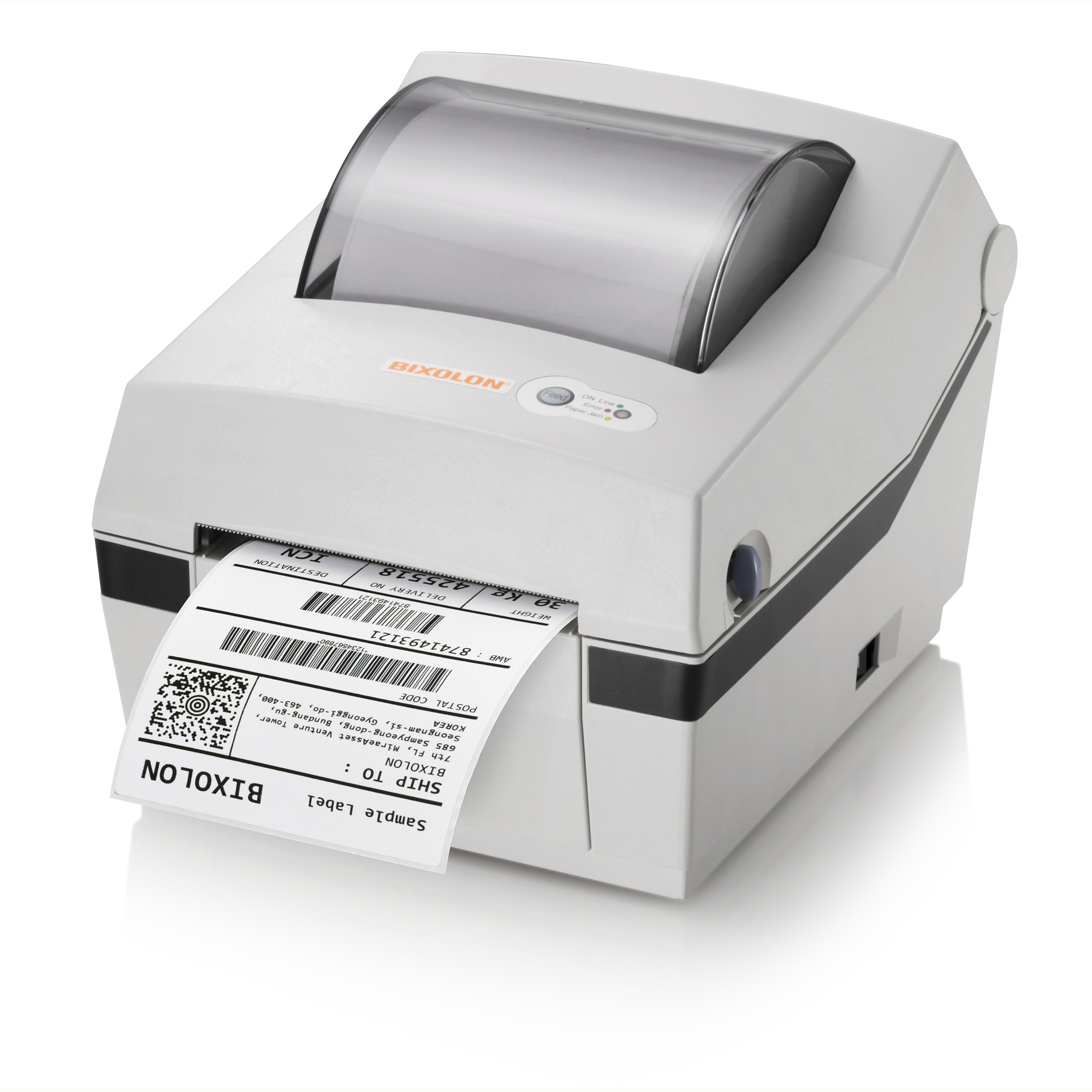

Bixolon SRP-E770III direct thermal label printer

Overview

Bixolon SRP-E770III economical 4” direct thermal label printer boasts 5 Inches per Second (IPS) (127mm/sec) and produces 203dpi high quality text, graphics and barcode labels. Furthermore, the SRP-E770III thermal label printer has fast data processing speed on all types of label. Part of the Bixolon SRP Series Drivers and utilities can be found here, see more about the Bixolon SRP-E770III in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • High quality label printing at speeds of up to 127mm/sec (5ips)
  • Fast data processing speed for various types of label
  • Standard Interface: USB, Optional Interfaces: USB + Serial, USB + Ethernet
  • Peeler as standard
  • 2 year warranty as standard

Fully compatible with marketing-leading programming languages including SLCS, BPL-Z™ and BPL-E™. Alongside label design software including BIXOLON’s Label Artist™ Seagull’s BarTender® and BarTender® UltraLite for BIXOLON. The SRP-E770III is a smart printer which can automatically detect and switch to the correct programming language. The printer modes can be easily switched via a button which is visually confirmed by LED.

Supporting a compact, ergonomic design featuring easy media loading with adjustable paper guide between 1.5~4.2 inches.  For use in barcode and receipting applications with the added bonus of printing on fanfold label media. The SRP-E770III comes with a 2 year warranty as standard.

Interface options:

  1. SRP-E770III DUS : USB and Serial with Peeler
  2. SRP-E770III DUE : USB and Ethernet with Peeler
Specification
Print Method Direct Thermal
Print Speed Up to 5 ips (127 mm/sec)
Print Resolution 203 dpi
Print Width Up to 104 mm
Print Length Up to 1,000 mm
Sensor Transmissive, Reflective, Head open
Media Type Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width 42 ~ 106 mm
Media Roll Diameter Up to 130 mm
Media Thickness 0.06 ~ 0.20 mm
Supply Method Easy Paper Loading
Dimensions (WxDxH) 189 x 221 x 171 mm (7.44 x 8.70 x 6.73 inch)
Weight 1.47kg (3.24 lbs.)
Power EnergyStar Certified, External Power Adaptor 100-240V AC, 50/60Hz
Memory 64 MB SDRAM, 128 MB Flash
Interface Options i. SRP-E770III DUS : USB and Serial with Peeler ii. SRP-E770III DUE : USB and Ethernet with Peeler
Temperature Operating: 0 ~ 40℃ (32 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH
Emulation SLCS, BPL-Z™, BPL-E™
Driver / Utility Windows Driver (Euro Plus/Seagull), OPOS Driver, Linux / Mac CUPS Driver, Virtual COM USB/Ethernet Driver, Utility Program, Label Artist-II, Bartender UL
SDKs iOS SDK, Android SDK, Windows SDK, Linux SDK
Fonts • 10 SLCS Resident Bitmap Fonts • One SLCS Resident Scalable Font • 16 BPL-Z™ Resident Bitmap Fonts • One BPL-Z™ Resident Scalable Font • 5 BPL-E™ Resident Bitmap Fonts • 23 Code Page • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics Supporting user-defined fonts, graphics, formats, and logos
Barcode Symbologies 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB 2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
