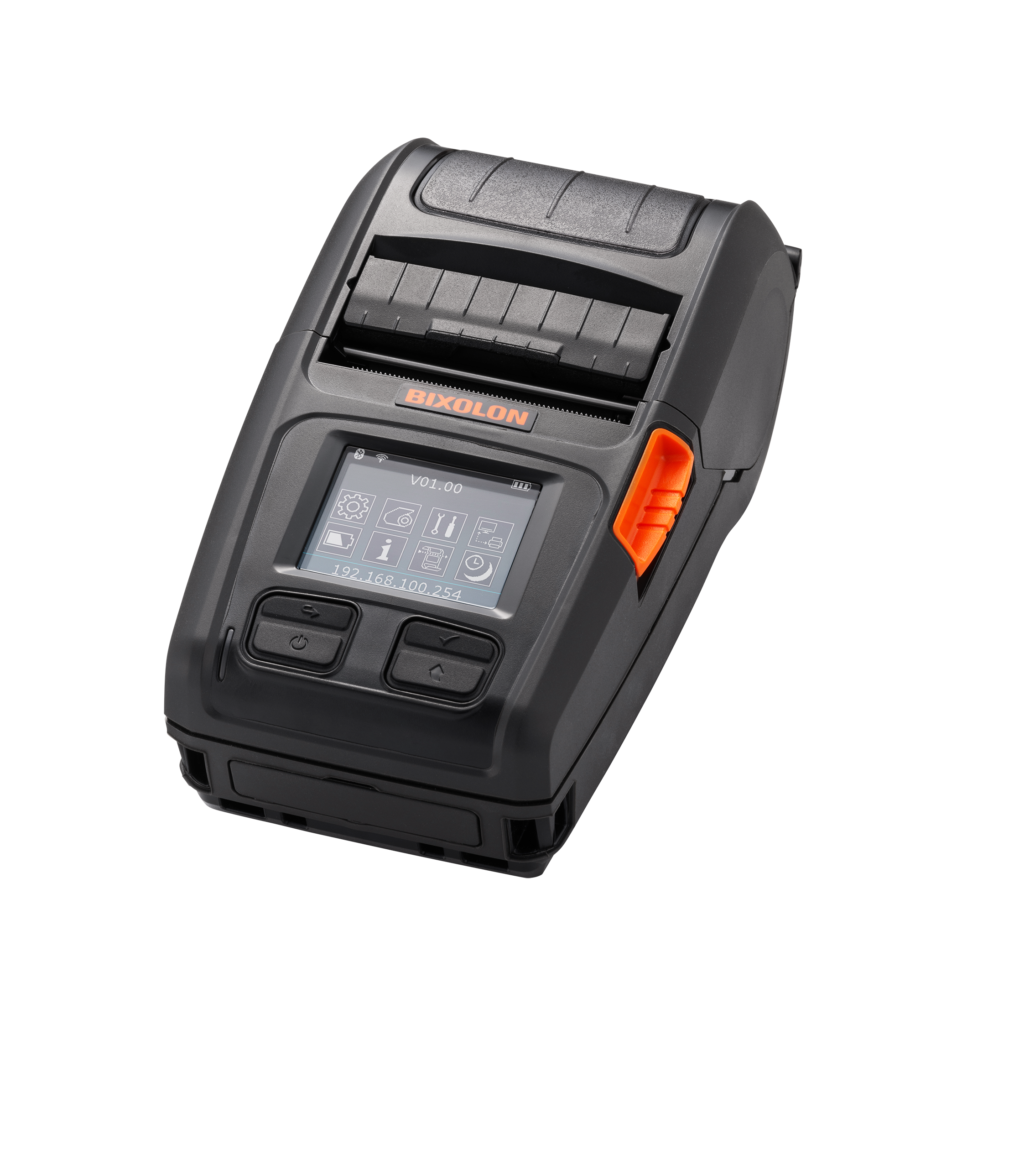

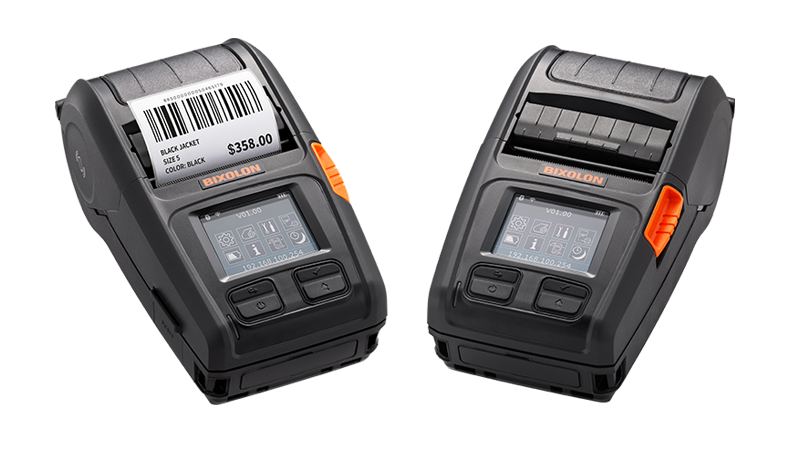

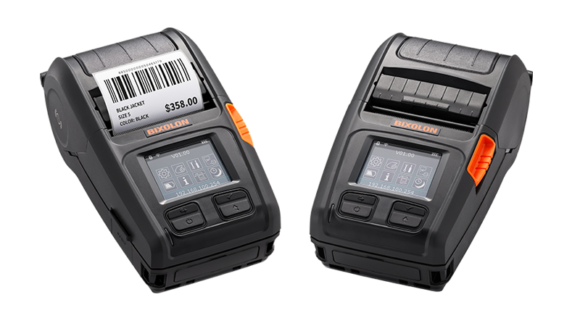

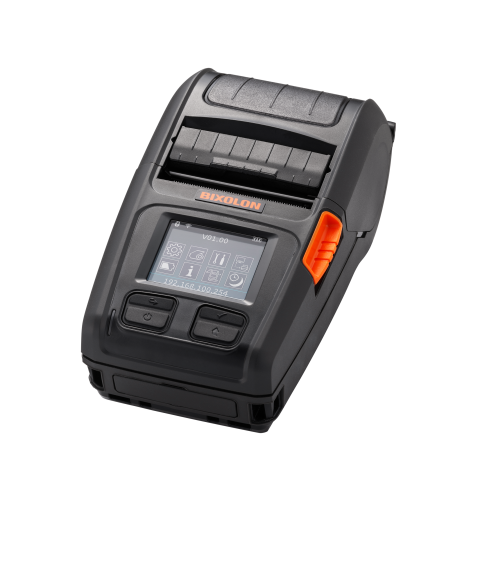

Bixolon XM7-20 Mobile Liner and Linerless Label printer

Overview

The XM7-20 is a compact, yet rugged 2-inch (58mm) premium level Auto-ID Mobile Liner and Linerless Label printer featuring an intuitive design and value add software support.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Fast Liner & Linerless label printing
  • Smart Media Detection™
  • Anywhere Anyfont™ (Unicode)
  • Direct printing from the SAP® Smart Forms
  • BIXOLON Profile Manager XPM™, XCM™
  • Easy Bluetooth Pairing™
  • Built with a large colour display for easy set-up and battery status management
  • Up to 2.1 m / 7 ft. drop rate
  • IP54 water and dust proof

A premium level printer, capable of speeds up to 6ips at 300dpi print resolution, it provides a drop protection of 2.1 metres and an IP54 protection rating. Through a smart battery with universal USB Type-C Power delivery charging, this mobile label printer provides a wealth of battery health information through BIXOLON’s web-based printer profile management software XPM™, guaranteeing consistent performance throughout prolonged operations, making it ideal for Logistics, Manufacturing, Retail and Healthcare printing applications.
A high connective device, the XM7-20 presents USB 2-0 and Serial interfaces as standard, with optional Bluetooth V5.0 Classic (MFi Certification) and WLAN 802.11a/b/g/n wireless technology which can be connected simultaneously. Supporting easy Bluetooth pairing via NFC allows compatibility with major operations including Android™, iOS™ and Windows™. The printer also boasts compatibility with market leading command languages such as SLCS, BPL-Z™, BPL-C™ and BXL/POS to allow for seamless integration with customers’ existing systems.
Boasting a 128 MB SRAM, 256 MB Flash memory as standard and optional 256 MB SDRAM, 512 MB Flash memory enabling the storage of fonts and graphics, alongside firmware upgrades and tools. The XM7-20 can print directly from SAP® Smart Forms and is compatible with a range of label editing applications including BIXOLON’s Label Artist™, Label Artist Mobile™ for iOS™ & Android™, alongside the industry leading Bartender® software.

Print Characteristics
Print Method XM7-40: Up to 5 ips (127 mm/sec - Liner, Linerless)XM7-20: Up to 6 ips (152 mm/sec - Liner, Linerless)
Print Resolution 203dpi
Print Width XM7-40: Up to 104 mm XM7-20: Up to 48 mm
Sensing Paper EndGapBlack MarkPaper Cover OpenPeel-off
Media Characteristics
Media Type XM7-40: Liner, Linerless (Optional)XM7-20: Liner, Linerless (Optional), Notch, Receipt
Media Width XM7-40: 50 ~ 112 mm (1.97 ~ 4.41 inch)XM7-20: 25~58 mm (1.0~2.28 inch)
Media Roll Diameter XM7-40: Up to 66mmXM7-20: Up to 57mm
Media Thickness XM7-40: 0.07~0.15mmXM7-20: 0.07 ~ 0.19mm
Media Inner Core 19mm, 12mm

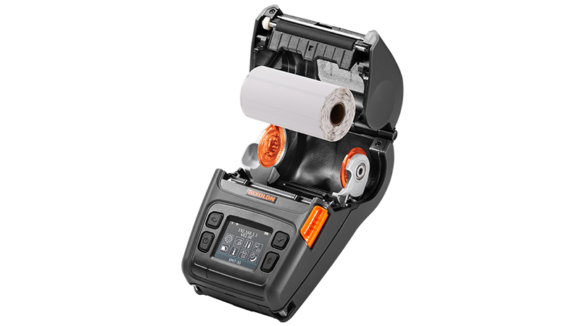

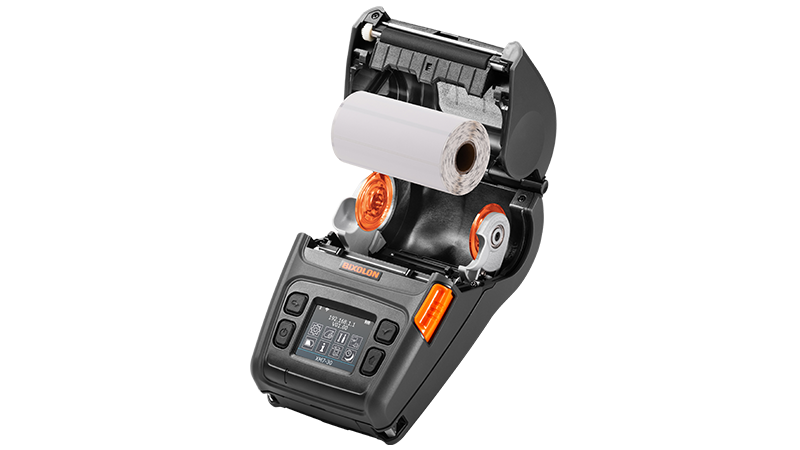

Supply Method Easy Paper Loading
Physical Characteristics
Dimensions(WxDxH) XM7-40: 158 × 186 × 82 mm (6.23 × 7.33 × 3.23 inch)XM7-20: 168.2 x 92.9 x 69.2 mm (6.62 x 3.66 x 2.72 inch)
Weight XM7-40Including battery: approx.1,090 g (2.41 lbs)Paper : approx. 360 g (0.79 lbs)XM7-20Including battery: 600g (1.32 Ibs.) Paper : 120g (0.26 Ibs.)
Electrical USB Type-C Power delivery charging support, EnergyStar CertifiedXM7-407.2 V Li-ion, 6800 mAh (Nominal) Smart Battery, RechargeableXM7-20Standard: 7.3 V Li-ion, 2850 mAh (Nominal), Rechargeable,Optional: 7.2 V Li-ion 3400 mAh (Nominal) Smart Battery, Rechargeable
Peeler Supported
Paper guide Yes (Inner core: 19mm)
Display TFT LCD(IPS, 240 x 320 pixels)
Performance Characteristics
Memory 128 MB SDRAM, 256 MB Flash 256 MB SDRAM, 512 MB Flash (Optional)
Interface Standard: USB V2.0 HS + Serial Optional: USB V2.0 HS + Serial + Bluetooth / WLAN / Dual (Bluetooth + WLAN)---------------------------------------------------Bluetooth: V5.0 (MFi certified)WLAN: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) - WEP40/104, WPA1/2 (PSK, EAP) -----------------------------------------Easy Bluetooth Pairing™ via NFC
Environment Characteristics
Temperature Operating: -15 ~ 50℃ (5 ~ ~ 122℉)Storage: -30 ~ 70℃ (-22 ~ 158℉)
Humidity Operating: 10 ~ 80% RH
Sealing IP54
Drop Rate XM7-40: 1.8 m (6 ft.)XM7-20: 2.1 m (7 ft.)
Software
Emulation SLCS, BPL-Z™, BPL-C™, BXL / POS
Driver/Utility Windows Driver (Europlus/Seagull)Linux / Mac CUPS DriverVirtual COM USB DriverUtility ProgramLabelArtist-II™Bartender ULOPOS/JPOS DriverSAP® Device Driver
SDK/Plugin Android/iOS/Windows SDKLinux SDKChrome SDKXamarin SDKCordova Plugin
Application Label Artist™Mobile (Android,iOS)mPrint App (Android, iOS)mPrint Server (Windows, Android, iOS)
MDM(Optional) BIXOLON Profile Manager - XPM™, XCM™ (Windows, Android)
Fonts/Graphics/Symbologies
Fonts 10 SLCS / One SLCS / 16 BPL-Z™ / One BPL-Z™ / 7 BPL-C™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics Supporting user-defined fonts, graphics, formats, layouts and logos
Barcode Symbologies 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8,Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39
Accessories
Standard XM7-40: Belt Strap, Smart Battery, SMPS, Power Cord, Paper Disk (Inner core : 12mm)XM7-20: Belt Strap, Battery Pack, SMPS, Power Cord, Paper Disk (Inner core : 12mm
Optional XM7-40: Shoulder Strap, Single Battery Charger, Quad Battery Charger, Serial/USB Cable, Fixed Serial/USB CableXM7-20: Shoulder Strap, Single Battery Charger, Quad Battery Charger, Serial/USB Cable, Fixed Serial/USB Cable, Ram mount Vehicle-Holder, Vehicle Charger, 4 Slot Ethernet Cradle (10/100Mbps), Vehicle-Holder, Protective Case
