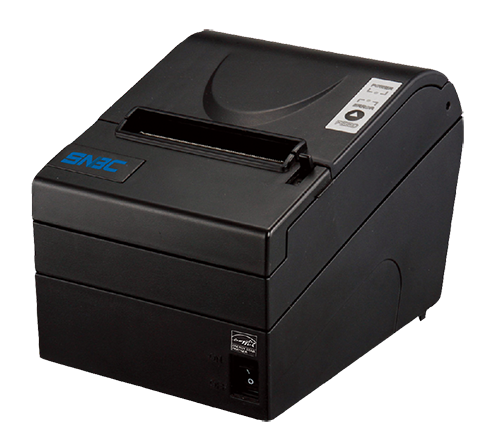

SNBC BTP-R880NP thermal printer

Make an enquiry

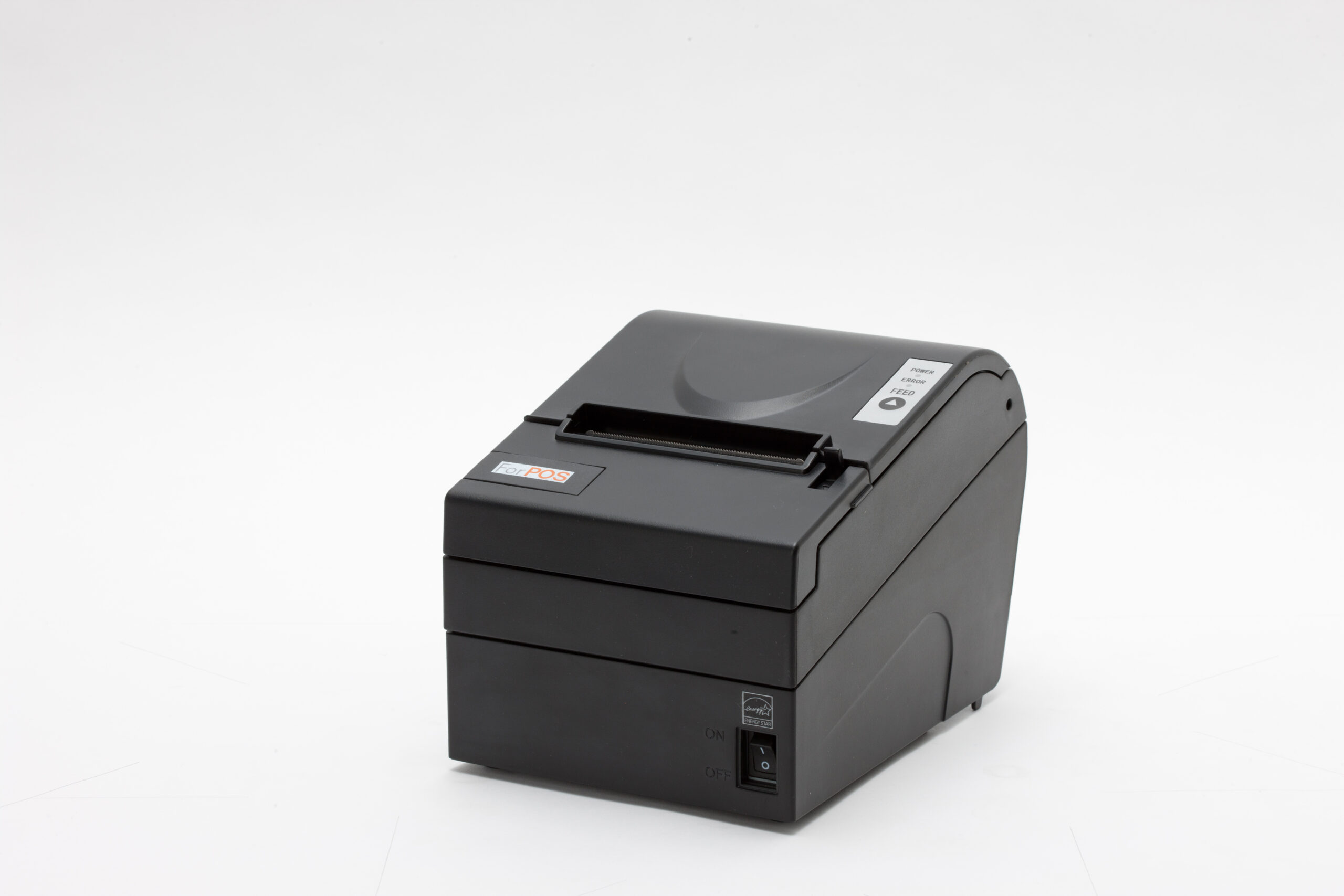

BTP-R880NP POS Printer

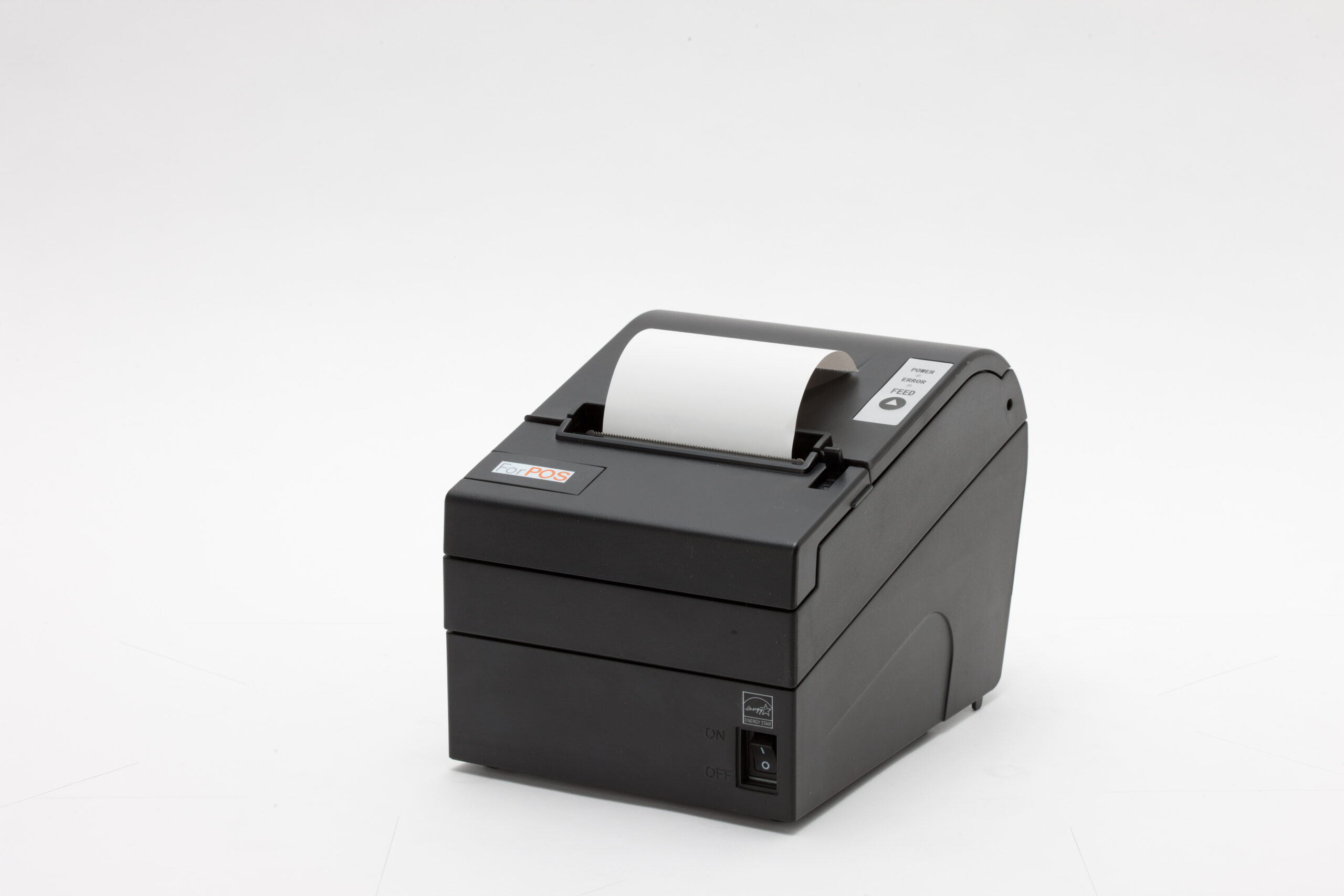

BTP-R880NP POS Printer Printing

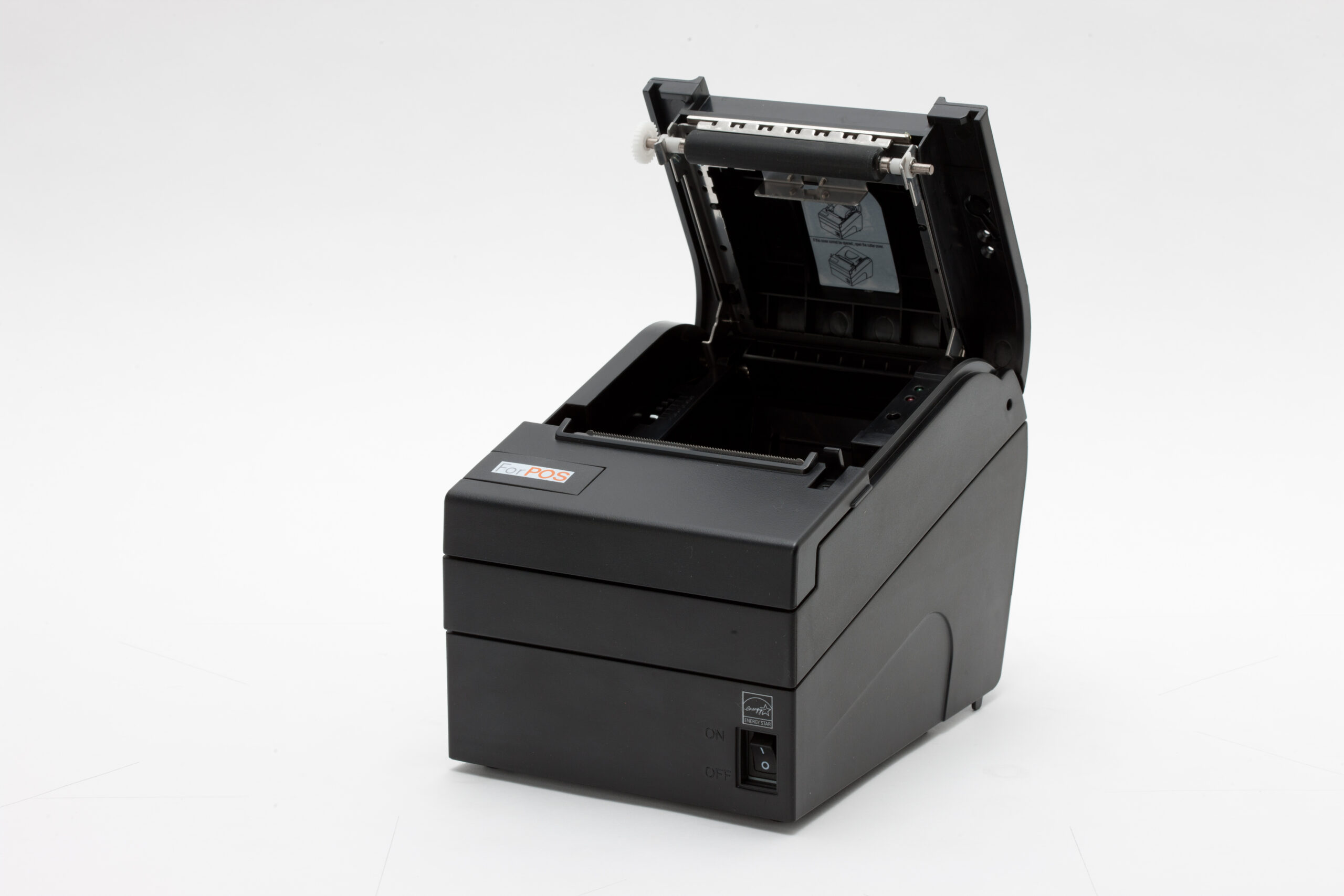

BTP-R880NP POS Printer Open
BTP-R880NP POS Printer Standard

Overview

The SNBC BTP-R880NP thermal printer features a top feeding paper exit and high speed. The BTP-R88oNP thermal printer is therefore ideal for retail, hospitality, charity and leisure environments. Part of the SNBC BTP range of printers.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Top paper exit
  • Print speed of up to 310mm/s
  • USB, Serial and Ethernet interface as standard
  • Drop and print paper loading
  • Grey scale printing
  • Internal buzzer (Adjustable volume)
  • Wall mountable (no bracket required)
  • Additional options: splash proof cover and herald alarm

This printer has a print speed of  310mm per second and is ENERGY STAR qualified making it a cost efficient purchase.

BTP-R880NP features a wall mountable design, internal buzzer with adjustable volume and a drop and print paper loading mechanism for ease of use.

The printer comes with USB, Serial and Ethernet interface as standard

Additional options include splash proof cover to protect paper exit in hospitality environments and herald alarm for particularly noisy environments like kitchens and bars. 1-2 cash drawers (24V) can be powered via this printer. Available in black or white.

This printer has the capability of an integrated company logo plate for promotion of your brand.

BTP-R880NP Specification
Print method Direct thermal line printing
Resolution 203 x 180DPI
Print speed Max. 200mm/s
Print width Max. 72mm
Interface Standard interface: RS232 serial, USB, Ethernet
Cash drawer control 1-2 cash drawer
Barcodes 1D:UPC-A, UPC-E, JAN8 (EAN8), JAN13 (EAN13) CODE 39, CODE 93, CODE 128, ITF, CODABAR 2D:PDF417, QR, Maxicode, GS1-DataBar
Fonts Font A 12 x 24, Font B 9 x 17, Kanji 24 x 2
Character Set 95 Alphanumeric, 13 types international characters, 128x56 graphic (including user-defined page) Traditional/Simplified Chinese, Thai, Japanese, Korean (optional)
Character modification Rotate (0°, 90°, 180°, 270°) underline, emphasize, reverse, enlarge (1-6X)
Graphic printing Bitmap image downloading and direct bitmap image print. RAM bitmap download: buffer size 128KB, FLASH bitmap download: buffer size 512KB
Paper type Continuous print, Marked paper
Paper thickness 82.5±0.5mm, 80±0.5mm, 76±0.5mm, 69.5±0.5mm, 57±0.5mm
Paper width 0.06~0.1mm
Paper roll OD 83mm (Max.)
Paper cut Full cut, Partial cut, Tear off
Input 100~240VAC, 50~60Hz
Output 24V ± 5%DC, 1.5A
Operation conditions 5°C to 45°C, 20% to 90%RH (40°C)
Storage conditions -40°C to 60°C, 20% to 93%RH (40°C)
Print head lifetime 150Km (standard test condition)
Cutter lifetime 2,000,000 cuts (standard test condition)
Dimensions 145(w) x 195(L) x 141(H)
Weight 1.7Kg
Standards CE, CB, FCC, UL

Accessories

Herald alarm / Buzzer for SNBC Printers

Herald Alarm

  • Alarm triggered via the cash drawer port of the printer
  • Alarm triggered via the cash drawer port of the printer
  • Programmable flash-light levels
  • Easy to fit
