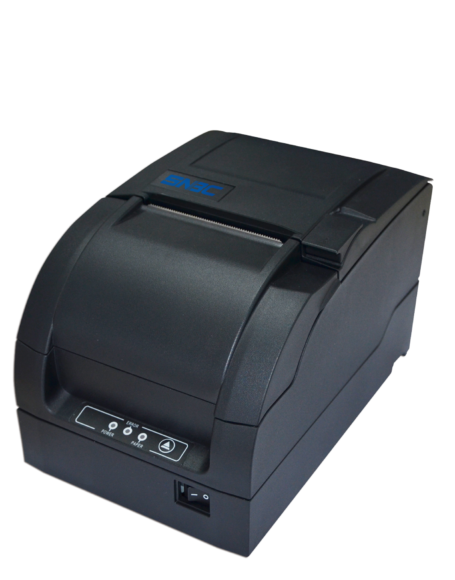

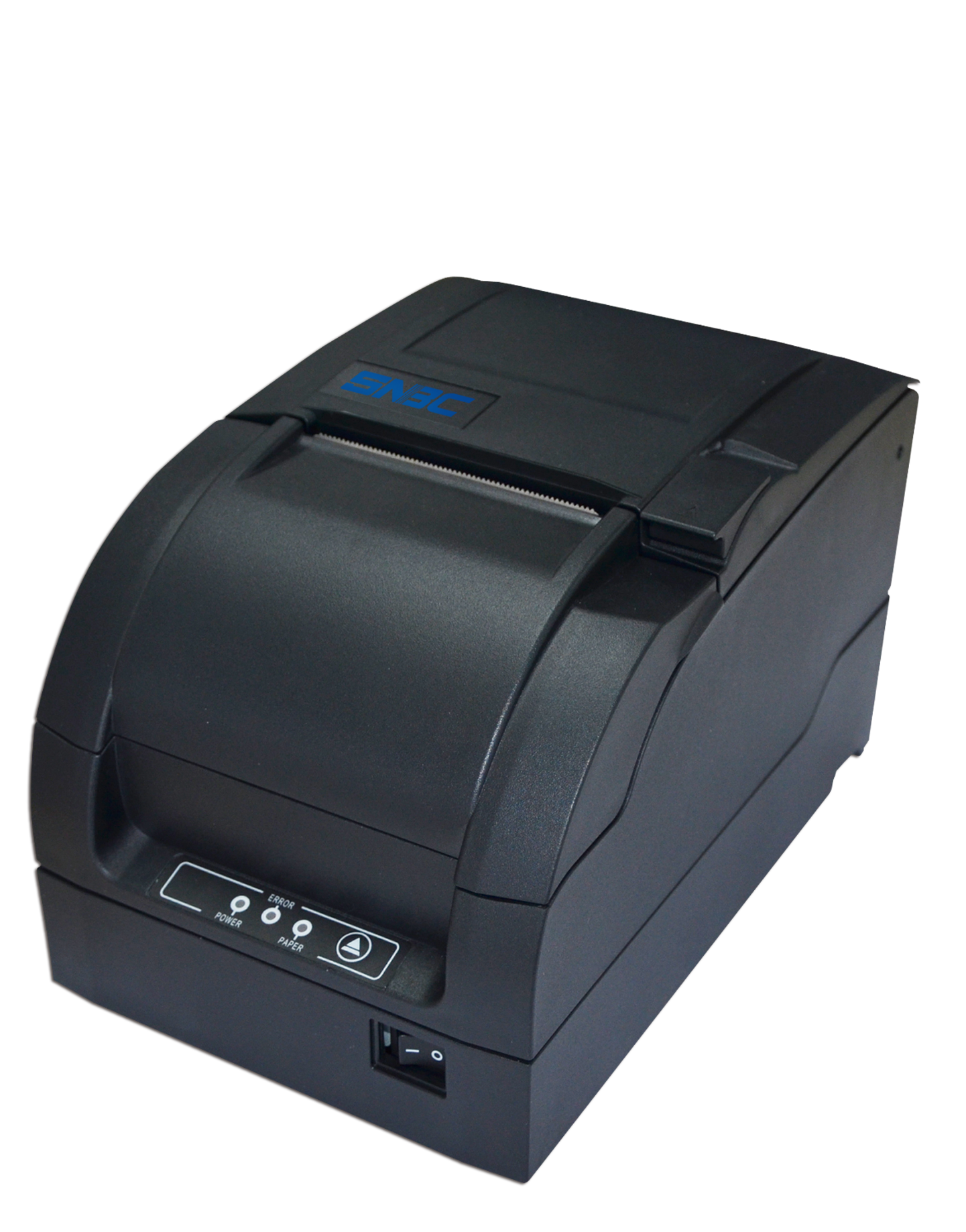

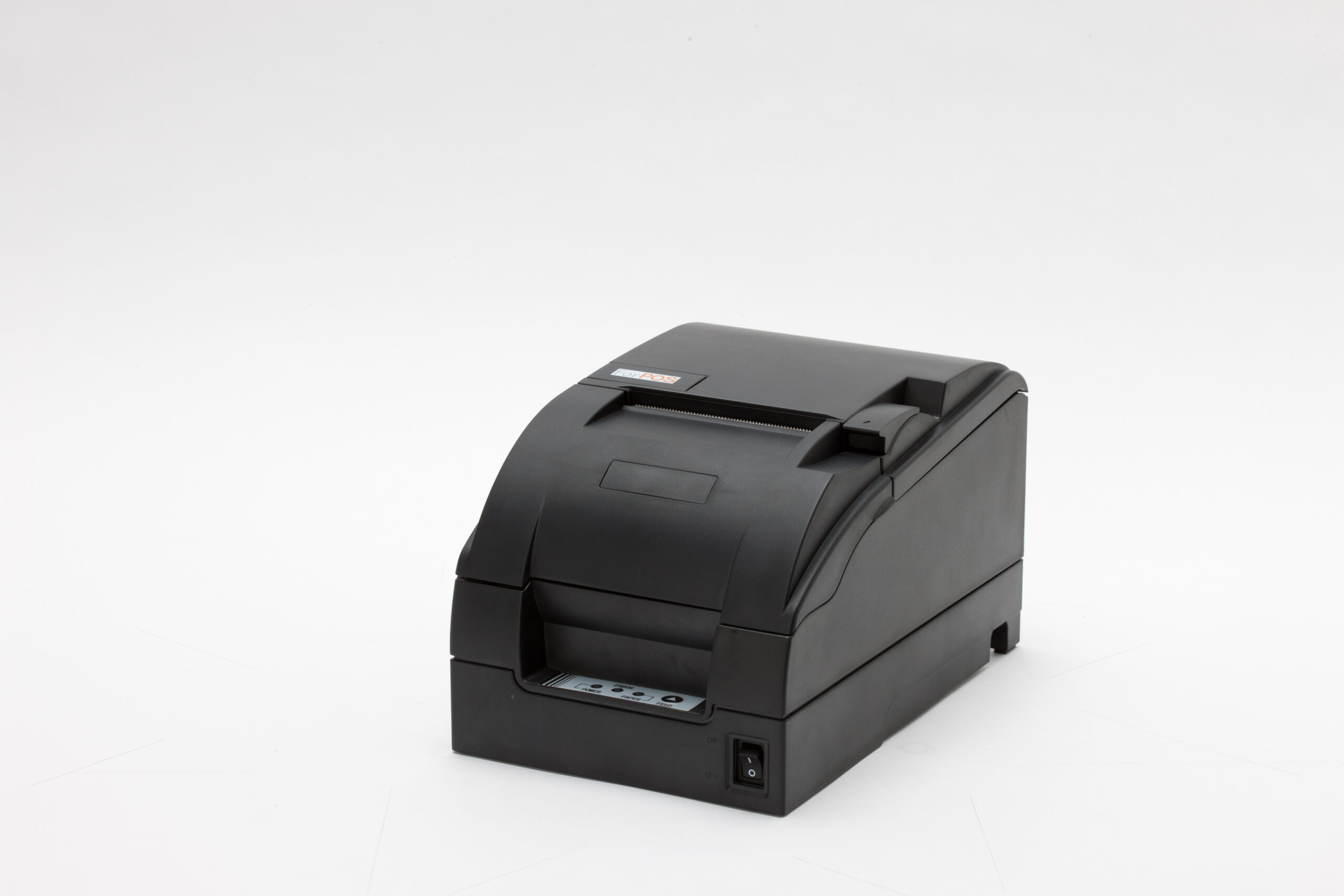

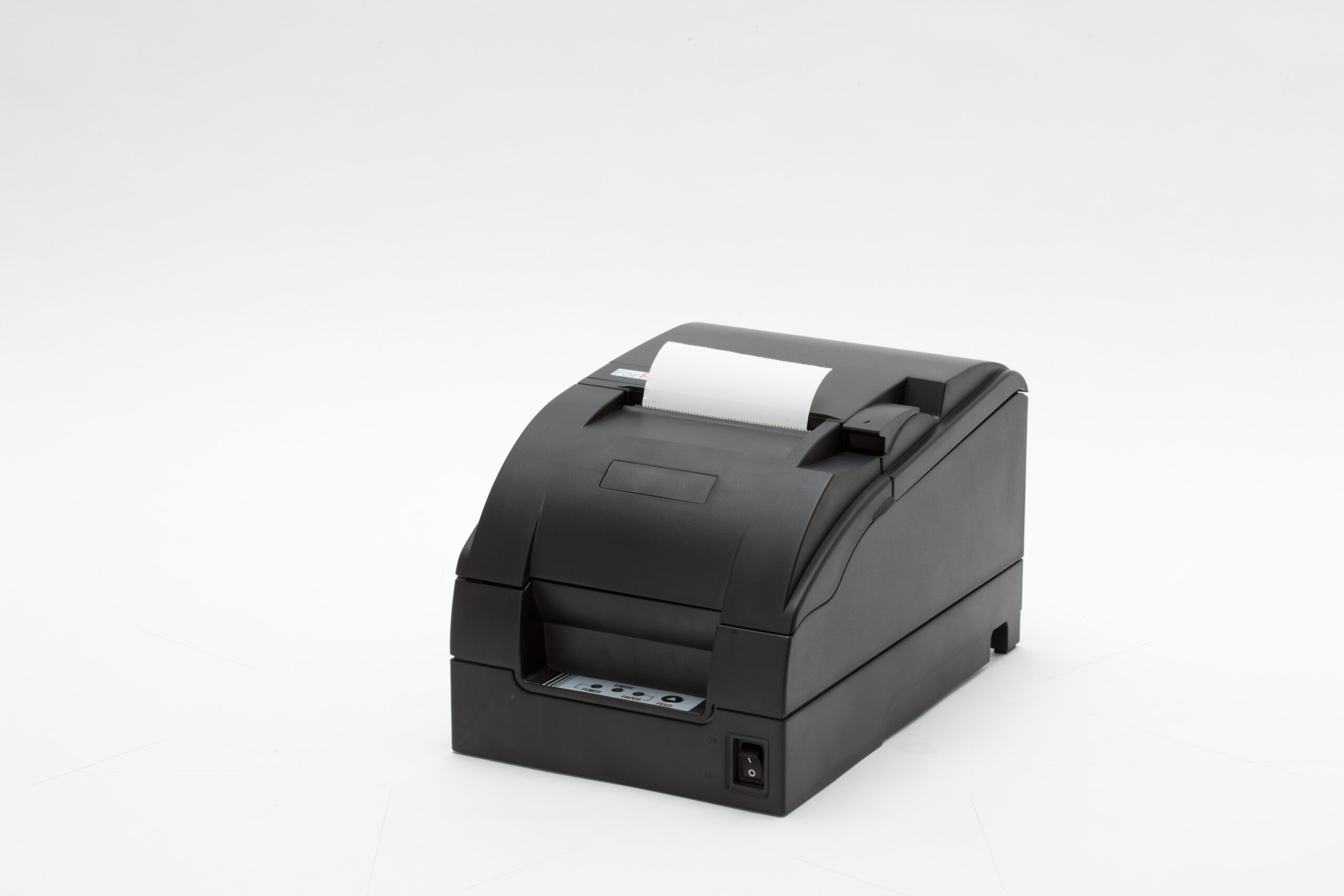

SNBC BTP-M300 Dot Matrix Printer

Overview

SNBC BTP-M300 Dot Matrix Kitchen Printer is a trusted and reliable option used commonly within the retail and hospitality industries. The BTP-M300 Dot Matrix Printer has a print speed of 400 dots/line and features an easy-to-use drop and print paper loading mechanism. The BTP-M300 Kitchen Printer is part of the SNBC BTP range of printers.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Dot matrix impact printer
  • USB, Serial and Ethernet interface as standard
  • Prints in two colours - black and red
  • Supports multi-layer paper

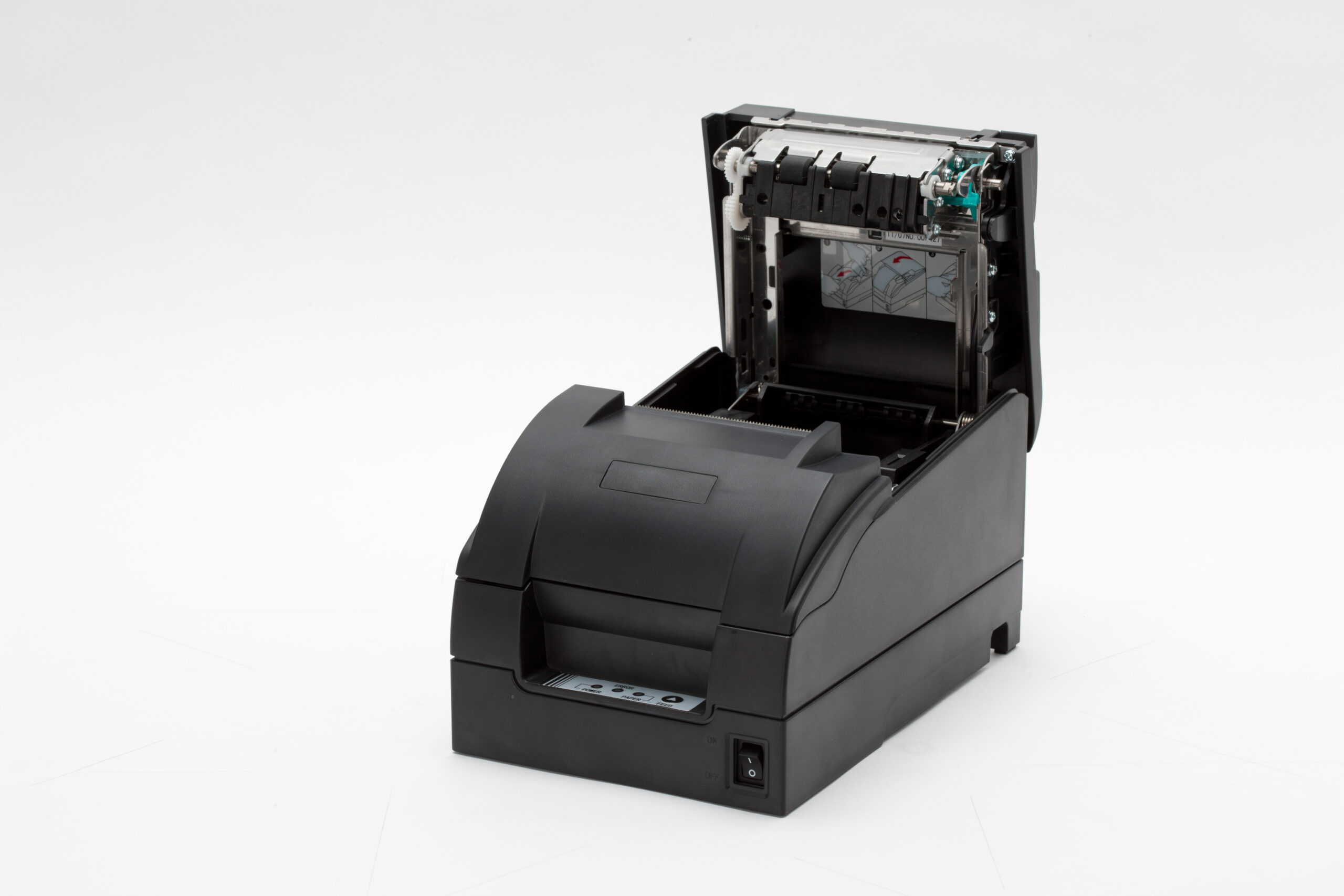

  • Easy, drop in paper loading system
  • Compatible with various paper widths
  • Cash drawer port
  • Compatible with a herald alarmInternal power supply

The BTP-M300 printer is the ideal heavy-duty dot matrix/kitchen printer. 9-pin serial impact dot matrix receipt printer offers high quality, high speed and stable performance. This printer is favorable for hot environments such as kitchens due  its dot matrix design, meaning the print will remain clear to read unlike thermal printers where the paper is a special fine paper that is coated with a chemical that changes color when exposed to heat. It comes with a paper cutter and can be used for dry cleaning ticket rolls.

This thermal printer is ENERGY STAR qualified making it a cost efficient purchase.  BTP-M300 comes with a wall mounting facility built in and spill proof cover available.

BTP-M300 has a print speed of 400 dots/line and features an easy-to-use drop and print paper loading mechanism.

This printer has USB, Serial and Ethernet interface as standard

BTP-M300 printer offers all the same qualities as the BTP-M280 but has an internal power supply whereas the BTP-M280 has an external PSU. An internal power supply is advantageous keeping cables to a minimum. The BTP-M280 has been discontinued and replaced with the BTP-M300.

This printer has the capability of an integrated company logo plate for promotion of your brand.

BTP-M300 Specification
Print method Dot matrix
Resolution 80 x 144 DPI
Print speed 4.7LPS
Print width Max. 400 (half dots)
Interface Standard interface: RS232 serial, USB, Ethernet
Cash drawer control 1-2 cash drawers
Character Set 95 Alphanumeric, 14 types international characters, Traditional/Simplified Chinese
Character size Font A(9x9), Font B:(7x9), Kanji(16x16)
Columns Font A:35, Font B:42, Chinese:20
Receive buffer 8K
NV bit image data area 128K
Paper type Continuous print, Marked paper
Paper thickness Single layer: 0.06-0.085mm, Multi-layer paper: (1 original and 1 copy): 0.05-0.08mm, total thickness <0.14mm
Paper width 80±0.5mm, 76±0.5mm, 69.5±0.5mm, 57.5±0.5mm
Paper roll OD 83mm (Max.)
Paper cut Full cut, Partial cut, Tear off
Ribbon Specification ERC-38
Ribbon lifetime ERC-38(P): 4,000,000 characters, ERC-38(B): 3,000,000 characters, ERC-38(B/R): Black 1,500,000 characters, Red:750,000 characters
Input 100~240V AC, 50~60Hz
Output 24V ± 5%DC, 1.5A
Print head lifetime 300,000,000 impacts
Cutter lifetime 1,500,000 cuts (partial cuts, paper thickness 0.07mm), 1,000,000 cuts (full cut, thickness 0.07mm)
MCBF 18,000,000 lines
MTBF 180,000,000
Operation conditions 5°C to 45°C, 20% to 90%RH (40°C)
Storage conditions -40°C to 60°C, 20% to 93%RH (40°C)
Dimensions 160 (W) x 245 (D) x 155 (H) mm
Weight 3.2KG
Standards CE, CB, FCC, UL
