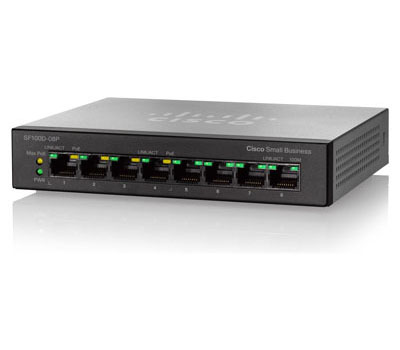

Cisco 8-Port desktop SG100D-08 Switch

Make an enquiry
Cisco 8-Port desktop SG100D-08 Switch

Overview

This 8-Port desktop SG100D-08 Switch is designed specifically for small businesses that need a basic network. All with automated features that get you up and running in minutes. Part of our Cisco range of Accessories.

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Available in desktop or rack mount models
  • Sets up in minutes with no software to install or configuration requirements
  • Automatic cable detection
  • Power-saving technology
  • Flexible network design mini Gigabit interface converter (GBIC) expansion slots

The Cisco 8-Port desktop switch offers high performance capabilities with a powerful network performance it gives networks a boost of speed and capacity to support bandwidth-intensive applications. This handy 8-Port Gigabit Desktop Switch is an eco-friendly solution as it optimizes power usage to be energy efficient without compromising performance.

Technical Data Cisco SG100D-08
Device Type 8 Port unmanaged - switch
Form Factor Desktop
Ports 8 x 10/100/1000
Power over Ethernet (PoE) Ports
MAC Addresses 8000 entries
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Features Flow control, layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, Quality of Service (QoS), fanless
Jumbo Frame Support Yes, 9216 bytes
Performance Switching capacity: 10 Gbps, Forwarding performance (64-byte packet size): 7.4 Mpps
Status Indicators System, link/activity
Interfaces 8 x 10Base-T/100Base-TX/1000-TX - RJ45
Priority Levels 4 hardware queues
Scheduling Priority queuing and weighted round-robin (WRR)
Class of Service 802.1p priority based

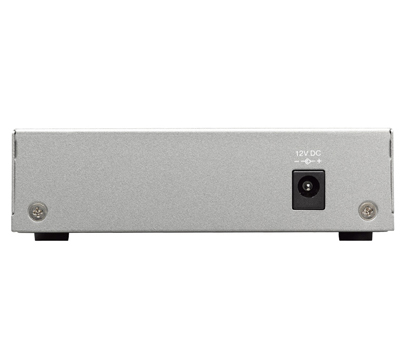

Power Device Power adapter - external
Voltage Required DC 12 V
Electric Current Required 1.0A (operating)
Service & Support Limited Lifetime warranty
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 158°F (-20° to 70°C)
Operating Humidity 10% to 90%, relative, non condensing
Storage Humidity 10% to 90%, relative, noncondensing
