Cisco 5-Port desktop SG100D-05 Switch

Make an enquiry

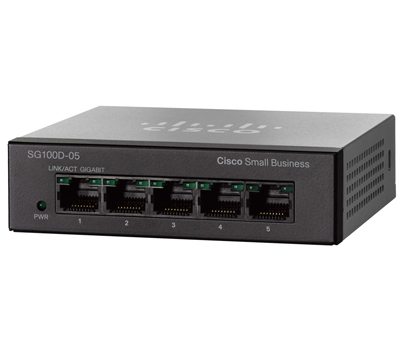

Cisco 5-Port desktop SG100D-05 Switch

Overview

This SG100D-05 Switch 5-Port desktop switch is designed specifically for small businesses that need a basic network. All with automated features that get you up and running in minutes. Part of our Cisco range of Accessories.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Available in desktop or rack mount models
  • Sets up in minutes with no software to install or configuration requirements
  • Automatic cable detection
  • Power-saving technology
  • Flexible network design mini Gigabit interface converter (GBIC) expansion slots

The Cisco 5-Port desktop switch offers high performance capabilities with a powerful network performance it gives networks a boost of speed and capacity to support bandwidth-intensive applications. This handy 5-Port Gigabit Desktop Switch is an eco-friendly solution as it optimizes power usage to be energy efficient without compromising performance

Technical Data Cisco SG100D-05
Device Type 5 Port unmanaged - switch
Form Factor Desktop
Ports 5 x 10/100/1000
Power over Ethernet (PoE) Ports
MAC Addresses 8000 entries
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Features Flow control, layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, Quality of Service (QoS), fanless
Jumbo Frame Support Yes, 9216 bytes
Performance Switching capacity: 10 Gbps, Forwarding performance (64-byte packet size): 7.4 Mpps
Status Indicators System, link/activity
Interfaces 5 x 10Base-T/100Base-TX/1000-TX - RJ45
Priority Levels 4 hardware queues
Scheduling Priority queuing and weighted round-robin (WRR)
Class of Service 802.1p priority based
Power Device Power adapter - external
Voltage Required DC 12 V
Electric Current Required 1.0A (operating)
Service & Support Limited Lifetime warranty
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 158°F (-20° to 70°C)
Operating Humidity 10% to 90%, relative, non condensing
Storage Humidity 10% to 90%, relative, noncondensing
Dimensions Width 4.3 in, Depth 3.9 in, Height 1.2 in, Weight 0.32 lbs
