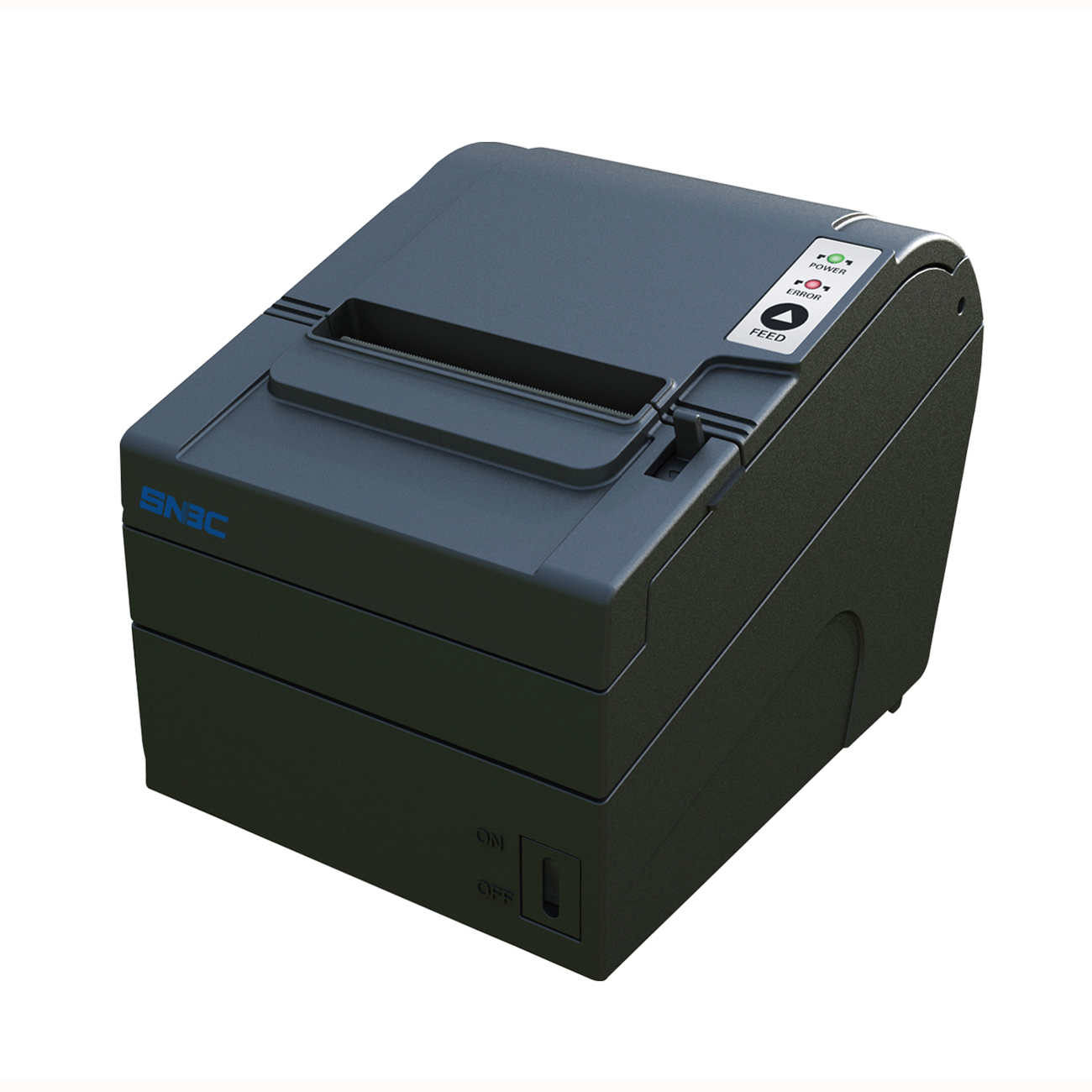

SNBC BTP-R180II thermal printer

Overview

SNBC BTP-R180II is a high speed, low noise,  thermal printer featuring a top feeding paper exit and a print speed of up to 200mm/s this printer is a highly recommended choice for the majority of retail, hospitality, charity and leisure environments.

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Top paper exit
  • Print speed of up to 200mm/s
  • Multi-interface on board as standard: RS232 serial, USB and Ethernet
  • Drop and print paper loading
  • Two colour and grey printing available
  • Wall mountable (no bracket required)
  • Internal buzzer (Adjustable volume)
  • Additional options: splash proof cover and herald alarm

The BTP-R180II comes with multiple interfaces, including USB, Serial and Ethernet as standard.

This printer is designed for ease of use and has a drop and print paper loading mechanism.

BTP-R180II shares all the same qualities as the BTP-R880NP but only connects to 1 cash drawer whereas the BTP-R880NP connects to 2. The print speed is slower by 20mm/s and print width is 72mm as opposed the BTP-R880NP which has a print width of 80mm.

R180 Specification
Print method Direct thermal printing
Resolution 180 x 180DPI
Print speed Max. 200mm/s
Print width Max. 72mm
Interface Standard interface: RS232 serial, USB, Ethernet
Cash drawer control 1 cash drawer
Barcodes 1D:UPC-A, UPC-E, JAN8 (EAN8), JAN13 (EAN13) CODE 39, CODE 93, CODE 128, ITF, CODABAR 2D:PDF417, QR, Maxicode, GS1-DataBar
Fonts Font A 12 x 24, Font B 9 x 17, Kanji 24 x 2
Character Set 95 Alphanumeric, 13 types international characters, 128x56 graphic (including user-defined page) Traditional/Simplified Chinese, Thai, Japanese, Korean (optional)
Character modification Rotate (0°, 90°, 180°, 270°) enlarge (1-6X)
Graphic printing Bitmap image downloading and direct bitmap image print. RAM bitmap download: buffer size 128KB, FLASH bitmap download: buffer size 512KB
Paper type Continuous print, Marked paper
Paper thickness 82.5±0.5mm, 80±0.5mm, 76±0.5mm, 69.5±0.5mm, 57±0.5mm
Paper width 0.06~0.08mm
Paper roll OD 83mm (Max.)
Paper cut Full cut, Partial cut
Input 100~240VAC, 50~60Hz
Output 24V ± 5%DC, 1.5A
Operation conditions 5°C to 45°C, 20% to 90%RH (40°C)
Storage conditions -40°C to 60°C, 20% to 93%RH (40°C)
Print head lifetime 150Km
Cutter lifetime 1,500,000 cuts (full cut, paper thickness:0.065mm)
Dimensions 145(w) x 195(L) x 141(H)
Weight 1.45Kg
Standards CE, CB, FCC, UL
