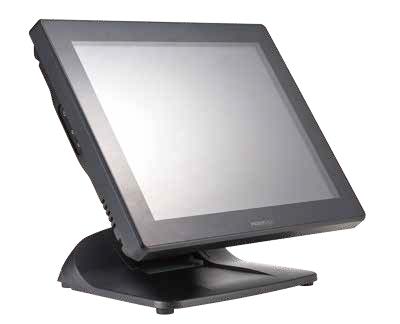

Posiflex XT-5515 EPOS terminal

Overview

The Posiflex XT-5515, the industries fastest, fanless i5 or i7 EPOS terminal with a fully adjustable stand to suit your retail and hospitality environment.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15" true-flat projected capacitive touch screen
  • Intel® Core i5-4570TE, 2.7GHz (up to 3.3GHz) and 4MB Cache) Fanless or Intel® Core i7-4770TE, 2.3GHz (up to 3.3GHz) and 8M Cache Fanless
  • Up to 16Gb RAM
  • 500Gb HDD or 60Gb SSD
  • Fully adjustable stand and viewing options
  • Tidy cable management
  • IP65 rated

Sleek Look
Slimmer than ever! Every curve and detail of the XT-5515 is carefully thought out to make itself one of the most visually desirable terminals in the market.

Multi-Position Folding Base
The patented foldable base of the XT-5515 enables users to adjust the screen to a height and angle of their choice, providing unparalleled flexibility. (U.S. Patent 9004436)

Powerful Performance
High-end CPU selection up to Intel Core i7 to choose, which delivering incomparable performance and powerful enough to process anything throws at it without even breaking a sweat.

 Management & Security
The XT-5515 comes with management and security features in Intel AMT, TPM and RAID.

Fanless Design
Solve the fan maintenance issue and provide silent mode operation, which is ideally suited for high-end boutique stores or hospital environments.

 GEN8E Base
Optional GEN8E Base (U.S. Patent 9004436) that integrates internal power adaptor and PoweredUSB port into the base stand, which keeps counters clutter-free.

Specification XT-5515
Processor Intel Haswell Core i5-4570TE CPU, up to 3.30 GHz, 4M Cache; Intel Haswell Core i7-4770TE CPU, up to 3.30 GHz, 8M Cache
System Memory DDR3L SO-DIMM x 2, max. 16GB
Storage Device SATA Storage x 2, SATA HDD x 2
Power Supply 12V / 130W
OS Support Windows 7 / POSReady 7 / Windows Embedded 8.1 Industry / Linux per request
LCD Display 15" TFT LCD,
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
Resolution 1024 x 768 resolution
I/O Expansion
Serial Port 6, DB9 x 2 + RJ50 x 2, pin header x 2 from service window, 5V support on all COM ports, 12V support on COM 1 to COM 4
Parallel Port 1, via optional conversion cable through service window
Standard USB Port 6, USB 3.0 x 2 + USB 2.0 x 4
PoweredUSB Port Optional 24V x 1 + 12V x 3 via GEN8E base
LAN Port 10/100/1000 Mb x 2
Display Port VGA x 1, 12V support for Posiflex monitors; mini-DP C1 on service window
CR Port 1, control 2 CR via optional Y-cable
PS/2 Port 1, via optional conversion cable through service window
UPS Port Yes
Audio Internal 2W speaker x 1 + Line-out
Expansion Slot Mini-PCIe slot x 1
Physical Dimension
Dimension (W x D x H in mm) 372 x 320 x 252.7
Weight (N. W. in kg) 5.86
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD); 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)"
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi Optional mini-PCIe WiFi/BT module
