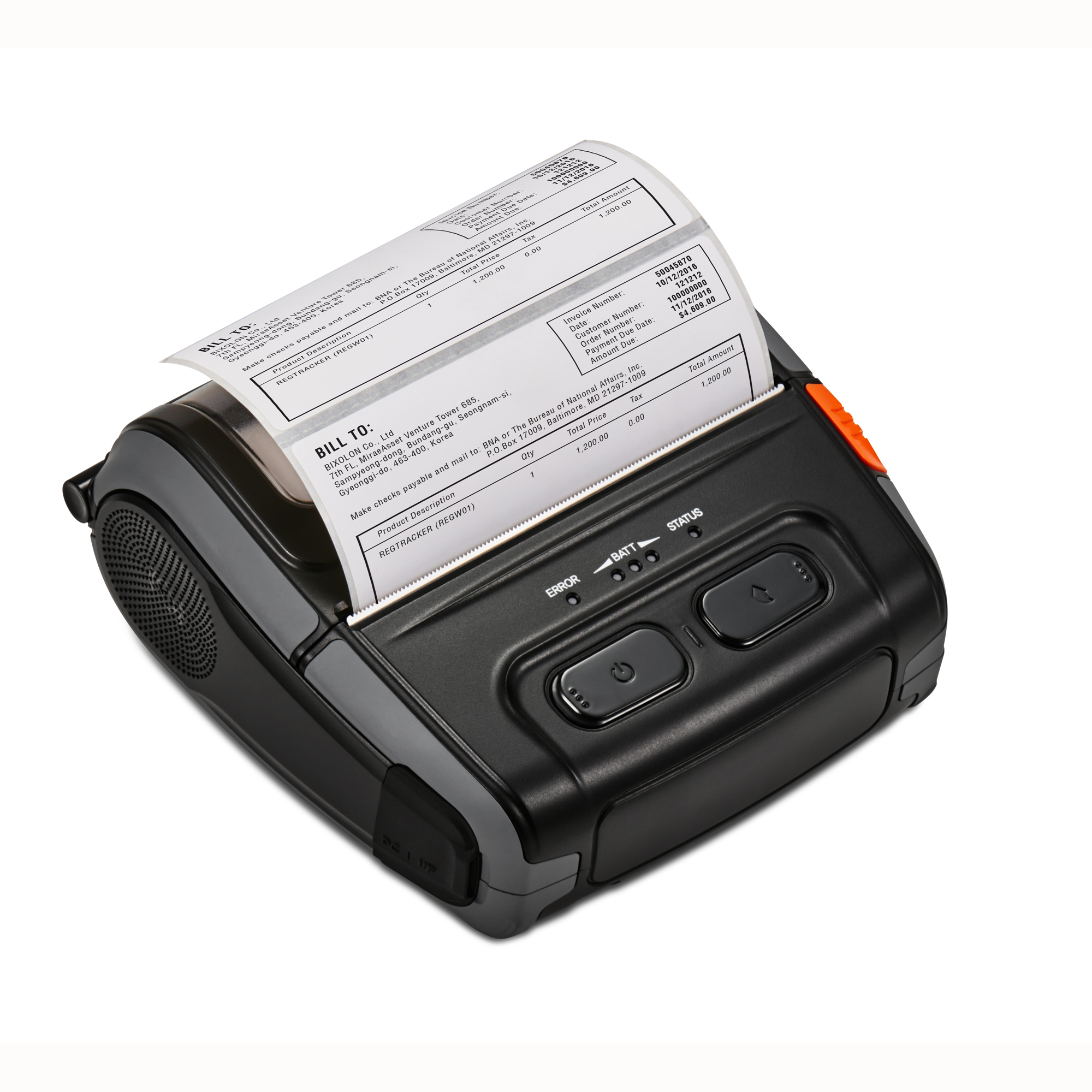

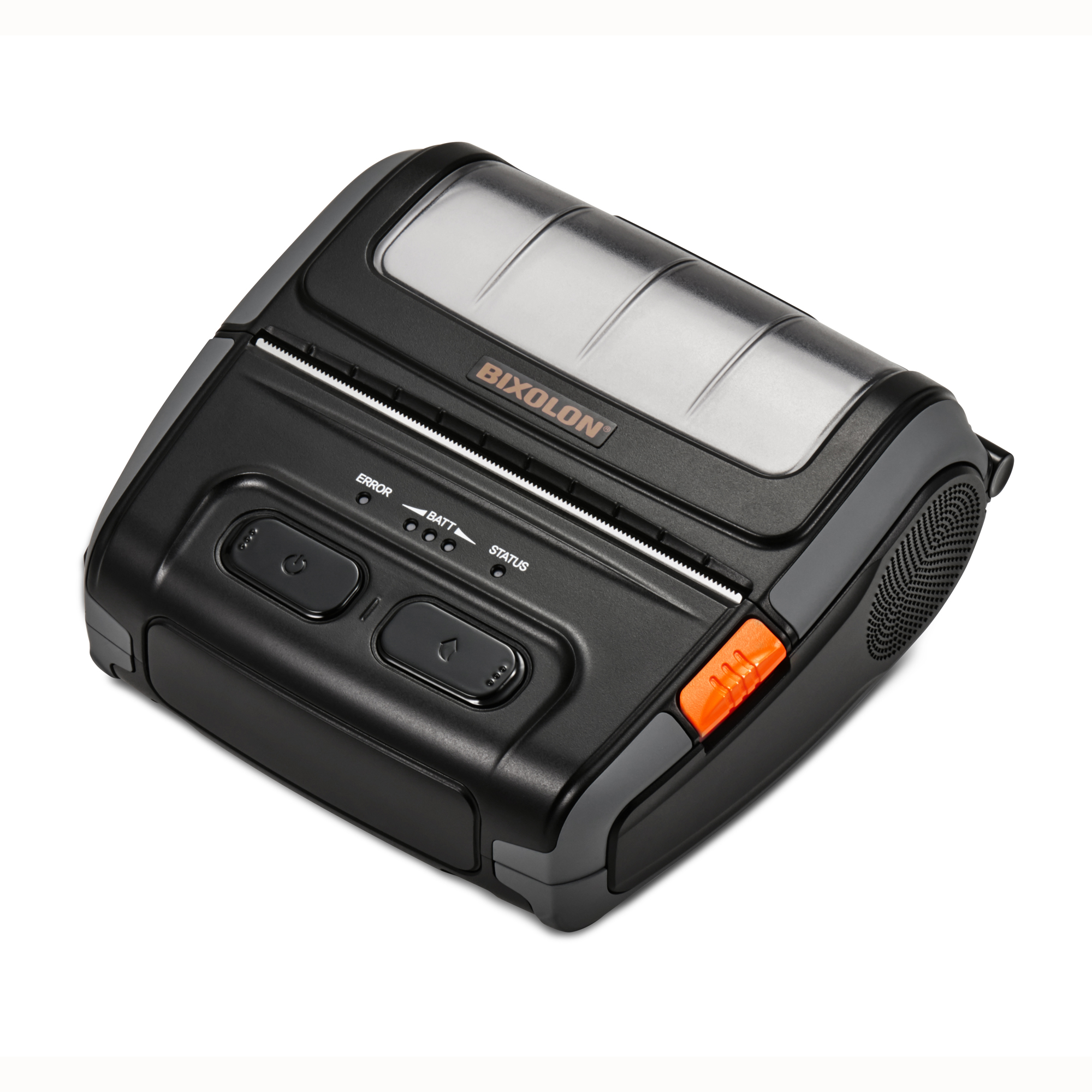

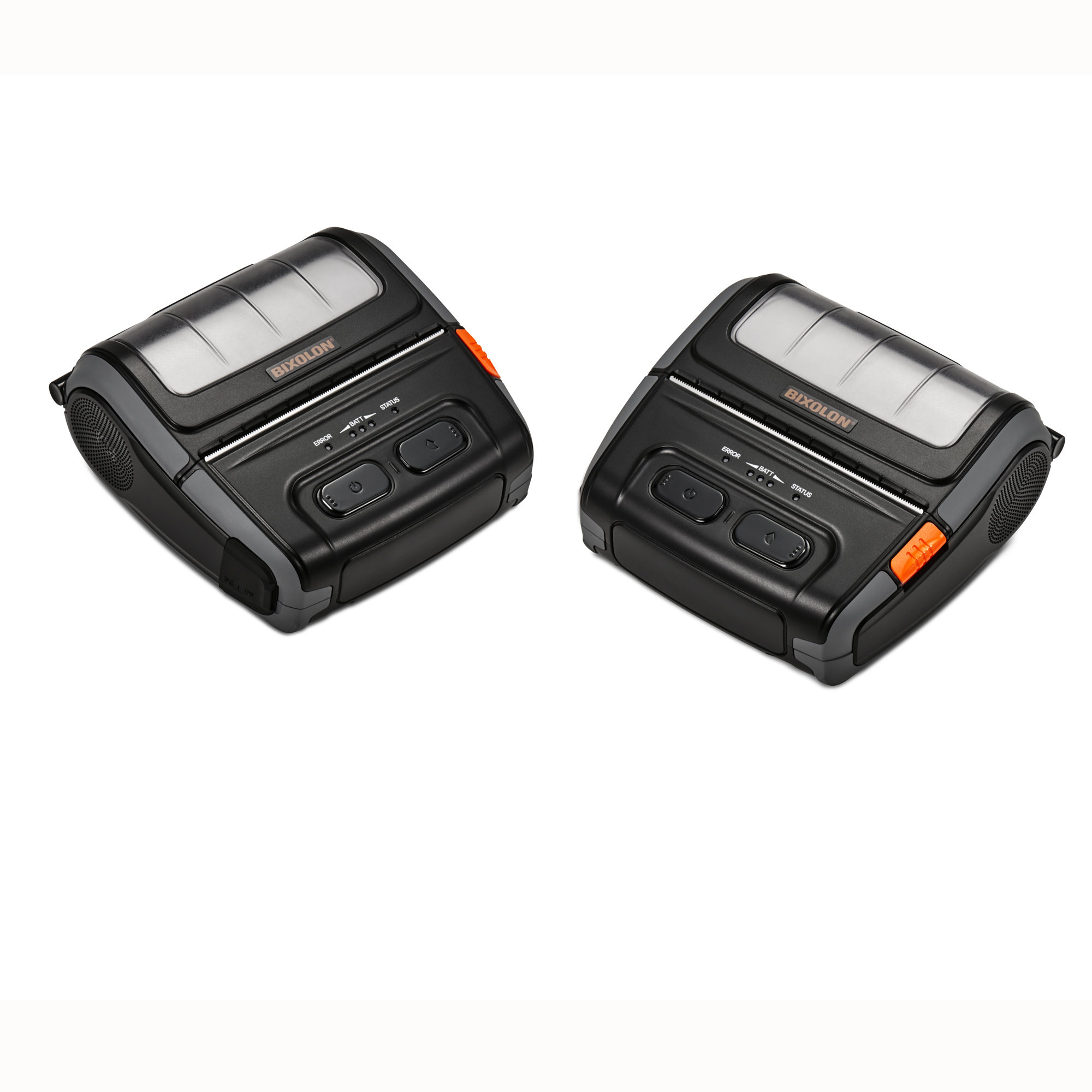

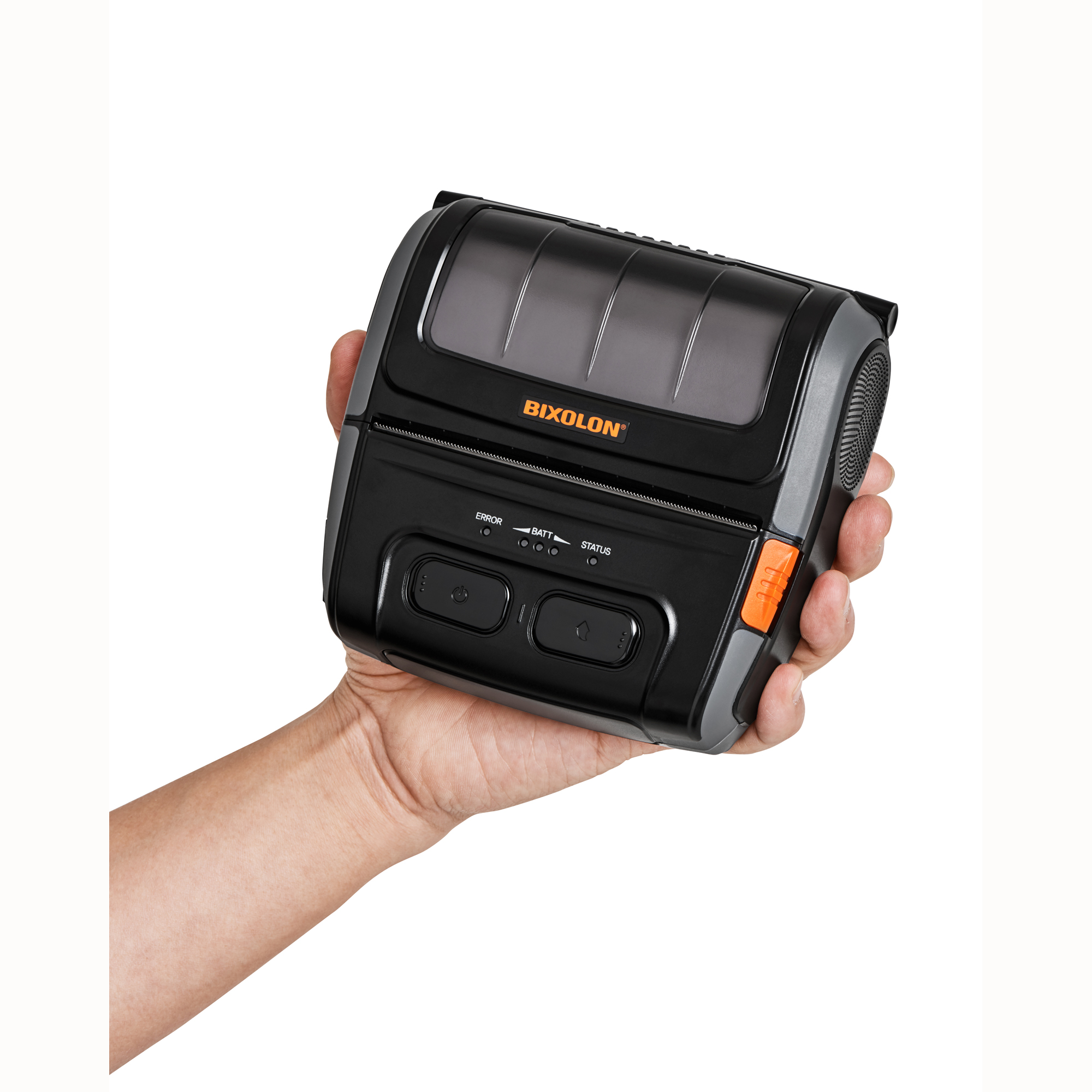

Bixolon SPP-R410 mobile printer

Overview

The Bixolon SPP-R410 4 inch mobile receipt and label printer offers enhanced optimization for a range of industries including: Retail, Hospitality, Transport & Logistics, Manufacturing, Aviation and Healthcare. Drivers and utilities can be found here, see more about the Bixolon SPP-R410 in it's YouTube Showcase.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 4” (112mm) durable mobile printer
  • Serial / USB/ Bluetooth / Wi-Fi connectivity – compatible with Apple iOS™, Android® & Windows® operating systems
  • Supporting Easy Bluetooth Pairing™ via embedded NFC tag enabling auto pairing
  • Compact, ergonomic design (530g)
  • 56-hour stand by time once fully charged (Bluetooth model in power save mode)
  • Dual mode: receipt printing or label printing
  • Splash and dust resistant IP54 rated with 1.8 metre drop ability

Delivering easy, seamless connectivity, the SPP-R410 features either USB, Bluetooth or Wi-Fi communication technology. Supporting Easy Bluetooth Pairing via an embedded NFC tag enabling easy auto pairing with Apple iOS™, Android™ Symbian™ & Windows® smart devices, alongside Apple MFi iAP2 certification.

Printing at speeds up to 90mm/sec (receipt) at a consistent high 203dpi print quality for text, graphics and barcodes. The SPP-R410 provides 65-hour stand by time once fully charged (Bluetooth model in power save mode), supporting continuous printing of 162 meters (6 rolls of 57mm diameter paper). Boasting a 1.8 metre drop certification and IP54 dust and water resistance rating. Operating in an extreme temperature range of +50°C to -15°C due to its integrated temperature sensor. The 4” mobile printer with a 2 year warranty (including the print head) is fully functional in the harshest of environments.

SPP-R410 Specification
Print Method Direct Thermal
Print Speed Up to 90 mm/sec (Receipt) Up to 60 mm/sec (Linerless) 12.5% pattern Print Resolution 203dpi
Print Width Up to 104 mm
Sensor Sensor Paper End Paper Cover Open Black Mark Gap
Media Type Receipt, Label, Linerless (Optional)
Media Width 112 mm / 105 mm (Optional)
Media Roll Diameter Up to 57 mm
Media Thickness 0.07 ± 0.005 mm
Supply Method Easy Paper Loading
Dimensions (W x D x H) 143.0 x 138 x 66 mm (5.63 x 5.44 x 2.60 inch)
Weight Including battery: 530 g (1.17Ibs.) Paper : 242 g (0.53 lbs.)
Battery 7.4 V Li-ion, 2,600 mAh, Rechargeable Charging time: Up to 4.0 hrs
Memory 64 Mbit SDRAM, 32 Mbit FlashROM
Interface Options Standard: USB V2.0 FS + Serial Optional: USB V2.0 FS + Serial + Bluetooth V4.1 (Classic + LE) / WLAN 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) – WEP40/104, WPA1/2(PSK, EAP) * Easy Bluetooth Paring™ via NFC
Temperature Operating: -15 ~ 50℃ (5 ~ 122℉) Storage: -30 ~ 70℃ (-22 ~ 158℉)
Humidity Operating: 10 ~ 80% RH
Sealing IP54
Drop Rate 1.8 m (6 ft.)
Emulation BXL / POS
Driver/Utility Windows Driver, OPOS/JPOS Driver, Linux CUPS Driver, Utility Program
SDK iOS SDK , Android SDK, Windows SDK, Linux SDK
Character Size Font A: 12 x 24 Font B: 9 x 17 Font C: 9 x 24 KOR, CHN, JPN: 24 x 24
Characters Per Line Font A: 69 Font B, C: 92 KOR, CHN, JPN: 34
Character Sets Alphanumeric: 95 Expanded Graphics: 128 x 33 page International: 32
Graphics Supporting user-defined fonts, graphics, formats, layouts, and logos
Barcode 1D: Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Aztec, Data
Symbologies Matrix, GS1 Databar, MaxiCode, PDF417, QR code
Accessories Standard Belt Clip, Battery Pack, Battery Charger, Power Cord, Paper
Accessories Optional Belt Strap, Shoulder Strap, Single Battery Cradle, Quad Battery Charger, Cigarette Lighter Charger, Serial/USB Cable, Cleaning Pen
