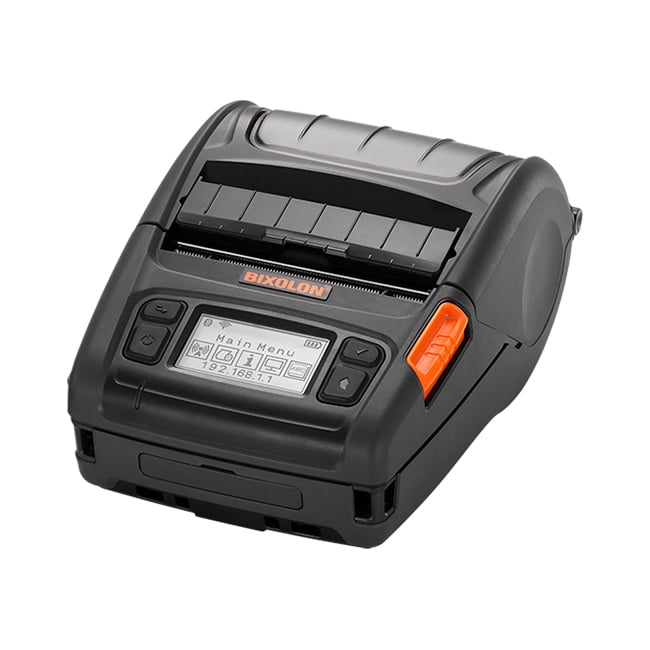

Bixolon SPP-L3000 3 inch Mobile Label Printer

Overview

The Bixolon SPP-L3000 is a compact, 3″ (80 mm) premium level Auto-ID Mobile Label Printer supporting high quality connectivity and labelling.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Fast data processing and printing speed up to 5 ips (127 mm/sec)
  • Smart Media Detection™
  • Simultaneously connects both Bluetooth 4.1 (MFi certified) and Dual-band WLAN (2.4GHz and 5GHz)
  • Compatible with all major operating systems including Android™, iOS™ and Windows®
  • Compact, ergonomic and light-weight (694g)
  • 2.1 m / 7 ft. drop rate
  • IP54 (Printer only) water and dust proof
Print Characteristics
Print Method Direct Thermal
Print Speed Up to 5 ips (127 mm/sec - Label, Linerless)
Print Resolution 203 dpi
Print Width Up to 72 mm
Sensing Paper EndGapBlack MarkPaper Cover OpenPeel-off
Media Characteristics
Media Type Label, Linerless (Optional)
Media Width 25 ~ 80 mm
Media Roll Diameter Up to 66 mm
Media Thickness 0.07 ~ 0.15 mm
Media Inner Core 19mm, 12mm
Supply Method Easy Paper Loading
Physical Characteristics
Dimensions(WxDxH) 119 x 159 x 79 mm (4.67 x 6.26 x 3.12 inch)
Weight Including battery: 694 g (1.53 Ibs.) Paper : 257 g (0.57 lbs.)
Electrical 7.3 V Li-ion, 2850 mAh (Nominal), RechargeableCharging time: Up to 2.5 hrsEnergyStar Certified
Peeler Supported
Paper guide Yes (Inner core: 19mm)
Display FSTN LCD (200 x 100 pixels)
Performance Characteristics
Memory 128 MB SDRAM, 256 MB Flash 256 MB SDRAM, 512 MB Flash (Optional)
Interface Standard: USB V2.0 HS + Serial Optional: USB V2.0 HS + Serial + Bluetooth / WLAN / Dual (Bluetooth + WLAN)-----------------------------------------Bluetooth: V4.1 Classic & LEWLAN: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) - WEP40/104, WPA1/2 (PSK, EAP) -----------------------------------------Easy Bluetooth Pairing™ via NFC
Environment Characteristics
Temperature Operating: -15 ~ 50℃ (5 ~ ~ 122℉)Storage: -30 ~ 70℃ (-22 ~ 158℉)
Humidity Operating: 10 ~ 80% RH
Sealing IP54
Drop Rate 2.1 m (7 ft.)
Software
Emulation SLCS, BPL-Z™ (ZPLII), BPL-C™ (CPCL)
Driver/Utility Windows Driver (Europlus/Seagull)Linux / Mac CUPS DriverVirtual COM USB DriverUtility ProgramLabelArtist-II™Bartender ULOPOS/JPOS DriverSAP® Device Driver
SDK/Plugin Android/iOS/Windows SDKLinux SDKChrome SDKXamarin SDKCordova Plugin
Application Label Artist™Mobile (Android,iOS)mPrint App (iOS)mPrint Server (Windows, iOS)
MDM(Optional) BIXOLON Profile Manager - XPM™, XCM™ (Windows, Android)
Fonts/Graphics/Symbologies
Fonts 10 SLCS / One SLCS / 16 BPL-Z™ / One BPL-Z™ / 7 BPL-C™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE
Graphics Supporting user-defined fonts, graphics, formats, layouts and logos
Barcode Symbologies 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8,Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39
Accessories
Standard Belt Strap, Battery Pack, SMPS,Power Cord, Paper Disk (Inner core : 12mm)
Optional Shoulder Strap, Single Battery Charger, Quad Battery Charger, Serial/USB Cable, Fixed Serial/USB Cable, Ram mount Vehicle-Holder, Vehicle Charger
