Posiflex RT-6015-G2

RT-1016A_RT-5116_RT-5016_RT-2016_Black_Side

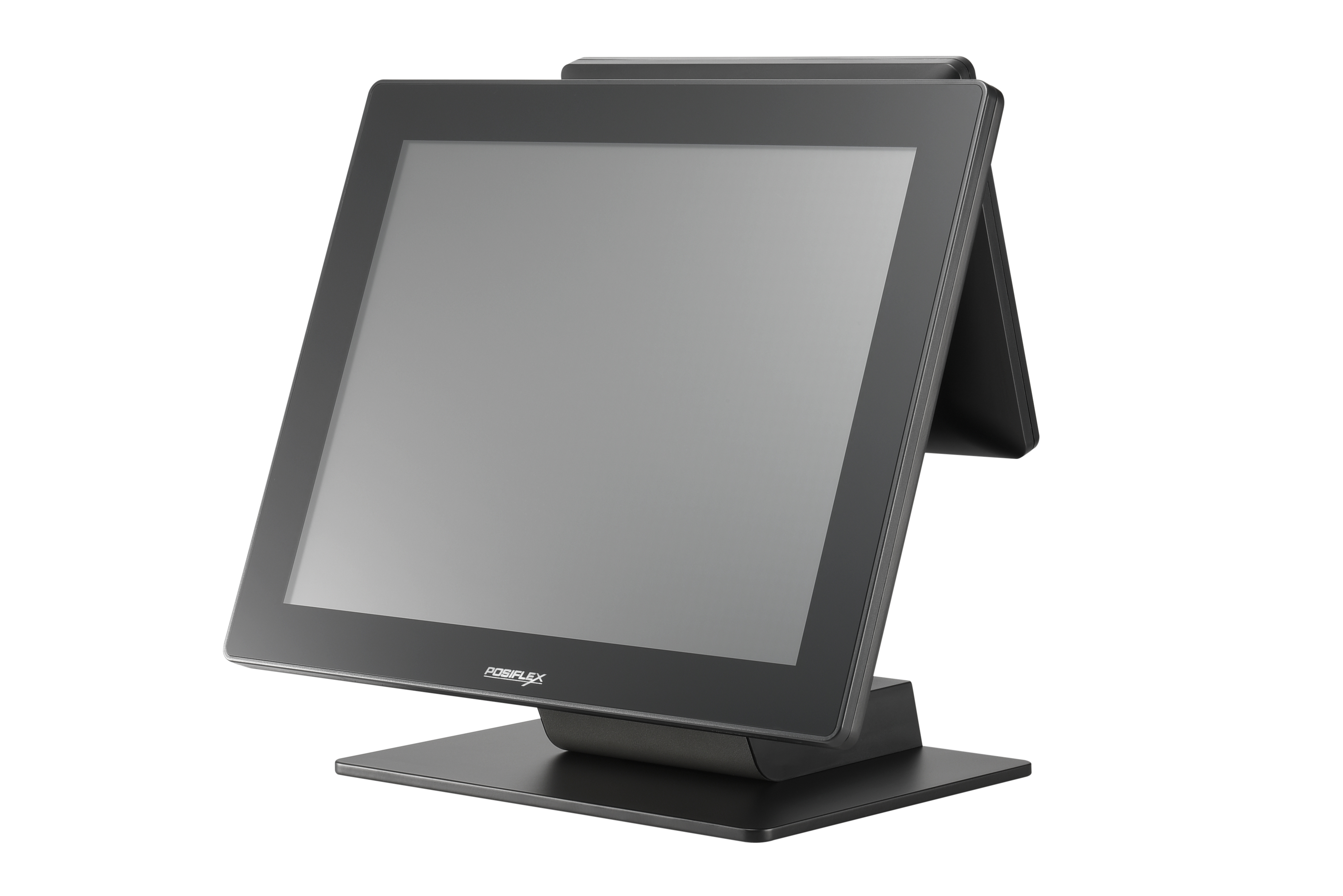

Posiflex RT-2015/5015 POS Terminal flexible

Overview

The RT-6015-G2 radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The RT-6015-G2 is taking POS terminal design into the next level, setting your brand image apart from the others.

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

15” TFT LCD PCAP touch with multi-touch
Intel Tiger Lake UP3 Core i3 / i5
2 x M.2 2280
DDR4 SO-DIMM x 2, max. 64 GB

Slim & Stylish Look

With sleek contours, ultra-slim body, and linear rear cover surface, the RT-6015-G2 features a 15″ PCAP touch screen, and full suite of ports that are hidden in the clean rear cover. No screws can be found on its surface maintaining a neat and sleek look.

Patented Fanless Technology

The patented fan-less technology allows the terminal to run quietly in all kinds of harsh conditions and – at the same time – provides a long service life.

Clean Cable Management

Advanced cable management design delivers a truly clutter-free station. The standard base can house the optional Powered USB or USB extension module, while the optional base integrates a UPS backup (RB-5000) for the event of a power failure.

Faster Installation and Serviceability

Rear cover can be removed easily and without tools, thus allowing faster installation and serviceability.

Save Your Time and Money

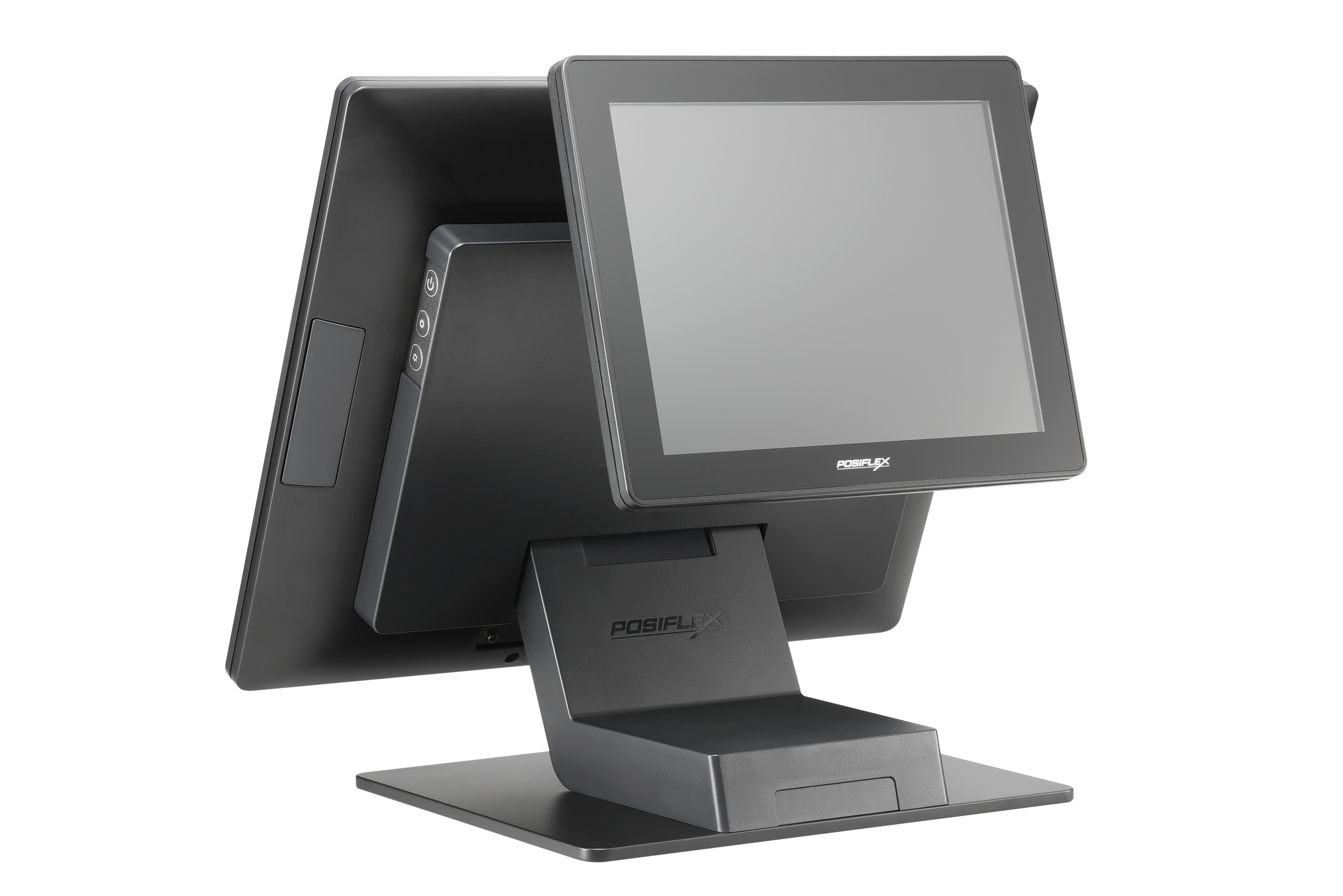

The terminal can be shipped with customer line display or 9.7” 2nd customer facing LCD display attached and folded, saving deployment time as well as shipping costs.

System Configuration
Processor	Intel Tiger Lake UP3 Core i3, Intel Tiger Lake UP3 Core i5, Intel Tiger Lake UP3 Core i7
System Memory	DDR4 SO-DIMM x 2, max. 64 GB
Storage Device	2 x M.2 2280 ( support both SATA III signal and PCIe signal)
RAID Function	Yes
Intel vPro Support	Yes, depend on processor
TPM Support	Yes , TPM 2.0
Power Supply	12V/60W
OS Support	Windows 10 IoT 64 bits

Display & Touch
LCD	15” TFT LCD
Resolution	1024 x 768
Touch	True-flat PCAP touch with multi-touch support (IP65 on front panel)

I/O Expansion
Serial Port	3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Parallel Port	N/A
Standard USB Port	5, USB 3.0 x 2 + USB 2.0 x 3
PoweredUSB Port	Optional Powered USB module with 24V + 12V (USB 2.0 x 1 will no longer be available with the Powered USB module)
OTG USB	N/A
LAN Port	10/100/1000 Mb x 1
Display Port	1 x VGA (proprietary connector) +1 x mini-DP
CR Port	1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port	N/A
UPS Port	N/A
Audio	Internal 2W speaker x 1
Expansion Slot	M.2 2230 x 1 for Wi-Fi/BT

Physical Dimension
Dimension (W x D x H in mm)	368 x 207 x 325
Weight (N. W. in kg)	5.4

Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	-20°C - 70°C, 10%RH - 90%RH

Built-in Options
WiFi	M.2 WiFi/BT module
Camera	1MP wide angle camera
MSR	N/A
AG Glass	Cannot coexist with built-in camera

Attachment Options
POS Monitor	Non-touch TFT LCD: 9.7"/10.1"/15"; PCAP touch TFT LCD: 9.7"/10.1"
Line Display	2 x 20 rear-mount VFD customer line display
External UPS Pack For RT Series	UPS battery module (12V/2300mAh)
Attachment	MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor
