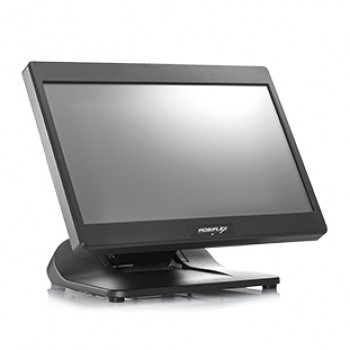

Posiflex PS-3516 15.6" Widescreen POS Terminal

Overview

Crafted with functionality and flexibility in mind, The Posiflex PS-3516 Series features a 15.6” wide touch screen, fanless technology, and an adjustable base to scale to meet both retailers' and consumers' expectations—all within an affordable, yet attractive and feature-rich terminal.

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15.6" TFT LCD 5-wire Resistive touch
  • Intel Apollo Lake N3350
  • Up to 8Gb RAM
  • 64GB SSD as standard

Intelligently Designed

Equipped with an adjustable base, PS-3516 Series enables the ultimate flexibility for space-limited environments.

Expanded Capability

By separating a full set of ports into the top of the terminal, PS-3516 Series provides extensive connections, easy accessibility, and reliable peripheral cabling.

Durable

Powered by Intel® Apollo Lake N3350/J3455 processors, and constructed with a 15.6” resistive wide touchscreen, PS-3516 Series has the durability, style and power for the most challenging POS requirements.

System Configuration
Processor Intel Apollo Lake N3350
System Memory DDR3L SO-DIMM x 1, max. 8GB
Storage Device M.2 connector (SATA Signal Only) x 1
Power Supply 12V/40W
OS Support Windows 10 IoT
Display & Touch
LCD 15.6" TFT LCD
Resolution 1366 x 768
Touch 5-wire Resistive touch
I/O Expansion
Serial Port 4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port 1, via optional conversion cable through service window
Standard USB Port 5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
PoweredUSB Port Optional 24V x 1 + 12V x 3 via GEN8 base
OTG USB N/A
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable
PS/2 Port 1, via optional conversion cable through service window
Audio Buzzer x 1; Optional internal 2W speaker x 1
Expansion Slot M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm) 372 x 252.7 x 291.4
Weight (N. W. in kg) 4.7
Environmental
Operating Condition 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi USB WiFi dongle
