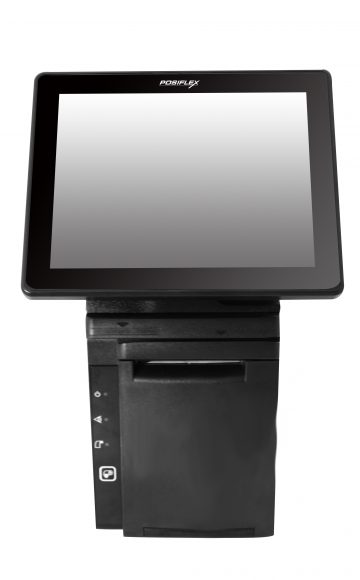

Posiflex HS-2510W all-in-one POS Terminal

Overview

The HS-2510W is the solution for the counter space problem. Its compact all-in-one design frees more room for counter space, so that the store owner can display and promote more merchandizes to maximize sales opportunities.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 9.7" true-flat projected capacitive touch screen
  • Intel® Celeron J1900 CPU, Quad Core CPU, 2.0GHz/2.42GHz, 2M Cache, Fanless
  • Up to 8Gb RAM
  • 500Gb HDD or 64Gb SSD as standard
  • Built-in, 3” thermal printer with auto cutter
  • Compact, all-in-one
  • Tidy cable management
  • IP65 rated

Innovative All-in-one Solution
The HS-2510W integrates the most widely used peripherals options in daily POS operation including 3” thermal printer, MSR, fingerprint sensor, smart card reader, barcode scanner and 2nd customer display.

Small Form Factor
Its compact footprint takes space saving to extremes and creates a clean, cable-free environment.

Aesthetics
Offered in black or white, the HS-2510W is not just a piece of machinery, it is an elegantly crafted piece of art that looks right at home in any store decoration.

Specification HS-2510W
Processor Intel Celeron J1900 Quad Core CPU, 2GHz/2.42GHz (Burst)
System Memory DDR3L 1333MHz, SO-DIMM x 1, max. 8GB
Storage Device SATA Storage x 2 or eMMC x 1
Power Supply 12V DC power adaptor, 100W
Built-in Printer 3” thermal printer with auto cutter, 200mm/sec print speed
OS Support Windows 7/POSReady 7/Window Embedded 8.1 Industry/Linux per request
Display & Touch
LCD 9.7” TFT LCD
Resolution 1024 x 768
Touch True-flat PCAP touch with 10”pts multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port 3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port Yes
Standard USB Port 4, USB 3.0 x 1+ USB 2.0 x 3
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable
PS/2 Port PS/2 Port
Audio Line-out x 1
Expansion Slot Mini-PCIe slot x 1
Physical Dimension
Dimension (W x D x H in mm) 224.5 x 185 x 387
Weight (N. W. in kg) 4.2
Environmental
Operating Condition 0°C - 40 °C, 20%RH – 90%RH (Equipped with HDD) ; 0°C - 50 °C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
MSR 3 tracks ISO or JISII (HID/VCOM selection)
FPU Optical type
WiFi Mini-PCIe WiFi/BT module
RFID Reader Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Smart Card Reader Yes
