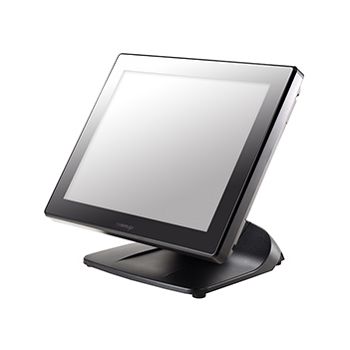

Posifles XT-6315 15" POS Terminal

Overview

The Posiflex XT-6315 is the successor of the    XT-5315, which has been enhanced with 6th generation Intel Skylake CPUs, which is powerful enough to handle any task imaginable that comes its way.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15" bezel-free true-flat PCAP touch screen
  • Intel Skylake Celeron, Pentium; Core i3-6100TE, Core i5-6500TE, Core i7-6700TE,
  • Up to 32Gb RAM
  • 64Gb SSD
  • Fully adjustable stand and viewing options

Sleek Look
Slimmer than ever! Every curve and detail of the XT-6315 is carefully thought out to make itself one of the most visually desirable terminals in the market.

Multi-Position Folding Base
The patented foldable base of the XT-6315 enables users to adjust the screen to a height and angle of their choice, providing unparalleled flexibility. (U.S. Patent 9004436)

Scalable Performance
A wide range of CPU options from Intel Celeron to Core i7 to fit each unique need.

Fanless Design
Solve the fan maintenance issue and provide silent mode operation, which is ideally suited for high-end boutique stores or hospital environments.

GEN8E Base
Optional GEN8E Base (U.S. Patent 9004436) that integrates internal power adaptor and PoweredUSB port into the base stand, which keeps counters clutter-free.

System Configuration
Processor Intel Skylake Celeron G3900TE CPU, 2.30 GHz, 2M cache; Intel Skylake Pentium G4400TE CPU, 2.40 GHz, 3M cache; Intel Skylake Core i3-6100TE CPU, 2.70 GHz, 4M cache; Intel Skylake Core i5-6500TE CPU, up to 3.30 GHz, 6M cache; Intel Skylake Core i7-6700TE CPU, up to 3.40 GHz, 8M cache;
System Memory DDR4 SO-DIMM x 2, max. 32 GB
Storage Device SATA storage x 2
Power Supply 12V/100W
OS Support Windows 7/POSReady 7/Windows Embedded 8.1 Industry 64 bit/Windows 10 IoT 64 bit/Linux per request
Display & Touch
LCD 15" TFT LCD
Resolution 1024 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port 6, 4 on I/O plate (DB9 x 2 + RJ50 x 2) + 2 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to 4 (all converter cables are optional)
Standard USB Port 6, USB 3.0 x 4 + USB 2.0 x 2)
Parallel Port 1, via optional conversion cable through service window
PoweredUSB Port Optional 24V x 1 + 12V x 3 via GEN8E base
LAN Port 10/100/1000 Mb x 2
Display Port VGA x 1, 12V support for Posiflex monitors; mini-HDMI x 1
CR Port 1, control 2 CR via optional Y-cable
PS/2 Port 1, via optional conversion cable through service window
UPS Port Yes
Audio Internal 2W speaker x 1 + Mic-in/Line-out
Expansion Slot M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm) 372 x 320 x 252.7
Weight (N. W. in kg) 5.86
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD); 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi M.2 WiFi/BT module
* The product information and specifications are subject to change without prior notice.
