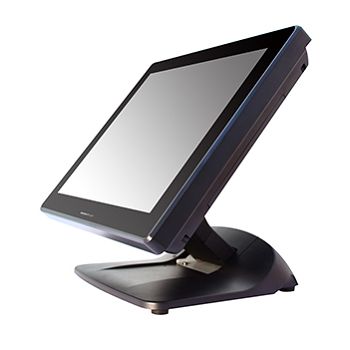

Posiflex XT-3815 15" POS Terminal

Overview

Powered by Intel Bay Trail processor, the Posiflex XT-3815 POS Terminal features a 15” bezel-free true-flat PCAP touch screen and also offers ample of performance and flexibility to satisfy the most demanding of daily POS operations.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15” bezel-free true-flat PCAP touch screen
  • Intel Bay Trail J1900 Quad Core CPU,
  • Up to 8Gb RAM
  • 64Gb SSD as standard
  • Fully adjustable stand and viewing options
  • Tidy cable management
  • IP65 rated
Sleek Look
Slimmer than ever! Every curve and detail of the XT-3815 is carefully thought out to make itself one of the most visually desirable terminals in the market.
Multi-Position Folding Base
The patented foldable base of the XT-3815 enables users to adjust the screen to a height and angle of their choice, providing unparalleled flexibility. (U.S. Patent 9004436)
Performance
The XT-3815 is equipped with the latest Intel Bay Trail quad core processor that is powerful enough to process anything throws at it without even breaking a sweat.
Fanless Design
Solve the fan maintenance issue and provide silent mode operation, which is ideally suited for high-end boutique stores or hospital environments.
GEN8E Base
Optional GEN8E Base (U.S. Patent 9004436) that integrates internal power adaptor and PoweredUSB port into the base stand, which keeps counters clutter-free.
ForPOS Complete Solution!
Complete your POS bundle by adding a cash drawer and printer to your order.
The ForPOS range of cash drawers will meet any retail and hospitality need. Heavy duty for harsh environments or flip top for a compact space saver the ForPOS range of cash drawers offer reliability and high quality.
we also offer a wide range of receipt, label and mobile printers.  Compatible with all major operating systems and with a range interface options and accessories.
Specification XT-3815
Processor Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory DDR3L SO-DIMM x 1, max. 8GB
Storage Device SATA storage x 2 (one for HDD/SSD; the other for 1” SSD only) or optional eMMC module
Power Supply 12V/60W
Display & Touch XT-3815
LCD 15" TFT LCD
Resolution 1024 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion XT-3815
Serial Port 4, DB9 x 3 + RJ50 x 1, 5V/12V support on all 4 COM ports
Parallel Port 1, via optional conversion cable through service window
Standard USB Port 7, USB 3.0 x 1 + USB 2.0 x 6
PoweredUSB Port Optional 24V x 1 + 12V x 3 via GEN8E base
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable
PS/2 Port 1, via optional conversion cable through service window
UPS Port Yes
Audio Internal 2W speaker x 1
Expansion Slot Mini-PCIe slot x 1
Physical Dimension XT-3815
Dimension (W x D x H in mm) 372 x 320 x 252.7
Weight (N. W. in kg) 5.6
Environmental XT-3815
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD); 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options XT-3815
WiFi Optional mini-PCIe WiFi/BT module
