Key Features
- High Performance
- Compact and Hassle-free
- Up to 32Gb RAM
- Skylake: Intel Celeron G3900TE; Intel Pentium G4400TE; Intel Core i3-6100TE; Intel Core i5-6500TE Kaby Lake: Intel Celeron G3930TE; Intel Core i3-7101TE; Intel Core i5-7500T

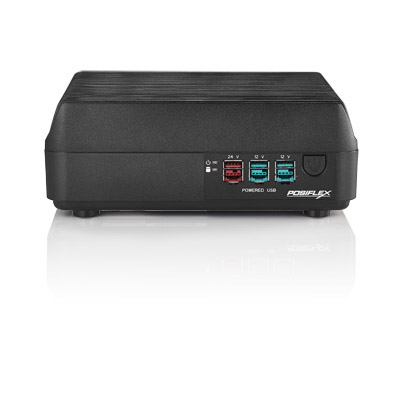

Posiflex TX-5600 high-end fan-free POS Box
Overview
Posiflex TX-5600 modular POS is the latest high-end fan-free POS Boxes. Incorporating leading CPU Technology –6th/7th generation Intel proeessor, the TX-5600 modular POS provides unmatched performance while juggling multiple program with ease. Drivers and utilities can be found here
Download Product SpecificationRegister to get started
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account| System Configuration | |
| Processor | Skylake: Intel Celeron G3900TE; Intel Pentium G4400TE; Intel Core i3-6100TE; Intel Core i5-6500TE Kaby Lake: Intel Celeron G3930TE; Intel Core i3-7101TE; Intel Core i5-7500T |
| System Memory | 2 x DDR4 SO-DIMM, max 32 GB |
| Storage Device | 2 x SATA port |
| TPM | TPM 2.0 |
| OS support | POSReady 7, Windows 7, Windows Embedded 8.1 Industry 64 bit, Windows 10 IoT 64 bit for Skylake processor; Windows 10 IoT 64 bit for Kaby Lake processor |
| I/O Expansion | |
| Serial Port | 2 x DB9 + 2 x RJ50 + optional COM 5 / COM 6 |
| Parallel Port | 1 |
| Standard USB Port | 4 x USB 3.0 + 3 x USB 2.0 |
| LAN Port | 2 x 10 / 100 / 1000 Mb |
| Display Port | 1 x VGA + 1 x HDMI |
| CR Port | 1, control 2 CR via optional Y-cable, support 24V |
| Audio | 1 x 2W speaker + Mic-in/Line-out |
| Internal Expansion Slot | 1 x M.2 for WIFI |
| Built-in Option | |
| Built-in WiFi | Optional M.2 WiFi/BT module |
| Physical Dimension | |
| Dimension (W x D x H in mm) | 220 x 202 x 83 |
| Weight (N. W. in kg) | 2.75kg |
| Environmental | |
| Operating Condition | 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD) |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| * The product information and specifications are subject to change without prior notice. |
