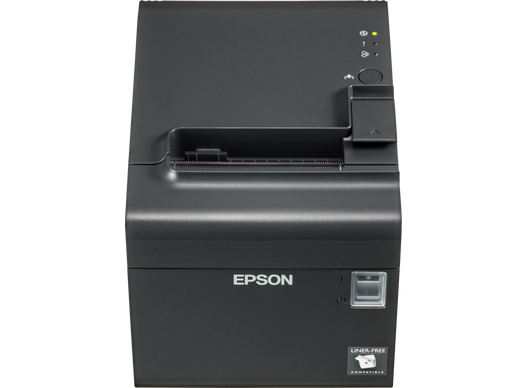

Epson TM-L90

Overview

The TM-L90 is Epson's compact thermal label printer that’s also ideal for barcode printing. This thermal label printer effortlessly increases productivity for post offices, pharmacies, supermarkets and other businesses. You can easily print on different types of label and receipt paper, in a variety of different sizes, thanks to the adjustable cutter. Part of our Epson range of printers. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Ideal for label and barcode printing. Supports greyscale printing.
  • Thermal printing up to 150mm/sec
  • Mounts horizontally, vertically or with a wall bracket
  • Drop in paper loading and built-in-USB interface
  • Label and receipt paper, from 38mm to 80mm wide

Label and barcode printing

With fast, thermal printing of up to 150mm/sec, the TM-L90 is a valuable asset to your business. With this model, you’ll be able to print out and get on with more important work, rather than waiting around for labels or barcodes.

More connectivity

This printer benefits from high speed serial, Ethernet and parallel connectivity plus a built-in USB interface, which means it can be operated as a network device.

Easy to use

The small footprint and wall bracket mean that you can place it almost anywhere, in any position, for convenient and versatile printing. Practical design features, such as drop-in paper load, selectable auto-cutter and jamproof paper feeding, ensure smooth operation. The easy-to-use operator cover and lifespan of up to 20 million lines enable long-lasting, trouble-free maintenance.

High quality labels

Its greyscale capabilities allow highly customised layouts, and logos and promotional messages can be added with ease.

Larger receipt rolls, wider paper

Altogether, the TM-L90 label printer is one of the most efficient label printers available: it accepts large paper rolls (up to 90mm in diameter) and you can select paper widths between 38 and 80mm to produce labels in different sizes.

Paper
Paper size 79.50 ± 0.50 (W) mm x dia 90.00 mm
Fonts & Styles
Print Speed (label) 150 mm/sec
Print Speed receipt 150 mm/sec
Print Speed 150 mm/sec
Character size 1.5 mm (W) x 3 mm (H) / 1.1 mm (W) x 2.1 mm (H)
Character set 95 Alphanumeric, 18 set International, 128 x 7 Graphic
Characters per inch 22.6 cpi / 16.9 cpi
Dot density 203 dpi x 203 dpi
Printing Characters Barcode
Interfaces
Interfaces USB 2.0 Type B, Parallel (optional), RS-232 (optional), Ethernet interface (100 Base-TX / 10 Base-T) (optional)
Power
Power Supply PS-180
Power Consumption Mean: 1.8 A
General
Product dimensions 140 x 148 x 203 mm (Width x Depth x Height)
Product weight 1.9 kg
Colour Epson Dark Grey / Epson Cool White
