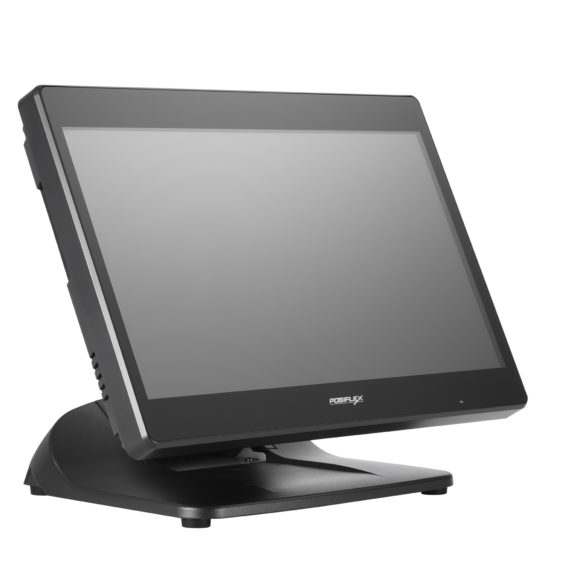

Posiflex PS-3416E POS Terminal

Overview

The Posiflex PS-3416E is a fanless POS Terminal featuring a 15.6" P-CAP touch wide-screen and J1900 Quad Core processor, with all the functionality and capability to satisfy businesses of all sizes and in all industries therefore making this terminal the best in entry level POS.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15.6” wide P-CAP touch screen
  • Intel Bay Trail J1900 Quad Core CPU
  • Up to 8Gb RAM
  • 64GB SSD as standard
  • Foldable base

Featuring a 15.6” wide P-CAP touch screen, the PS-3416E is a fanless POS Terminal with all the essential functions and capabilities to satisfy businesses of all sizes, and represent one of the best value choices in the entry-level POS Terminal segment.

Slim and Flexible

Streamlined design equips with a foldable base; the PS-3416 provides users with unmatched flexibility to adjust the screen to a height and angle depending on the application.

Expandable and Neat

Designed to better manage peripheral connectivity by separating a full set of ports into the top of the terminal, the PS-3416 ensures neat, reliable peripheral cabling.

Fanless Design

The patented fanless technology allows the unit to run silently. it also eliminates potential point of failure in the fan, reducing service costs.

PS-3416E is available with an extensive range of peripherals.
Peripheral options include: MSR/card reader, Dallas/iButton, fingerprint/ biometric reader, RFID reader, integrated 2 line VFD or LCD customer display, integrated 7″ LCD advertising display, integrated side keypad, printers, barcode scanners, cash drawers and more.

Specification PS-3416E
Processor Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory DDR3L SO-DIMM x 1, max. 8GB
Storage Device SATA x 1, SATA SSD default
Power Supply 12V/40W
OS Support Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Display & Touch
LCD 15.6" TFT LCD
Resolution 1366 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 capable on front panel)
I/O & Expansion
Serial Port 4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port 1, via optional conversion cable through service window
Standard USB Port USB 2.0 x 5
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable
PS/2 Port 1, via optional conversion cable through service window
Audio Buzzer only
Physical Dimension
Dimension (W x D x H in mm) 372 x 252.7 x 291.4
Weight (N. W. in kg) 4.7
Environmental
Operating Condition 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Built-in Options
WiFi USB WiFi dongle
Attachment Options
POS Monitor 7"/10" TFT USB LCD display non-touch
Line Display 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display; 7" color LCD graphical line display
Peripherals MSR; iButton; RFID; Fingerprint Sensor; Keypad
