Posiflex PG-201E Pistol Grip with 2D Scanner for MT Series

Overview

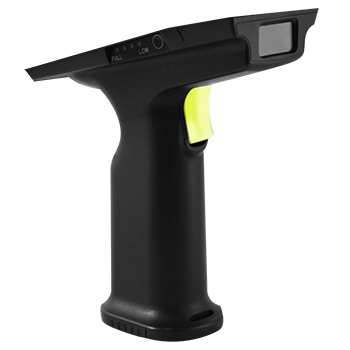

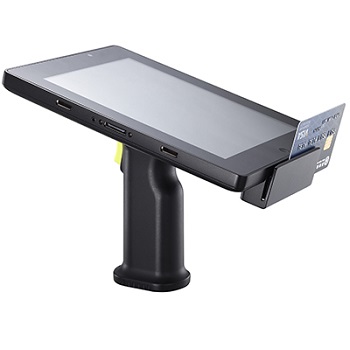

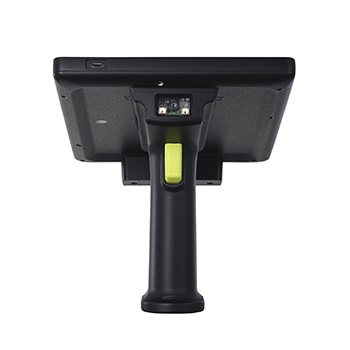

The PG-201E for MT Series tablet (except MT-5310W) is a truly ingenious invention. It houses a 2D barcode scanner in the pistol grip shape handle, which is ergonomically designed to take the strain out of operator’s hand and arm. Furthermore, the additional removable battery that goes into the pistol grip effectively lengthens the operation life of the tablet.

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 2D Barcode Scanner
  • For MT Series

The PG-201E for MT Series tablet is a truly ingenious invention. It houses a 2D barcode scanner in the pistol grip shape handle, which is ergonomically designed to take the strain out of operator’s hand and arm, and enables the user to easily carry and handle the tablet. The additional removable battery that goes into the pistol grip effectively lengthens the operation life of the tablet.

2D Scanner Module
Symbologies Supported: 2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode
Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)
Sensor Resolution: 752 x 480 pixels
Field of View: Horizontal: 40°, Vertical: 25°, Skew Tolerance: ±60°, Pitch Tolerance: ±60°, Roll Tolerance: 360°
Focal Distance from Front of Engine: SR: 8 in. DL: 5.3 in. HD: 2.9 in.
Aiming LED (VLD): 655 ±10 nm Laser
Illumination Element: 625 ±5 nm LEDs (2x)
Print Contrast: Minimum 25% absolute dark/light reflectance measured at 650 nm
Swappable Battery
Equipped with a 5000 mAh swappable battery in addition to the built-in battery in the MT Series tablet to prolong the operation time.
