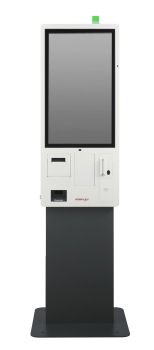

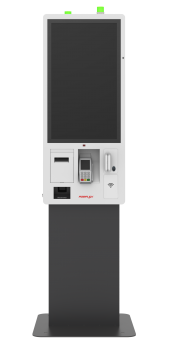

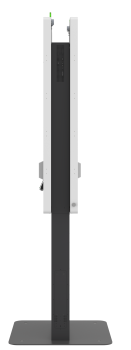

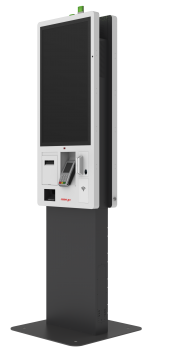

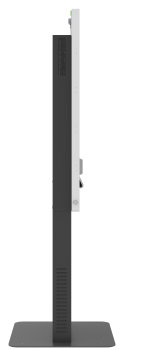

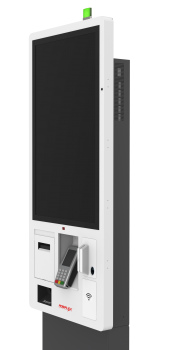

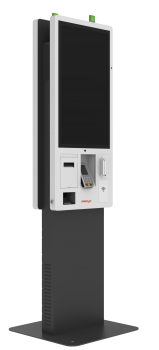

Posiflex JK-3250 32" Self Service Kiosk

Overview

Posiflex JK-3250 32" Self Service Kiosk. Designed with slimness and flexibility in mind, the Cachet JK-3250 is a 32” kiosk that offers endless different ways to blend into any retail environment. With a true-flat enclosure, along with a wide range of peripheral options, the Cachet JK-3250 is capable of processing all the self-service applications while helping retailers to build intimate relationship with customers.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 32” PCAP touch screen
  • Intel 7th Generation Kaby Lake U Core i3/i5
  • Up to 8Gb RAM
  • SSD
  • Slim & Flexible

Slim, Modern, and Intelligent
With a true-flat enclosure, the Cachet JK-3200 Series features a bright, high definition 32” PCAP touch screen that makes it easy for customers to interact in a way they want.

Tailored for Easy Maintenance
Designed for easy installation, cable management, and maintenance, the Cachet JK-3200 Series makes everything simple, slim, and cost-efficient.

Flexible Configurations
Offering flexible configurations in wall-mounted, single or dual-sided operation, the Cachet JK-3200 Series adapts to evolving business needs.

Limitless Possibilities
The Cachet JK-3200 Series is integrated with a variety of peripheral options in self-service applications, including 2D scanner, receipt printer, NFC, service indicator, bracket for EMV payment devices, and more.

Specification
Processor Intel 7th Generation Kaby Lake U Core i3/i5
System Memory DDR4 SO-DIMM slot x 1, max. 16 GB
Storage Device SATA SSD x 1
Intel vPro Support Core i3: N/A Core i5: Yes (for option)
TPM Support Yes (for option)
Power Supply 12V/60W x 1 + 24V/60W x 1
OS Support Windows 10 IoT 64 bit
Serial Port 3, RJ50 x 2 + DB9 x 1
Standard USB Port 8, USB 3.0 x 2 + USB 2.0 x 6
OTG USB N/A
Display Port HDMI x 1
LAN Port 10/100/1000 Mb x 2
Audio Internal 3W speaker x 2
Internal Expansion Slot M.2 x 1
Display & Touch
LCD 32"
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support
Physical Dimension
Dimension (W x D x H in mm) 602 x 602 x 1902 (Floor-standing) 495 x 152 x 1152 (Wall-mounted)
Weight (N. W. in kg) 65 (with pole) 35 (with wall mount bracket)
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Standard Components
Status Indicator RGB Color LED Indicator
Proximity Sensor Range from 60 cm to 100 cm
Camera 1MP wide angle camera
Printer 3" thermal printer w/auto cutter, 200 mm/sec (max.)
Optional Components
WiFi M.2 WiFi/BT module
Scanner 2D barcode scanner
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
NFC/RFID Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G LTE Support selected bands & countries with full SIM slot (mini-PCIe module) by request
* The product information and specifications are subject to change without prior notice.
