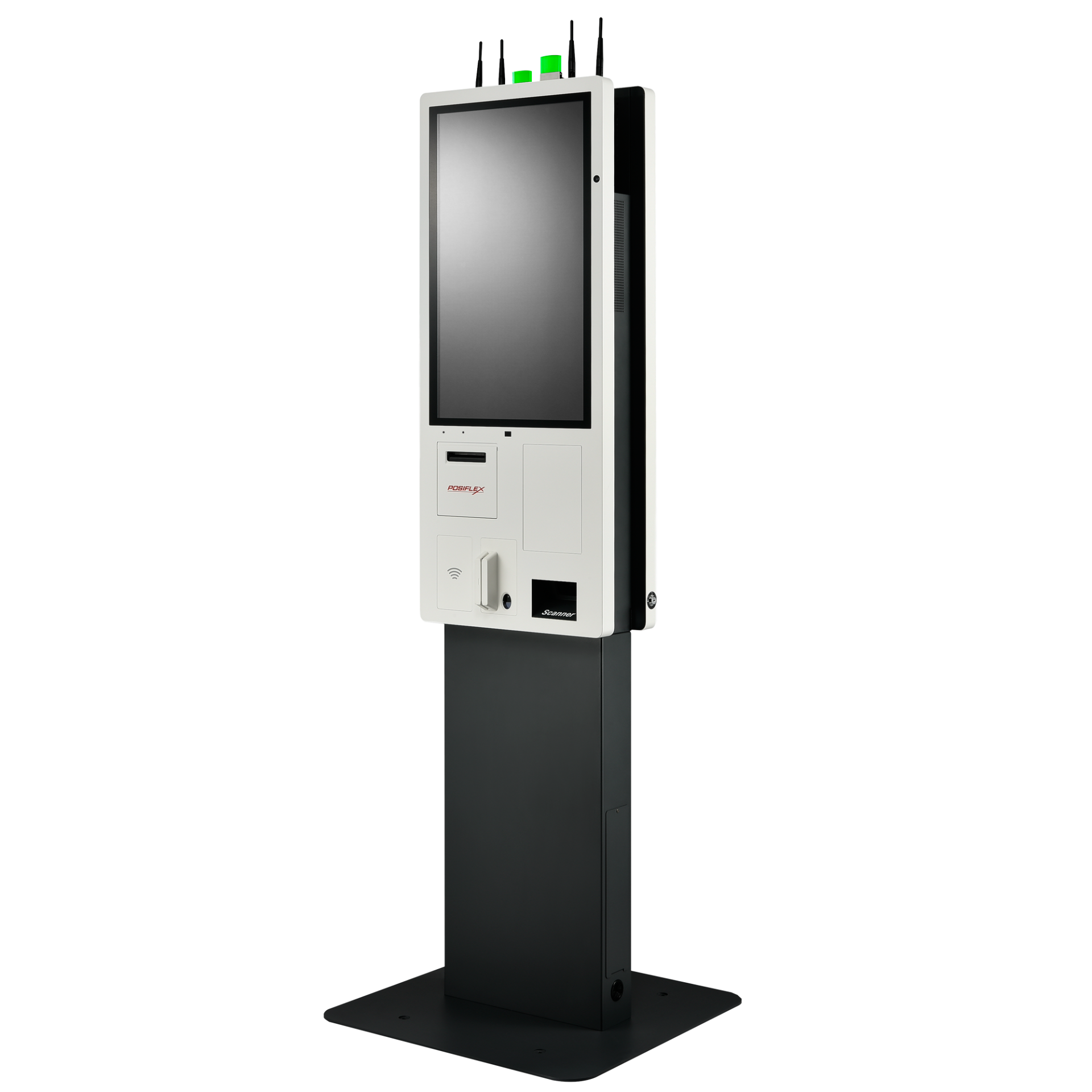

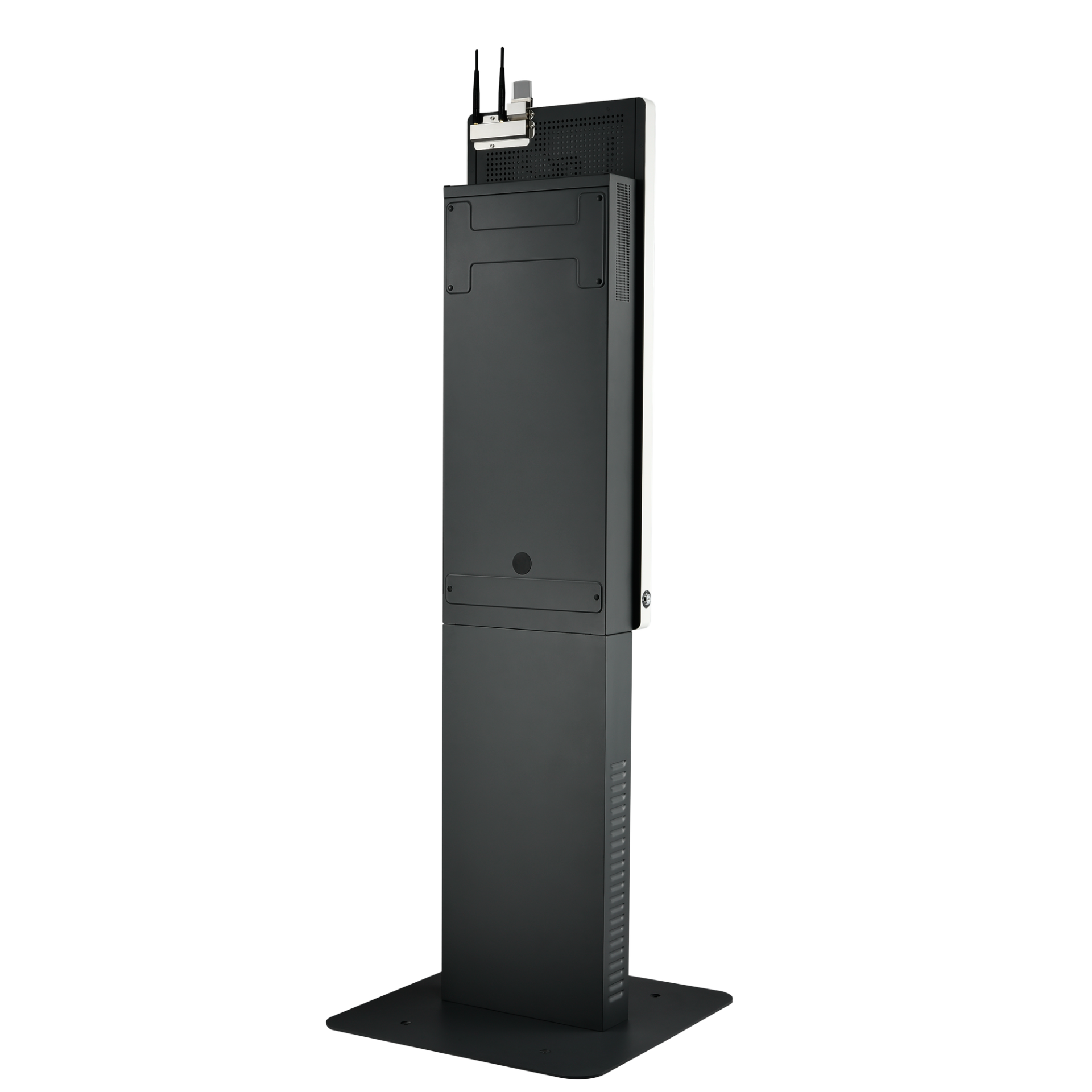

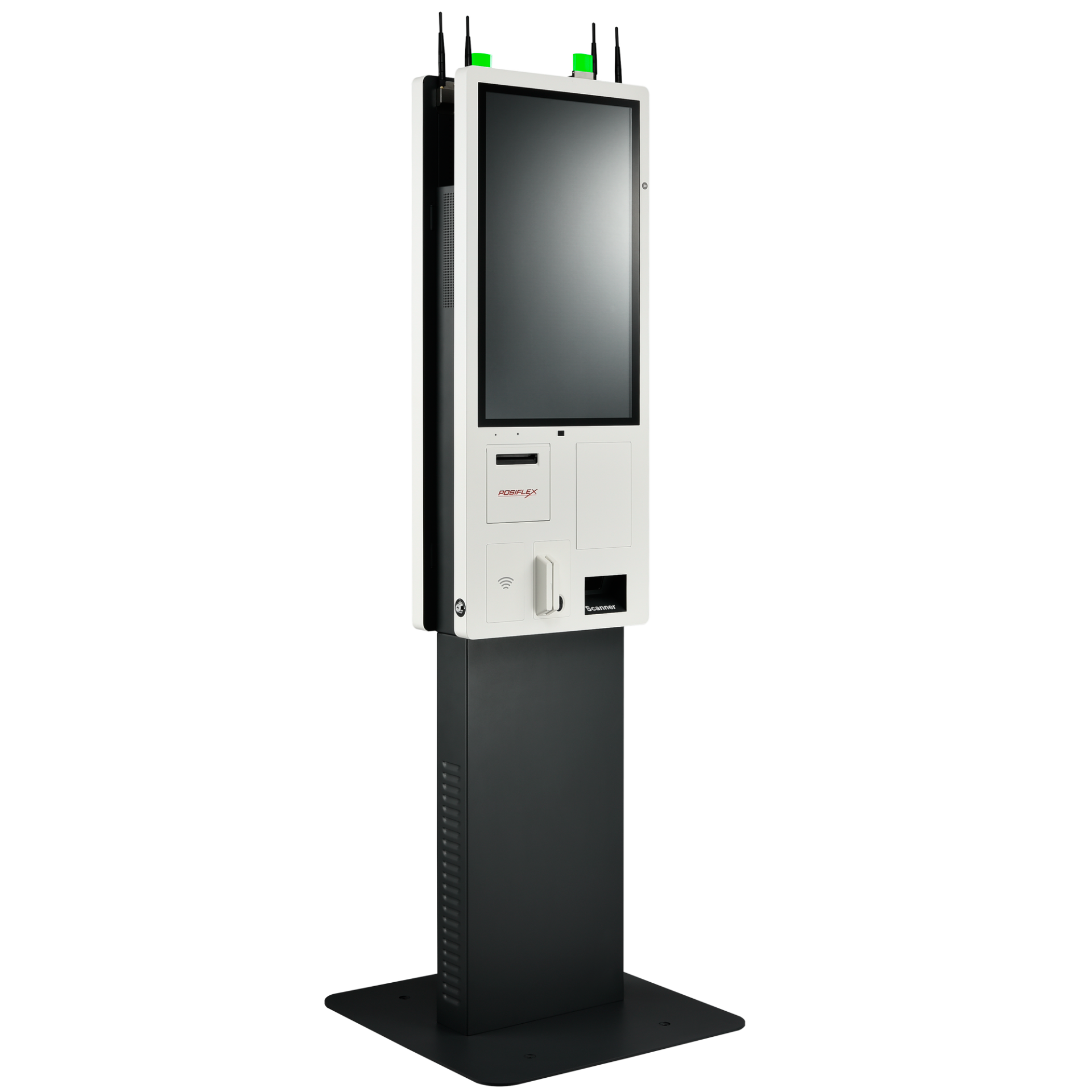

Posiflex JK-2762 27" Self Service Kiosk

Overview

JK-2700 Series

  • 27" True Flat PCAP Multi Touch Display
  • Support Floorstand, Dual Sided and Wall-Mount Configurations
  • Support a Variety of Kiosk Peripherals
  • Reversible Printing Function
  • Support Optional Noise Cancellation Microphone
  • Easy Maintenance Design

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Intel Raptor Lake U Core i3 1315UE; Intel Raptor Lake U Core i5 1335UE (no vPRO); Intel Raptor Lake U Core i5 1345UE
  • M.2 2280 x 1 (SATA & NVMe)
  • DDR5 SODIMM x 1, max.32GB
  • Windows 10 IoT LTSC / Windows 11 LTSC
  • 27" True-flat PCAP touch with multi-touch support

Performance for Every Application

JK-2700 Series features a range of processor options, including the latest Intel® Raptor Lake processor, and MTK Genio G700 with Android 13 support, making it suitable for a wide spectrum of self-service applications.

Slim, Modern, and Intelligent

Featuring a bright, high-resolution 27” PCAP touch display, the JK-2700 Series presents a slim, true-flat design that delivers a clean, modern look and an intuitive interactive experience.

Flexible Configuration

Offering flexible installation options, including wall-mounted, single-sided and dual-sided configurations, the JK-2700 Series supports diverse business use cases.

Tailored for Easy Maintenance

With easy installation, organized cable management, and serviceability in mind, the JK-2700 Series simplifies deployment and ongoing maintenance.

 Comprehensive Peripheral Options

JK-2700 Series is integrated with a variety of peripheral options for self-service applications, including 2D scanner, receipt printer, NFC, service indicator, bracket for EMV payment devices, and more.

Reversible Printing Function

A special printer driver that allows the printout to be printed from bottom to the top, so the printout is facing the user in the right direction, instead of the other way round with the traditional printing. This seemingly small touch can greatly enhance the user experience.



System-Configuration
Processor Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache; Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache
System Memory DDR4 SO-DIMM slot x 1, max. 32GB
Storage Device M.2 connector x 1 (support SATA signal only)
Intel vPro Support Yes, depends on processor
TPM Support TPM 2.0
Power Supply 12V/84W x 1 + 24V/60W x 1
OS Support Windows 10 IoT LTSC 64 bit Windows 11 IoT GAC
I/O-Expansion
Serial Port DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port USB 3.0 x 4 + USB 2.0 x 4
OTG USB N/A
Display Port HDMI x 1
LAN Port 10/100/1000 Mb x 2
Audio Internal 3W speaker x 2
Expansion Slot M.2 x 1
Display & Touch
LCD 27"
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support
Dimension
Dimension(W x D x H in mm) Floor-standing: 602 x 602 x 1800 Wall-mounted: 424 x 141 x 1050
Weight(N. W. in kg) Single-side: 50.3 Dual-side: 63.8 Wall-mounted: 22
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Standard Components
Status Indicator RGB Color LED Indicator
Proximity Sensor 1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object)
Camera Module 1MP wide angle camera
Printer Module 3" thermal printer w/auto cutter, 250 mm/sec (max.)
Optional-Components
Scanner Module 2D barcode scanner
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices (Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge)
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
NFC/RFID Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G / LTE Communication Support selected bands & countries with full SIM slot (mini-PCIe module) by request (cannot coexist with WiFi)
WiFi Module USB dongle (cannot coexist with 4G/LTE)
Noise Cancellation Microphone Module No
*product specifications and model configurations are subject to change and may vary by global region.
