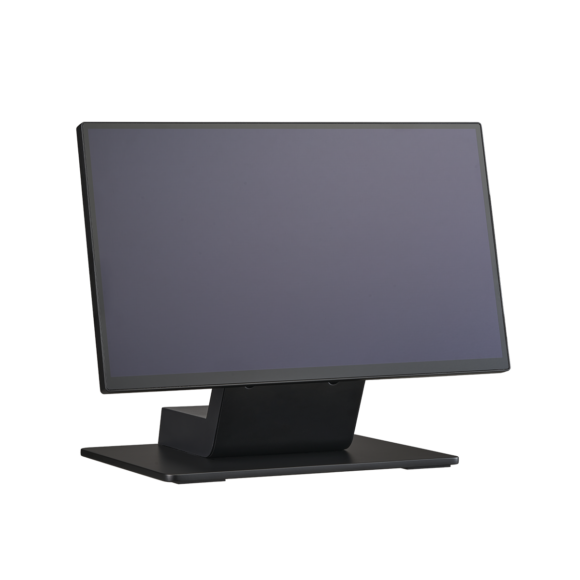

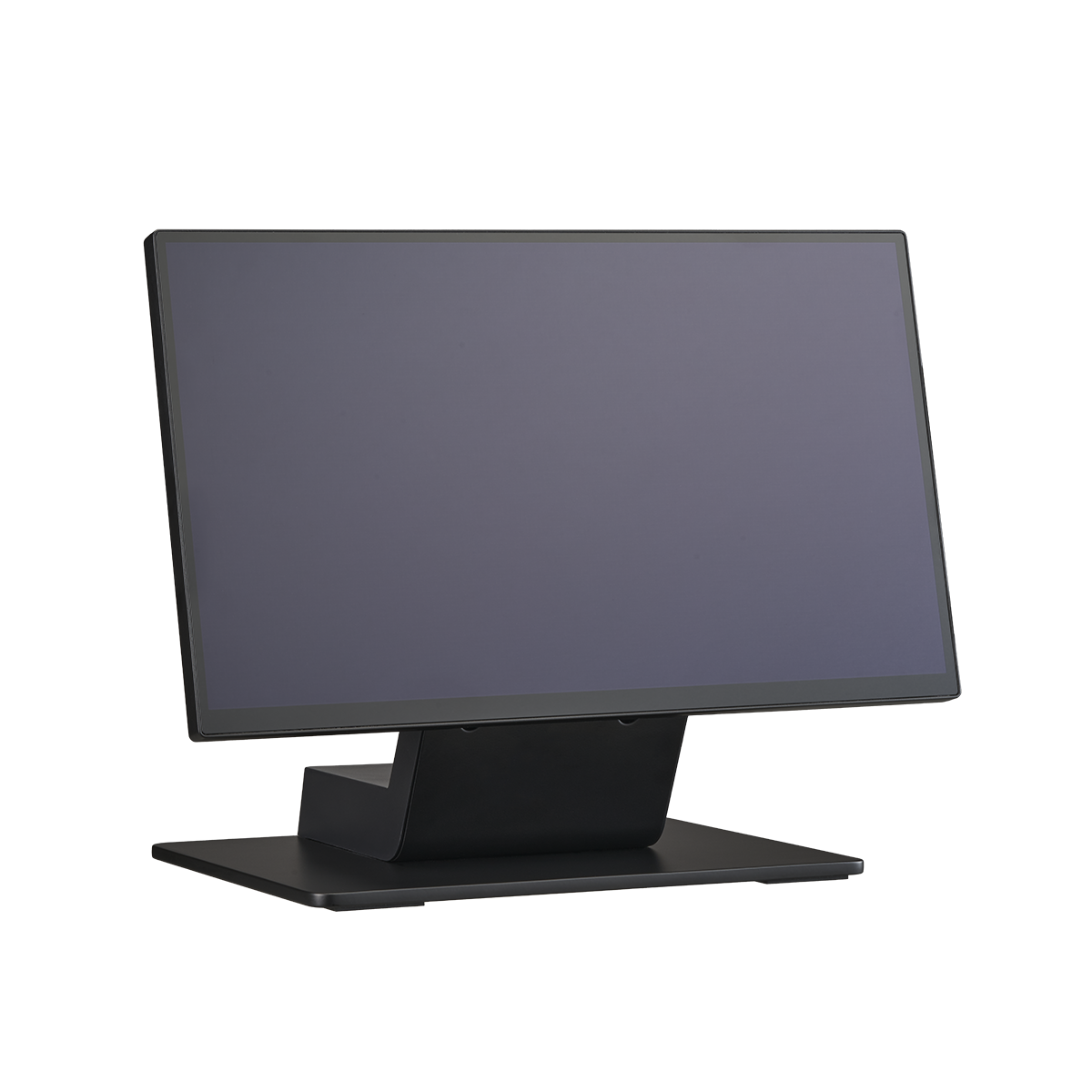

Posiflex GT-7016 15.6" POS Terminal

Overview

GT-7016 is a 15.6” POS terminal featuring an ultra-narrow 4mm bezel, maximizing display area while minimizing overall size for a sleek, space-saving design ideal for tight environments. It supports 400 nits of brightness and offers left and right side attachments, making it the most elegant and sophisticated POS terminal ever.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Ultra-Narrow Bezel oTP Display
  • Dual-Sided Attachment Support
  • 400 Nits On-cell Touch Panel for Superior Visuals
  • Improved Touch Responsiveness
  • Extended I/O Expansion
  • Flexible Folding Base

Just Screen, No Distractions

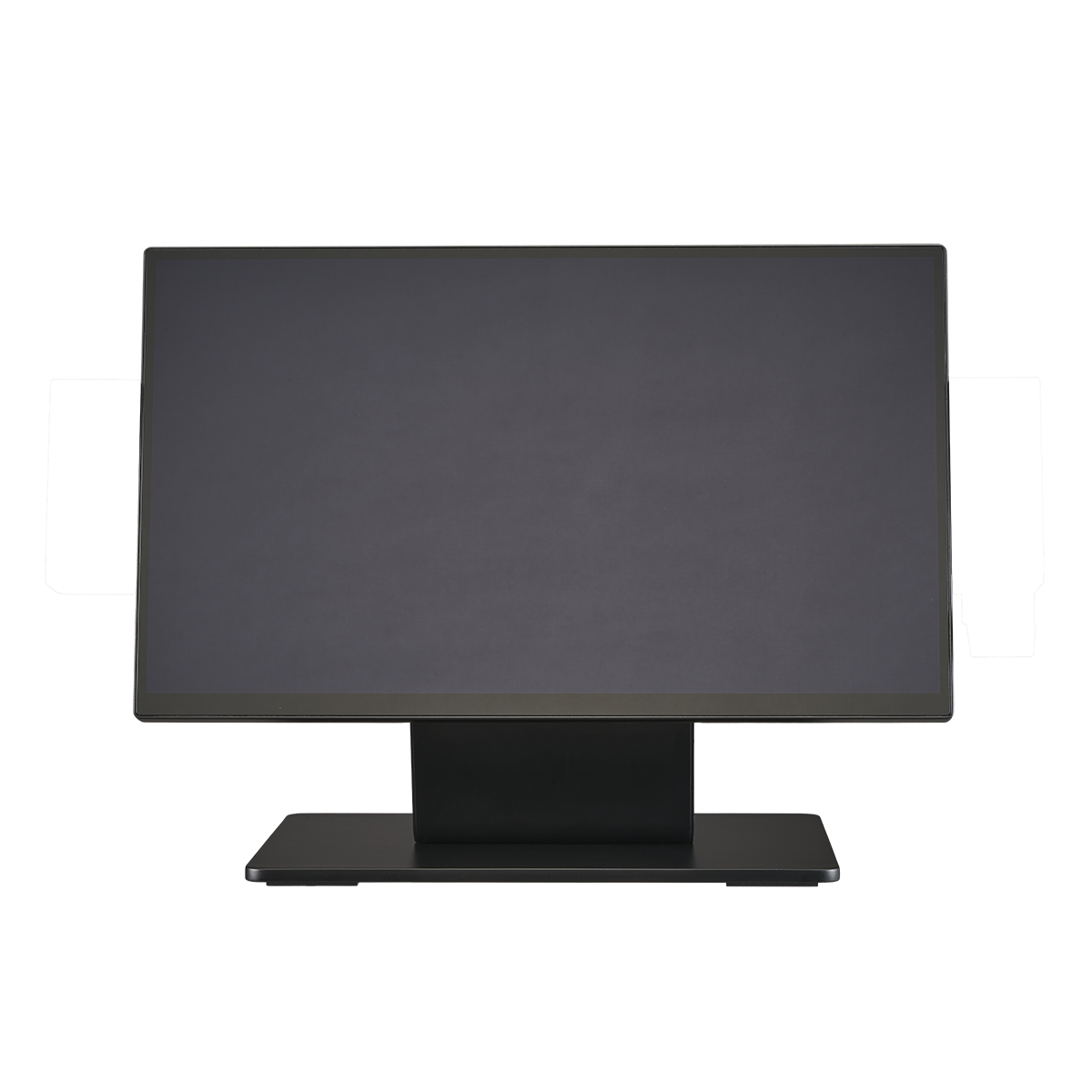

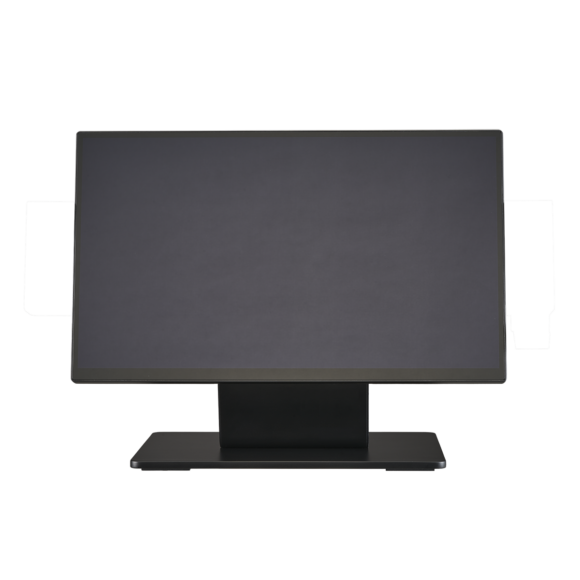

Ultra-narrow Bezel for Maximum Display Area

GT-7016 POS Terminal features an 4mm ultra-narrow bezel, maximizing display area and minimizing overall size for a sleek, space-saving design ideal for tighter environments.

Brightness Meets Clarity
400 Nits On-Cell Touch Panel for Superior Visuals

Featuring an On-cell touch panel with a brightness of 400 nits, GT-7016 POS Terminal offers high transparency and improved optical performance. This enhances visual clarity, reduces parallax and delivers a smoother user experience.

Seamless Touch, Effortless Precision
Improve Touch Responsiveness for More Seamless Interaction

GT-7016 POS terminal enhances touch responsiveness, ensuring a smoother and more intuitive user experience. By optimizing touch sensitivity and reducing lag, it enables faster and more accurate interaction, creating a seamless connection between users and technology.

Adapt to Your Application

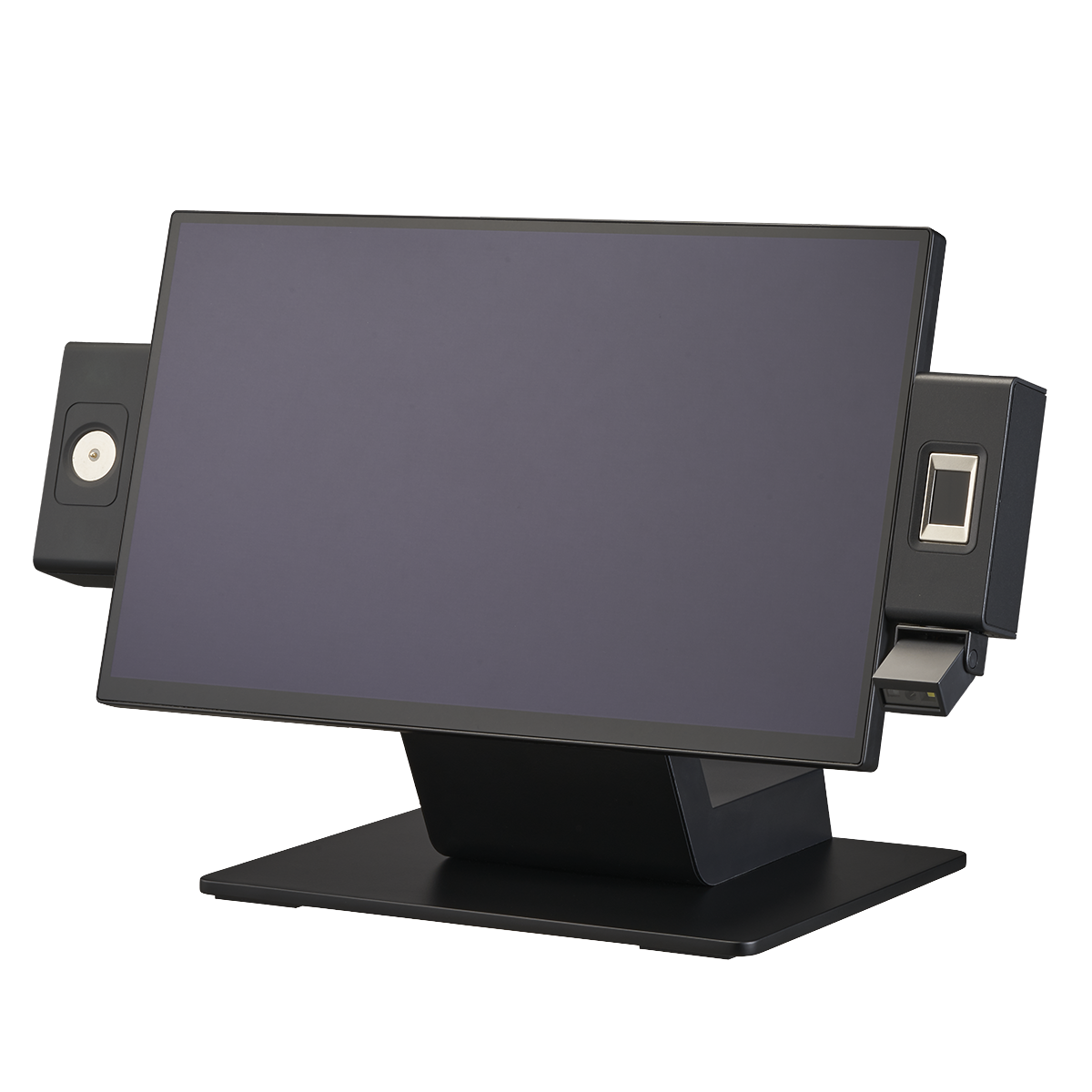

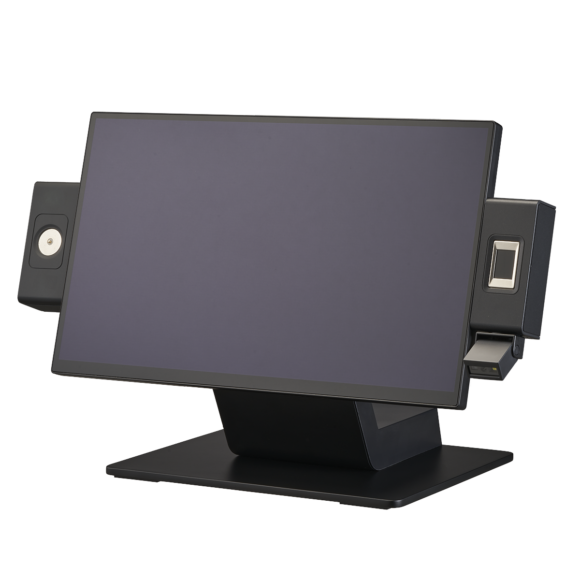

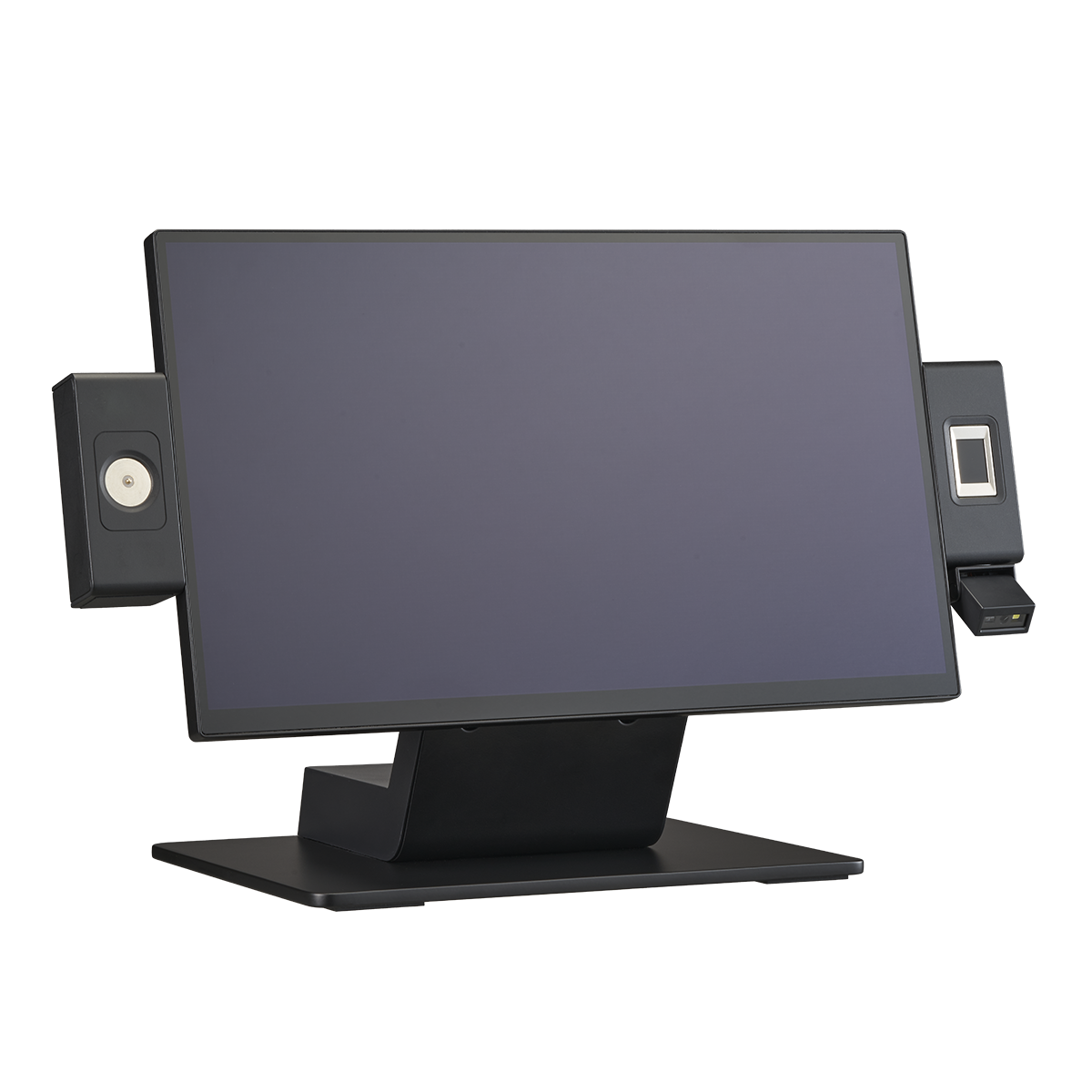

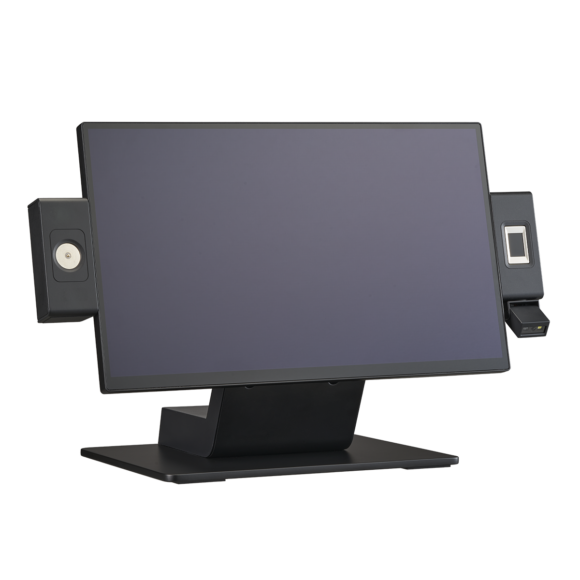

Dual-Sided Attachments for Enhanced Versatility

Support attachments on both the left and right sides, offering greater flexibility and a more comprehensive range of options, this expanded support not only accommodates additional attachments, but also allows for use by both left and right handed users, providing flexible installation to meet diverse needs.

Optimize Connectivity
Extended I/O Expansion

GT-7016 POS Terminal provides versatile expansion options tailored to your application needs, supporting additional USB, Powered USB and RJ50 ports.

Unmatched Flexibility
Rich Display Output Options for Effortless Connectivity

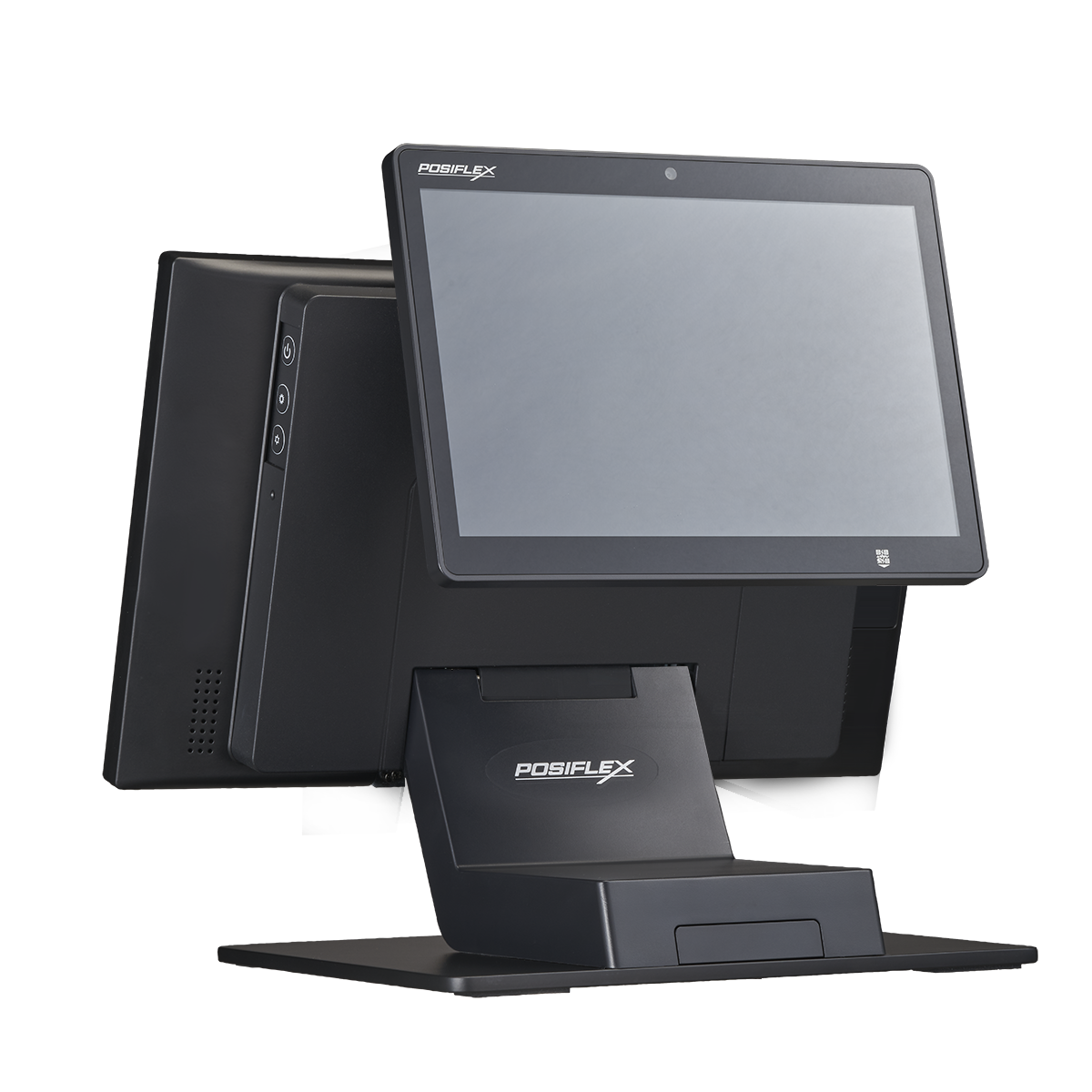

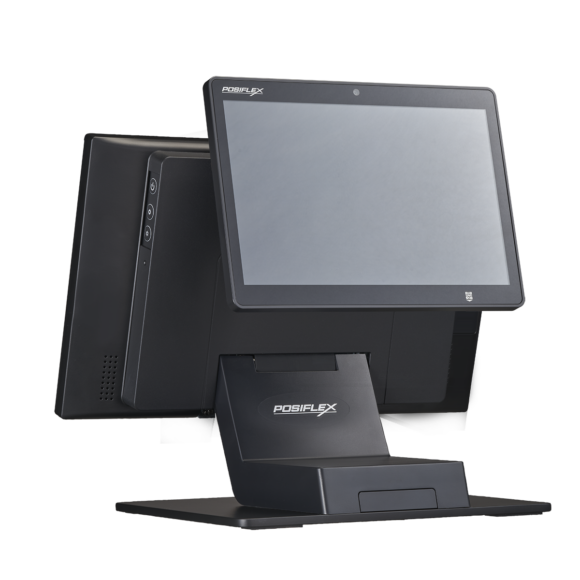

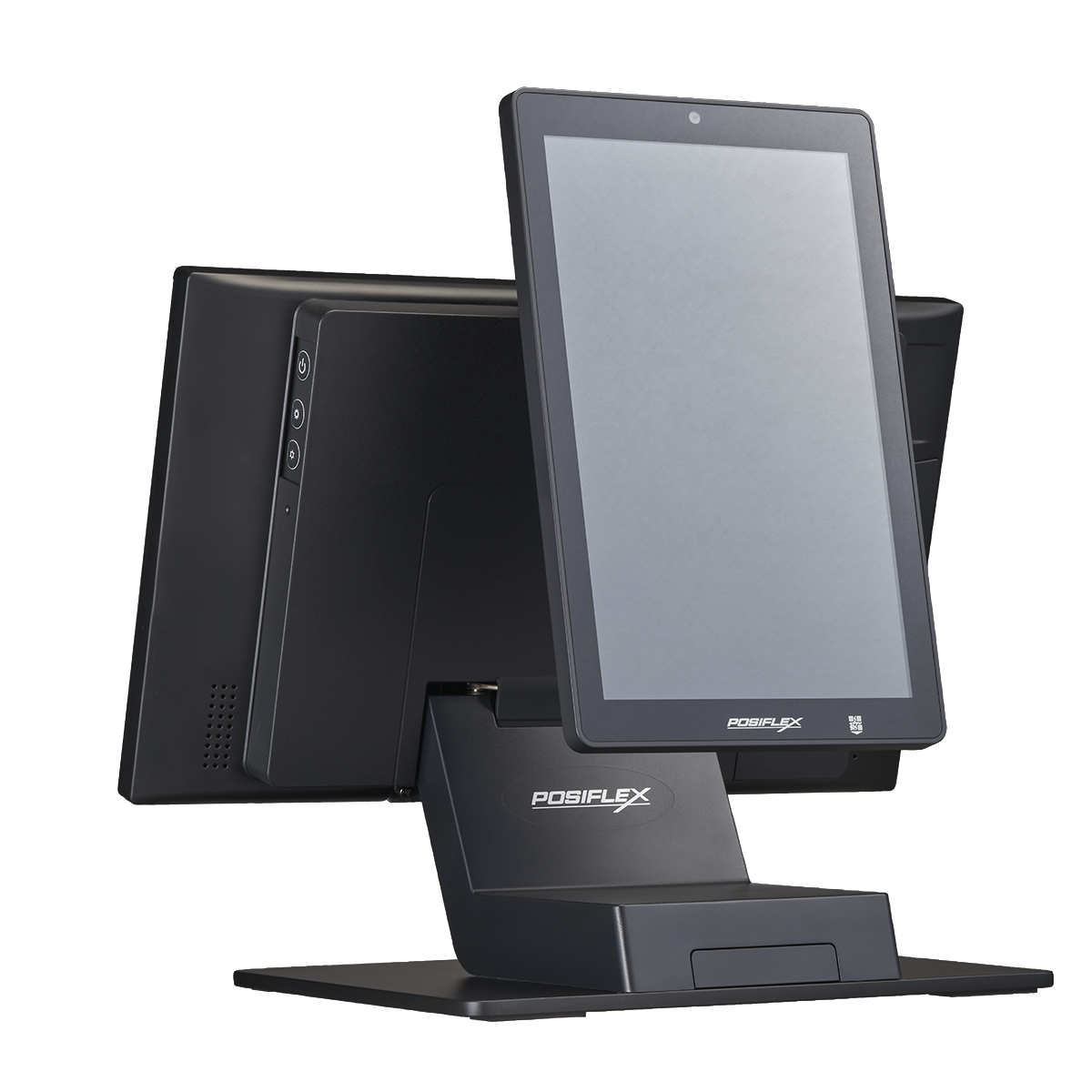

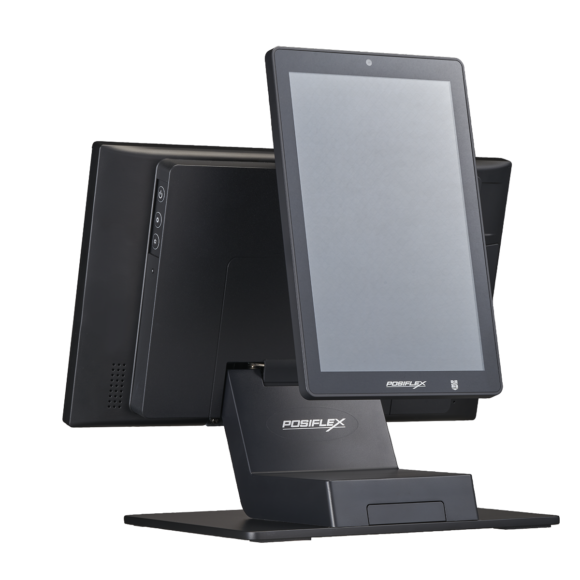

The system supports USB Type-C rich display output, offering customer greater flexibility base on their chosen models and platform, it also includes an internal USB-C connector for seamless integration with a customer-facing display.

Powerful Performance,
Built to last
Enhanced efficiency and durability for long-lasting reliability

The GT-7016 equipped with Intel’s latest processors, delivers outstanding performance to handle demanding tasks with ease, its IP-65 certified front panel protection ensures water and dust resistance, while the fan-free design enables silent operation, minimizes the risk of mechanical failure, and provides reliable, uninterrupted performance.



System-Configuration
Processor Intel TGL UP3 Core i3, Intel TGL UP3 Core i5, Intel TGL UP3 Core i7
System Memory DDR4 SO-DIMM x 2, max. 64GB
Storage Device M.2 SSD [ support both SATA and PCIe signal ] x 2
RAID Function Yes , (RAID 0/1)
Intel vPro Support Yes, Depends on CPU installed
TPM TPM 2.0
Power Supply 24V/120W
OS Support Windows 10 IoT LTSC / Windows 11 IoT LTSC
Display & Touch
LCD 15.6” oTP LCD (Typ. 400 nits)
Resolution 1920 x 1080
Touch On-cell touch panel with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port RJ50 x 1 (on I/O plate), 5V/12V support
Standard USB Port USB 3.0 x 4 (on Side), USB 3.0 x 2 (on I/O plate)
PoweredUSB Port PUSB 12V x 1+ PUSB 24V x 1 (on I/O plate)
LAN Port 10/100/1000 Mb x 1
Display Port Internal USB-C x 1 for 2nd display only USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor
CR Port CR port x 1, control 2 x CR via optional Y-cable, support 24V CR
Audio Internal 2W speaker x 2
Expansion Slot M.2 2230 for Wi-Fi/BT x 1
USB-C Port USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor
Extend Storage N/A
Dimension
Dimension (W x D x H in mm) 356.3 x 207 x 277.4
Weight (N. W. in kg) 3.726 kg
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Attachment Options
Customer Facing Display LM/TM-5011LC、LM/TM-5011PC、PD-2611UE
External I/O Module GT-470 (PUSB 12v x 2) GT-570 (RJ50 x 2 + USB 2.0 x 4) GT-580 (RJ50 x 2 + USB 3.0 x 4)
Side Attachment RA-101、RA-103、RA-104、RA-105、RA-106、RA-301、RA-311、RA-304、RA-305、RA-307
