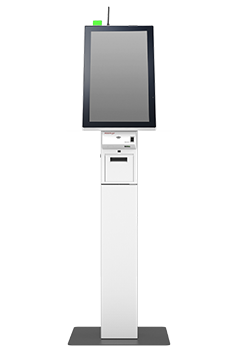

Posiflex EK-1650 15.6" Self Service Kiosk

Overview

Posiflex EK-1650 15.6" Self Service Kiosk. With a sleek and slim deign, EK-1600 Series is a 15.6”-display kiosk with a compact footprint that is suitable for retail stores. Part of the Posiflex EK Series Self Service Kiosks. Drivers and utilities can be found here.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15.6" True-flat PCAP touch
  • Intel 7th Generation Kaby Lake U Core i3/i5
  • 64Gb SSD as standard
  • Up to 16GB RAM
  • Status Indicator
  • Proximity Sensor
  • Camera
  • Printer

Adjustable to portrait or landscape mode, and with varieties of self-service transaction peripherals, EK-1600 Series serves as an extension of employees. It can handle mundane tasks while allowing the employee to focus on providing better customer service.

Stylish and Intelligent Design
With its sleek, intelligent and attractive design, EK-2100 Series not only attracts customers’ attention, but also delivers uncompromised performance.

Reinventing Customer Experience
With display options available in portrait or landscape mode, EK-2100 Series meets the demands of your business while reinventing the perfect customer experience.

Flexible Configurations
Offering choices of floor-standing or counter-top, EK-2100 Series is suitable for any self-service application and gives your business a competitive advantage.

Adaptable and Customizable
Equipped with a wide array of choices of peripherals including NFC/RFID reader, 2D scanner, and a bracket for EMV payment devices, EK-2100 Series is able to fulfill with self-service tasks.

Specification
Processor Intel 7th Generation Kaby Lake U Core i3/i5
System Memory DDR4 SO-DIMM slot x 1, max. 16 GB
Storage Device SATA SSD x 1
Intel vPro Support Core i3: N/A Core i5: Yes (for option)
TPM Support Yes (for option)
Power Supply 12V/60W x 1 + 24V/60W x 1
OS Support Windows 10 IoT 64 bit
Serial Port 3, DB9 x 1 + RJ50 x 2
Standard USB Port 8, USB 3.0 x 1 + USB 2.0 x 7
OTG USB N/A
Display Port HDMI x1
LAN Port 10/100/1000 Mb x 2
Audio Internal 3W speaker x 2
Internal Expansion Slot M.2 x 1
Display & Touch
LCD 15.6"
Resolution 1920 x 1080
Touch True-flat PCAP touch with multi-touch support
Physical Dimension
Dimension (W x D x H in mm) Countertop version (Portrait): 395 x 395 x 646, Floorstanding version (Portrait): 500 x 500 x 1420
Weight (N. W. in kg) Countertop version: 18.2, Floorstanding version: 30.4
Operating Condition 0°C ~ 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Standard Components
Status Indicator RGB Color LED Indicator (for portrait mode only)
Proximity Sensor Range from 60 cm to 100 cm
Camera 1MP wide angle camera
Printer 3" thermal printer w/auto cutter, 200 mm/sec (max.)
Optional Components
WiFi M.2 WiFi/BT module
Scanner 2D barcode scanner
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices
NFC/RFID Reader Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-180
4G LTE Support selected bands & countries with full SIM slot (mini-PCIe module) by request
** The product information and specifications are subject to change without prior notice.
