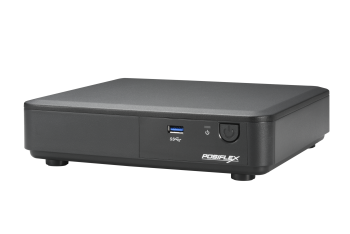

Posiflex BP-2000 POS Box


The Posiflex BP-2000 POS Box is the latest fan-free Box built for Industrial standard, fused with wide range of Serial ports and USB ports, BP Series delivery an uncompromising performance and scalability to the Industrial Industry. The small footprint of the POS Box along with its VESA mount capabilities allows for inconspicuous installation in a wide variety of applications.The BP-2000 is suitable for a wide range of environments and applications. Why not bundle with a touch monitor for a complete solution. Drivers and utilities can be found here.

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • Intel J1900, quad core
  • up to 8Gb RAM
  • fan-free Box
  • built for Industrial standard

Support Serial Port RS-232/422/485, USB 2.0 and USB 3.0, BP Series offer incredible productivity and flexibility for any industrial environment.

Relentless Awareness
Equip with Tamper Switch, BP Series signal out if the devices encounter abnormal action, to keep the owner always on track.

System Configuration
Processor Intel J1900, quad core, 2M cache, up to 2.42 GHz
System Memory 1 x DDR3L SO-DRIMM, max 8 GB
Storage Device 1 x SATA port
Power Supply 12V / 40W
OS support Windows 7, POSReady 7, Windows 8.1 Embedded Industry, Windows 10 IoT
I/O Expansion
Serial Port 3 x RS-232 (DB9) + 1 x RS-232/422/485, 5V/12V support on all COM ports, RS-232/422/485 jumper selectable
Standard USB Port 1 x USB 3.0 + 5 x USB 2.0
LAN Port 1 x GigaLAN
Display Port 1 x VGA + 1 x HDMI + 1 x DP
Audio 1 x Mic-in + 1 x Line-out
Expansion Slot 1 x M.2 for WIFI
Built-in Option
Built-in WiFi Optional M.2 WiFi/BT module
Tamper Switch Optional
Physical Dimension
Dimension (W x D x H in mm) 220 x 202 x 56
Weight (N. W. in kg) 1.12
Operating Condition 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD); 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition -20°C - 70°C, 10%RH - 90%RH
* The product information and specifications are subject to change without prior notice.
