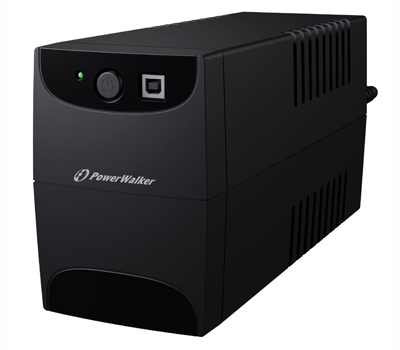

650VA Line-interactive UPS

Overview

The 650VA UPS (uninterruptible power source) is a battery backup, that provides emergency power to a load when the input power source, typically mains power, fails.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 650VA Line-interactive UPS
  • 4 x IEC outlets, RJ-11 Surge Protection
  • USB Connection for monitoring
  • LED Indicator for status
  • Cold start built-in boost and buck AVR function

It provides comprehensive protection and high power density in a small and economic package. This UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ-11 surge protection, and green power function for energy saving. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connect EPOS equipment and is perfect for any business or small office application.

This UPS features 4 x IEC outlets. It has a smart charger to shorten charging time, built-in boost and buck AVR, simulated sine wave, auto restart while AC is recovering, off-mode charging, cold start function, USB communication port and RJ-11 surge protection, green function for energy saving.

Product Features VI 650 IEC UPS
Capacity 650VA/360W
Input Voltage 220/230/240VAC
Input Voltage Range 170-280VAC ±7%
Output Voltage 220/230/240VAC
Voltage Regulation (Battery Mode) ± 10%
Output Frequency 50Hz or 60Hz
Frequency Regulation (Battery Mode) ± 1Hz
Output Waveform Simulated Sine Wave
Battery Type 12V / 7Ah
Battery Quantity 1x
Recharge Time 6h for 90% after complete discharge
Transfer Time Typical 4-8 ms
LED Indicators AC Mode Green LED lighting
LED Indicators Battery Mode Green LED lighting
Audio Indicators Battery Mode Beep every 10 sec
Audio Indicators Low Battery Beep every second
Audio Indicators Fault Continuous Beep
Audio Indicators Overload Beep every 0.5 sec
Interface USB
Outlets 4x IEC
Surge Protection RJ-11 (in/out)
Software WinPower
Dimensions 279 x 100 x 143 mm
Colour Black
Weight 4.4 kg
Model Code PWUPS-650
Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Full Protection Discharge Prevention, Deep Discharger, Overcharge, Overload
