ForPOS Quantum X Epos Terminal

Overview

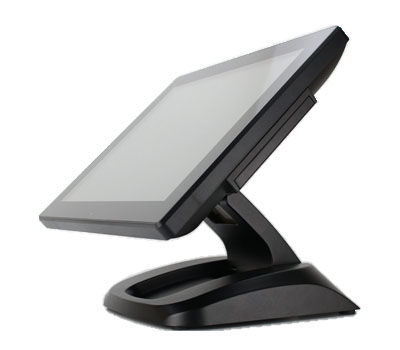

Quantum X, the next generation bezel free touchscreen EPOS system. One of the industry’s fastest POS terminals featuring the latest Quad Core J1900 or i3-4330TE, Fanless technology. In today’s current hospitality and retail markets where time is money the Quantum is the desirable choice for all. Featuring an elegant, thin and compact design in a robust heavy duty aluminium cast housing

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

  • 15" true-flat projected capacitive touch screen
  • Intel® Bay Trail- D J1900, quad core, 2.0GHz, Fanless
  • 500Gb HDD or 64Gb SSD as standard
  • Up to 8Gb RAM
  • IP66 Rated
  • Fully adjustable stand
  • Wall mountable (VESA)

With the latest Fanless technology and innovative design the Quantum X incorporates a heat sink to maintain optimum working temperature and with no need for vents there is no chance of any liquid spillage, driving the unit to a longer life span and a lower cost of ownership, with no moving parts.

The high resolution display uses the latest screen technology to enhance the user experience. Bezel free touchscreens prevent ingress of dirt and liquid, rated to IP66 (waterproof). Projected Capacitive Touchscreens as standard allows for 10 point multi-touch operation.

A fully adjustable stand giving the operator’s choice of angle for their comfort. The stand can be positioned completely flat or removed entirely allowing the Quantum X to be wall mounted using a VESA bracket.

Optional Accessories:
MSR only
MSR/ iButton reader
MSR/ Biometric reader
RFID reader
9.7” LCD customer display
2 line VFD customer display (blue)

Specification Quantum X
System Memory DDR3L, SO-DIMM x 2, 2Gb (Max. 8Gb)
Storage 320Gb 2.5”x 1, or SSD x 1 (Optional)
Display 15” TFT LED Panel
Resolution 1024 x 768
Touchscreen True-Flat Projected Capacitive Touch
Tilt Angle 0 ~ 120 degree
External I/O Port (Rear) 6 x USB 2.0, 3 x Serial Port (RJ45); (COM1~3: 0/5/12V by BIOS), 1 x VGA (Power enabled by BIOS; +12V), 1 x Cash Drawer Port (RJ11; +12V), 1 x LAN (10/100/1000), 1 x Mic-in/Speaker-out (Combo jack), 1 x DC In 1 x Power Switch
Speaker 2 x 2W Speaker (Optional)
Power External power adaptor, 60W/12V (Lock type)
EMC Safety CE, FCC Class A
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 20% - 85% RH non-condensing
Storage Humidity 20% - 85% RH non-condensing
O/S Support Windows® 7 Professional, Windows® Embedded POS Ready 7, Windows® 8.1, Linux
Wall Mount VESA 100 x 100mm
